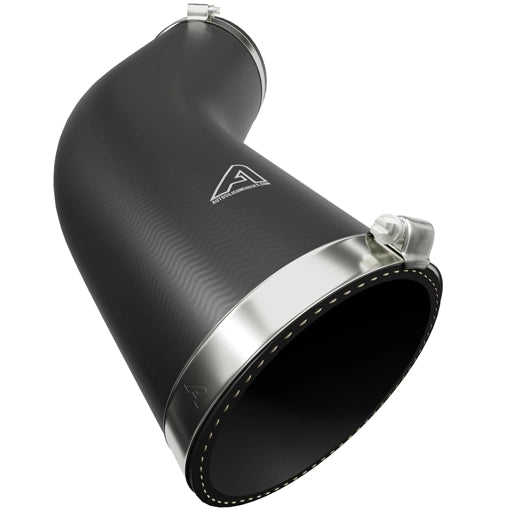

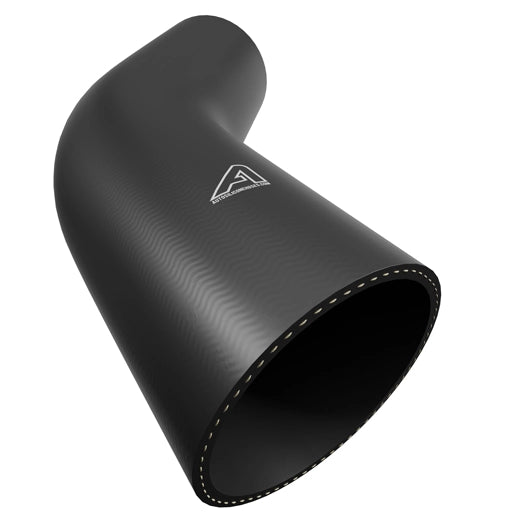

Rubber 45 Degree Hose

Rubber 45° Elbow from AutoSiliconeHoses is designed to provide a strong, flexible connection for fluid and air transfer systems. Constructed from smooth heat-resistant EPDM and reinforced with high tensile fiber yarn, it delivers durability and performance under demanding conditions. With excellent resistance to heat, vibration, and pressure, the 45° elbow ensures reliable operation in automotive, industrial, and agricultural applications.

Key Features:

• Material: Heat-resistant EPDM rubber.

• Reinforcement: High tensile fiber yarn.

• Internal Diameter Range: 9.5 mm to 76 mm.

• Working Pressure: 10 Bar.

• Burst Pressure: 30 Bar.

• Temperature Range: -30°C to +125°C (peak +145°C).

• Standard: SAE J20R3 compliant.

• Leg Length: 150 mm each side.

The rubber 45° elbow provides a flexible angled connection for coolant, water, and air transfer. Its reinforced construction maintains strength and shape under pressure, while the smooth EPDM finish resists degradation from heat, ozone, and environmental factors. With a wide diameter range, it is suitable for both light-duty and heavy-duty installations.

Applications include automotive cooling systems, industrial fluid handling, agricultural machinery, and general air or water transfer. AutoSiliconeHoses supplies a complete size range, ensuring compatibility with varied systems that require durable and heat-resistant 45° elbows.
