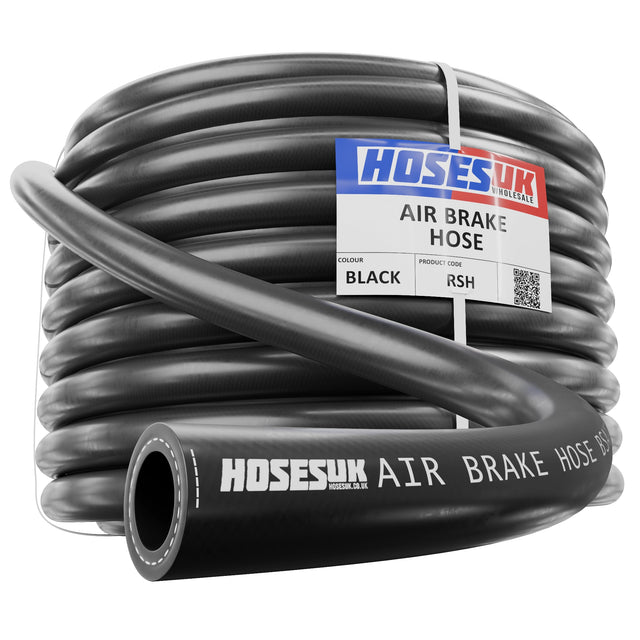

Rubber Air Brake Hose

Rubber Air Brake Hose is a heavy-duty, reinforced hose designed for air brake systems in commercial vehicles, trailers, and industrial pneumatic applications. Manufactured by HosesUK, the hose is built with a black smooth synthetic rubber inner tube, reinforced with high-tensile braided fibre, and protected by an ozone-resistant synthetic rubber outer layer. This robust construction ensures safe, stable, and long-lasting performance under the pressures and conditions associated with braking systems. Rated to SAE J1402 and BSAU110 standards, the hose is engineered for reliability in critical air brake applications. It operates between -40°C and +93°C (with peaks to +100°C), maintaining flexibility and performance across a wide range of environments.

Key Features:

• Material: Synthetic rubber inner and ozone-resistant synthetic rubber outer cover.

• Reinforcement: High tensile braided fibre for strength and stability.

• Internal Diameter Range: 9.5 mm and 12.5 mm.

• Wall Thickness: 4.8 mm (9.5 mm ID), 5.3 mm (12.5 mm ID).

• Working Pressure: 16 bar.

• Burst Pressure: 47 bar minimum.

• Bending Radius: 114 mm (9.5 mm ID) to 138 mm (12.5 mm ID).

• Temperature Range: -40°C to +93°C; peak +100°C.

• Standard: SAE J1402 / BSAU110 compliant.

• Colour: Black smooth outer finish.

The Rubber Air Brake Hose combines strength, flexibility, and reliability to meet the rigorous demands of braking systems. Its high-tensile braided reinforcement provides stability under pressure, preventing expansion and ensuring consistent airflow to brake components. The ozone-resistant outer cover extends hose life by protecting against cracking and environmental degradation. With a burst pressure almost three times its working rating, this hose provides a significant safety margin for operators and engineers. Its low-temperature flexibility ensures reliable performance in winter conditions, while its synthetic rubber formulation withstands continuous exposure to heat, vibration, and pressure cycling.

Applications include air brake systems in heavy goods vehicles, trailers, buses, and industrial equipment, as well as other pneumatic systems requiring robust and pressure-rated hosing. Distributed under the HosesUK brand, the Rubber Air Brake Hose is a trusted solution for fleet operators, maintenance engineers, and manufacturers who require hoses that meet strict safety and performance standards in demanding air brake and pneumatic service environments.
