PTFE Stainless Steel Braided Hose

The AN6 PTFE Lined Stainless Steel Braided Hose is a high-performance hose designed for precision fluid transfer in automotive, motorsport, and industrial systems. Built with a seamless smooth bore PTFE liner, it provides excellent resistance to fuels, oils, coolants, and corrosive chemicals while maintaining unrestricted flow under pressure. Reinforced with high-tensile SS304 stainless steel wire braids, the hose ensures outstanding mechanical strength, pressure stability, and long service life in demanding environments. Operating between -56°C and +204°C, with a peak temperature of +210°C, it delivers dependable performance for both standard and high-temperature applications.

Key Features:

• Inner Tube: Seamless smooth PTFE liner for maximum chemical resistance and flow efficiency.

• Reinforcement: SS304 stainless steel wire braid for strength and pressure stability.

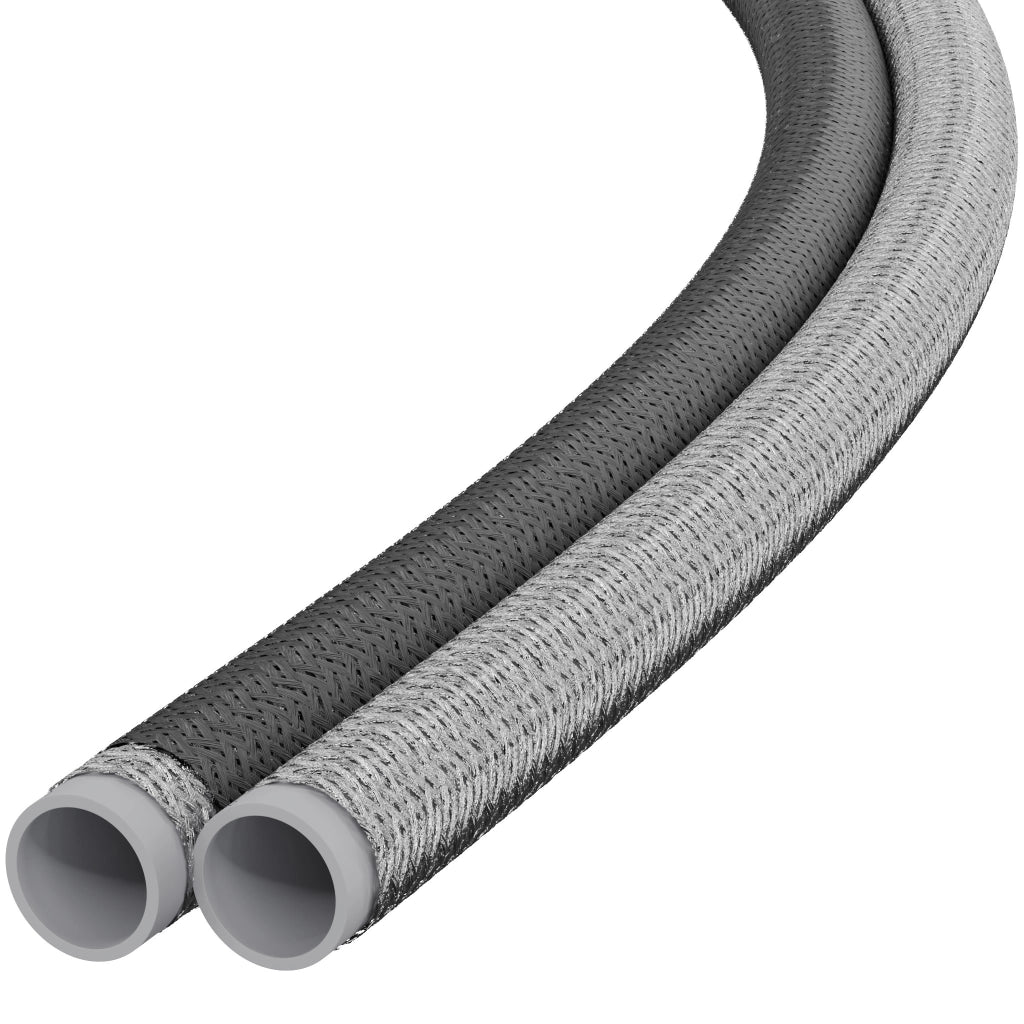

• Outer Options:

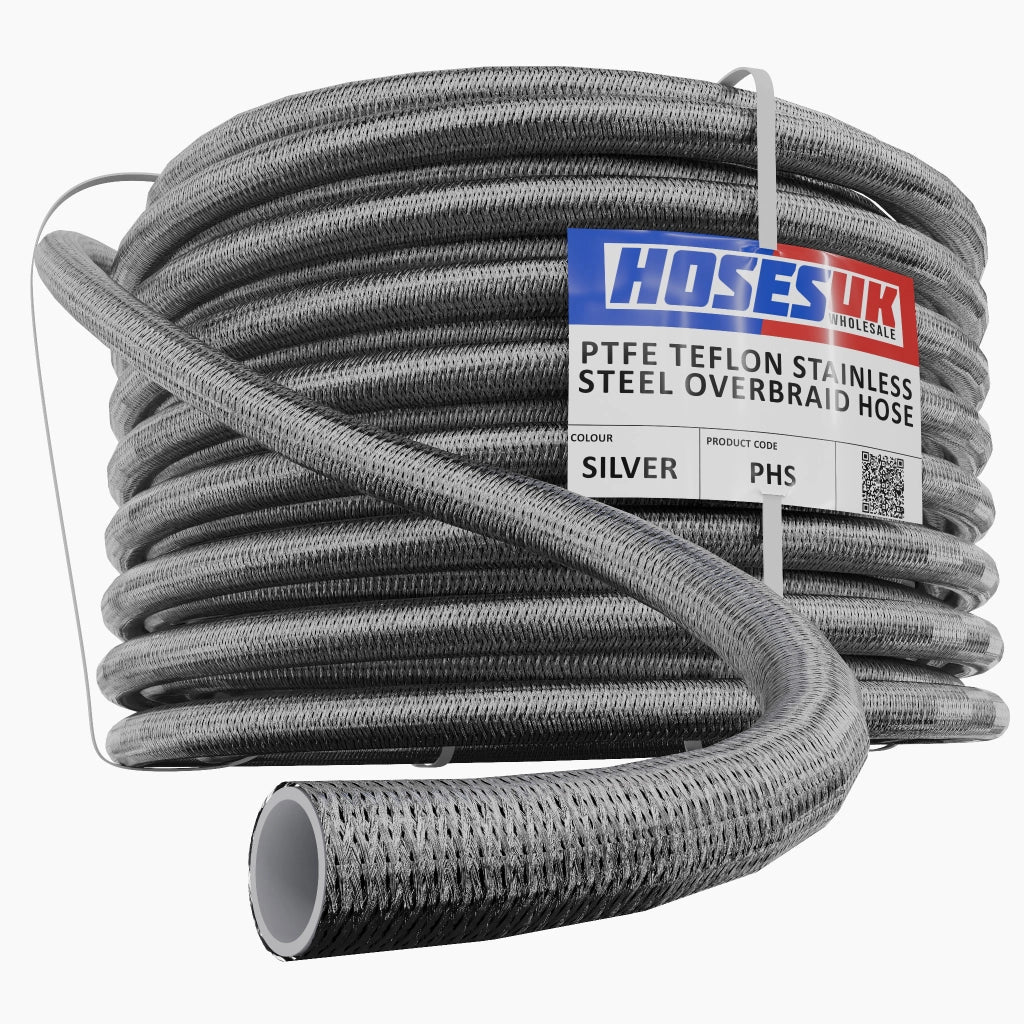

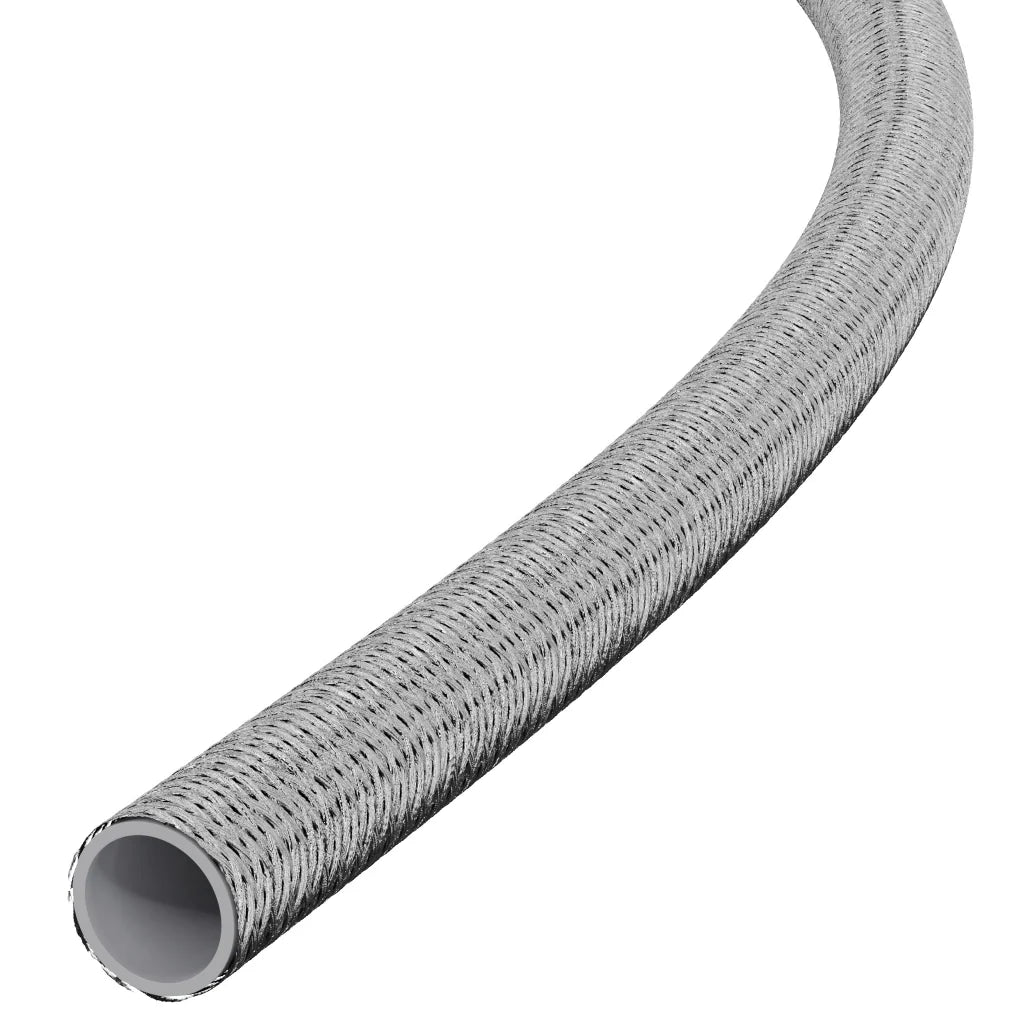

  • Full Stainless Steel Overbraid: Maximum abrasion resistance and tensile strength.

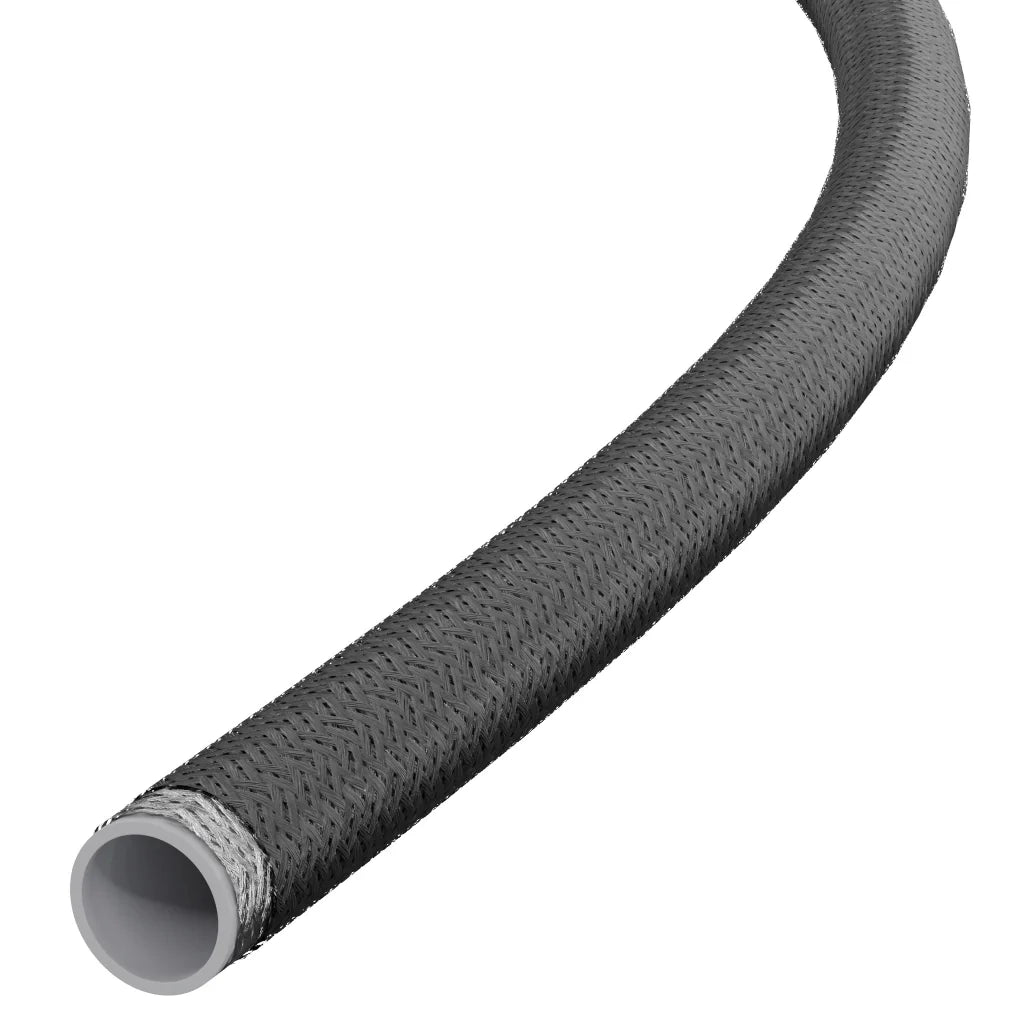

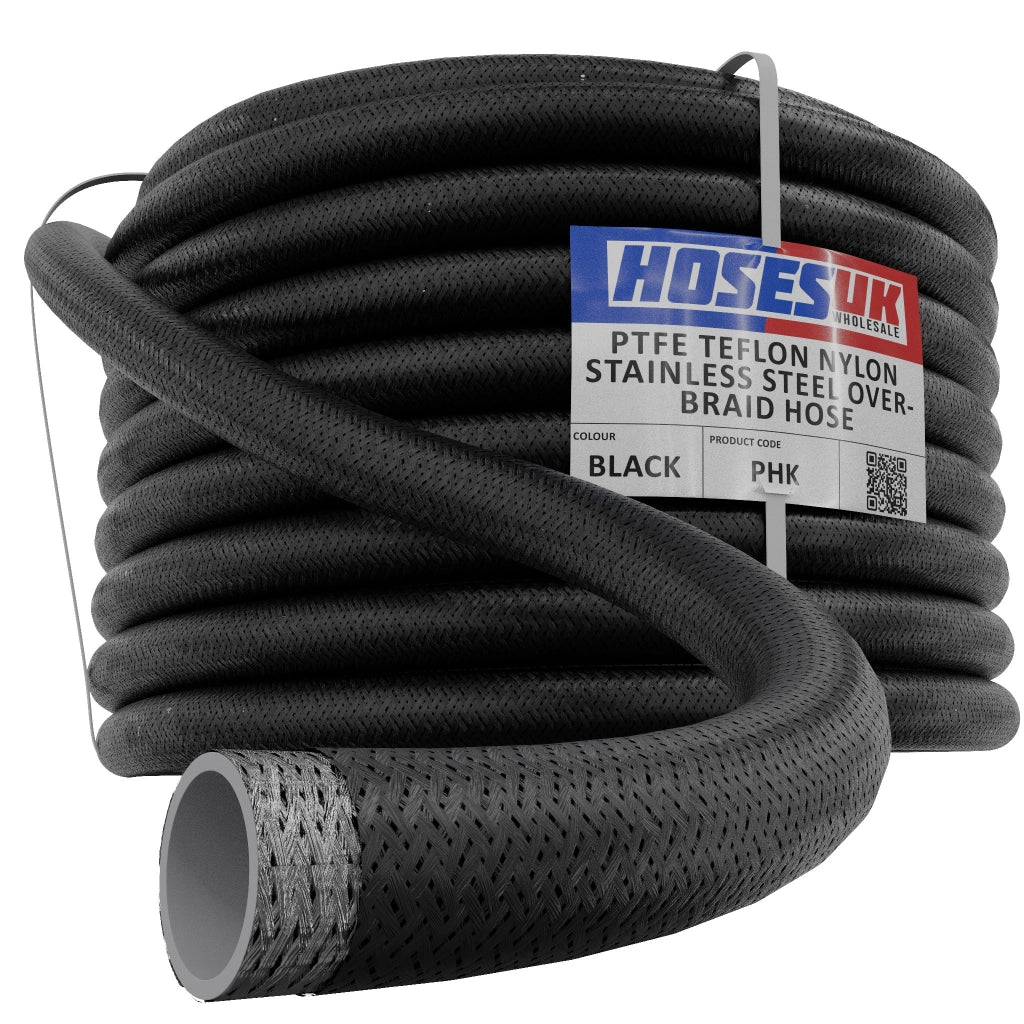

  • Black Nylon Overbraid: Added flexibility and protection with a clean, professional finish.

• Operating Temperature: -56°C to +204°C (peak +210°C).

• Internal Diameter: 8 mm (AN6 specification).

• Working Pressure: Up to 80 bar (varies by braid type).

• Burst Pressure: Up to 240 bar.

• Bending Radius: 56 mm minimum.

• Construction Standard: High-quality SS304 and PTFE manufactured to industrial and motorsport specifications.

The AN6 PTFE braided hose range provides the perfect balance between flexibility, appearance, and performance. The full stainless steel version delivers maximum durability and protection for high-pressure systems such as brake, clutch, and oil cooler lines, while the nylon-overbraid option enhances flexibility and reduces surface wear for easier routing in tight engine bays. Both configurations maintain stable pressure and flow under vibration and thermal stress, ensuring safe operation in both road and race conditions.

Applications include fuel delivery lines, oil cooler feeds, power steering systems, coolant transfer, hydraulic controls, and general fluid management in motorsport and industrial environments. Resistant to abrasion, corrosion, and chemical attack, the AN6 PTFE Lined Stainless Steel Braided Hose provides a professional-grade solution for critical systems where performance, safety, and reliability are essential.
