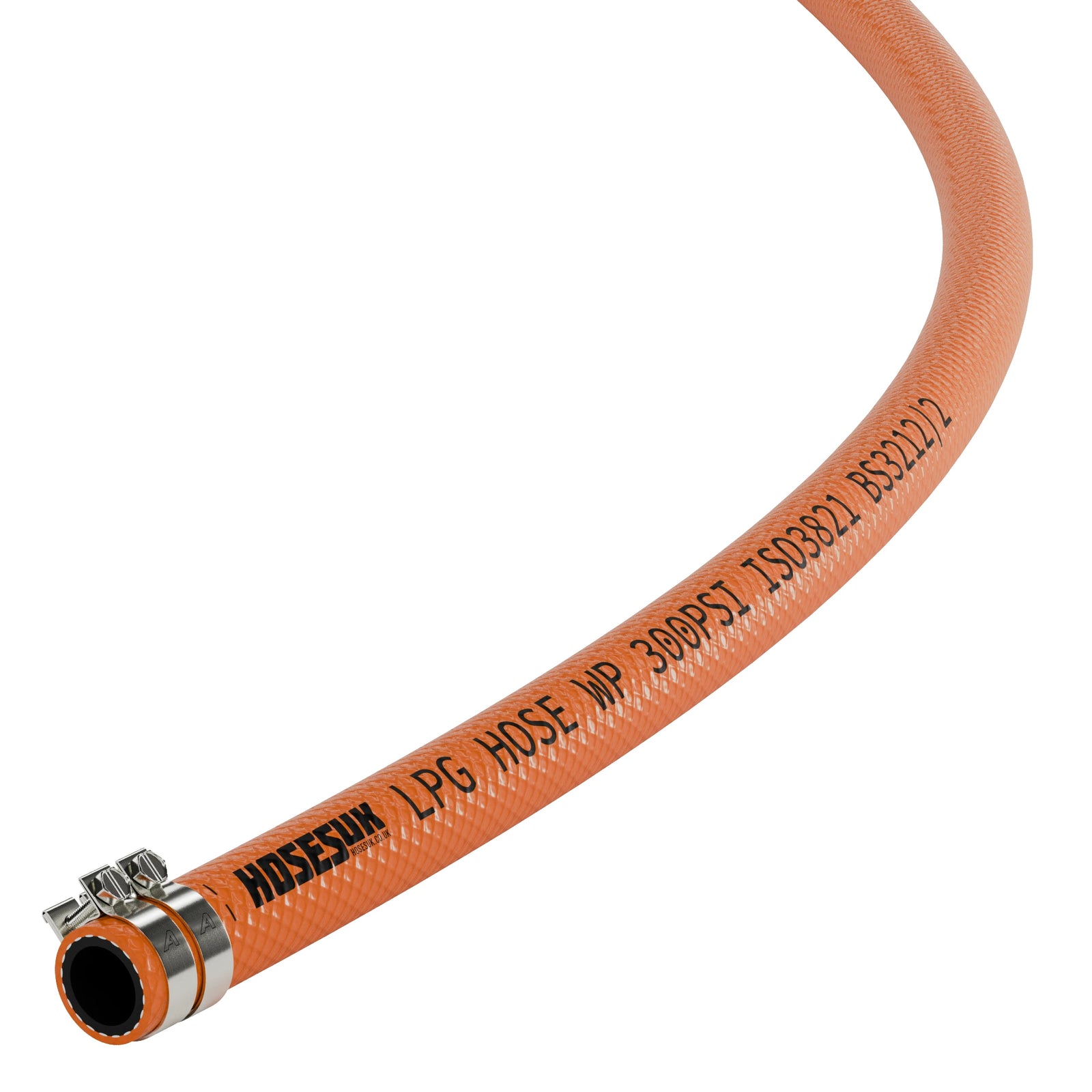

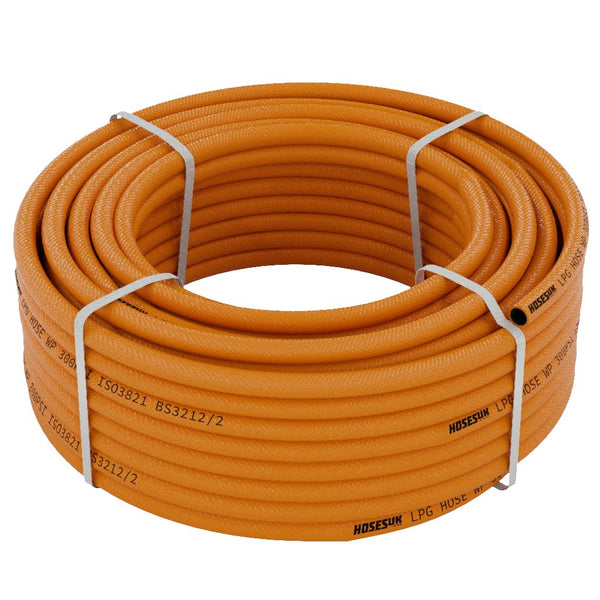

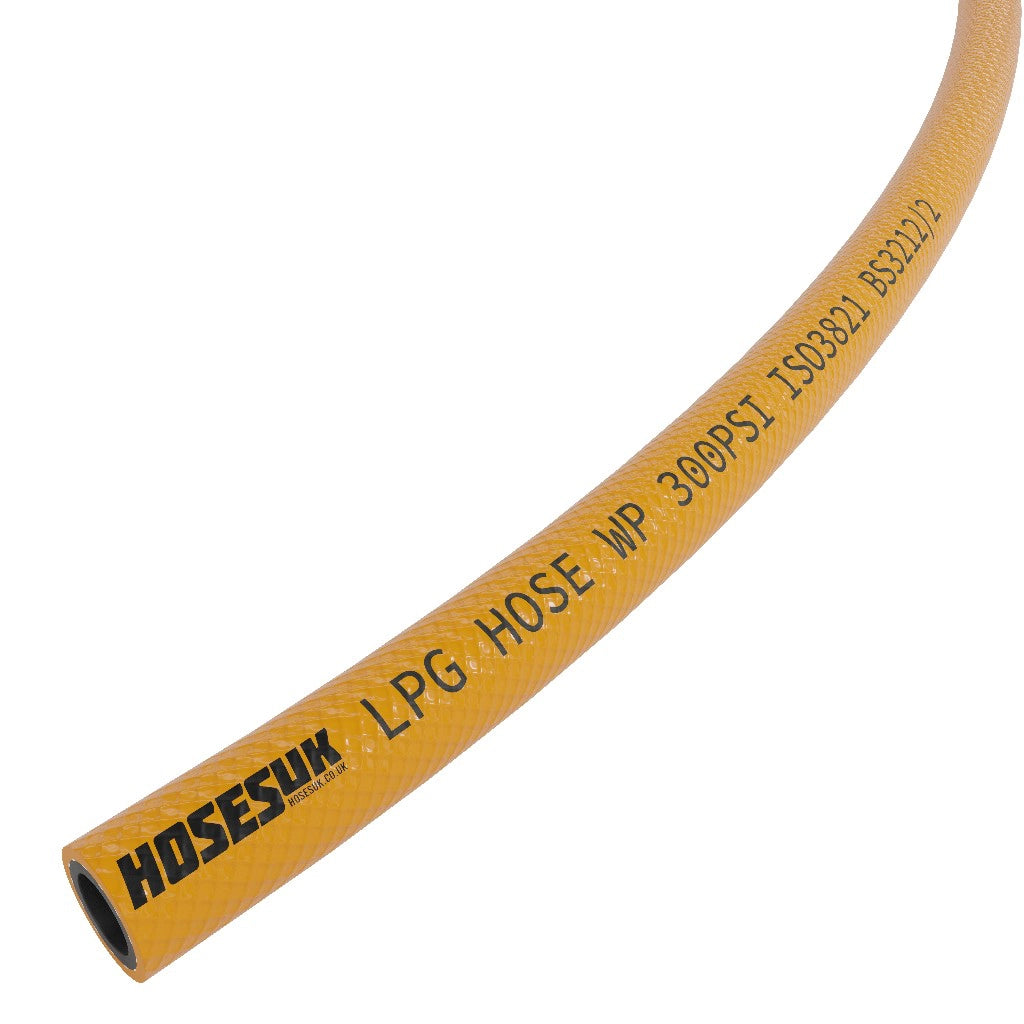

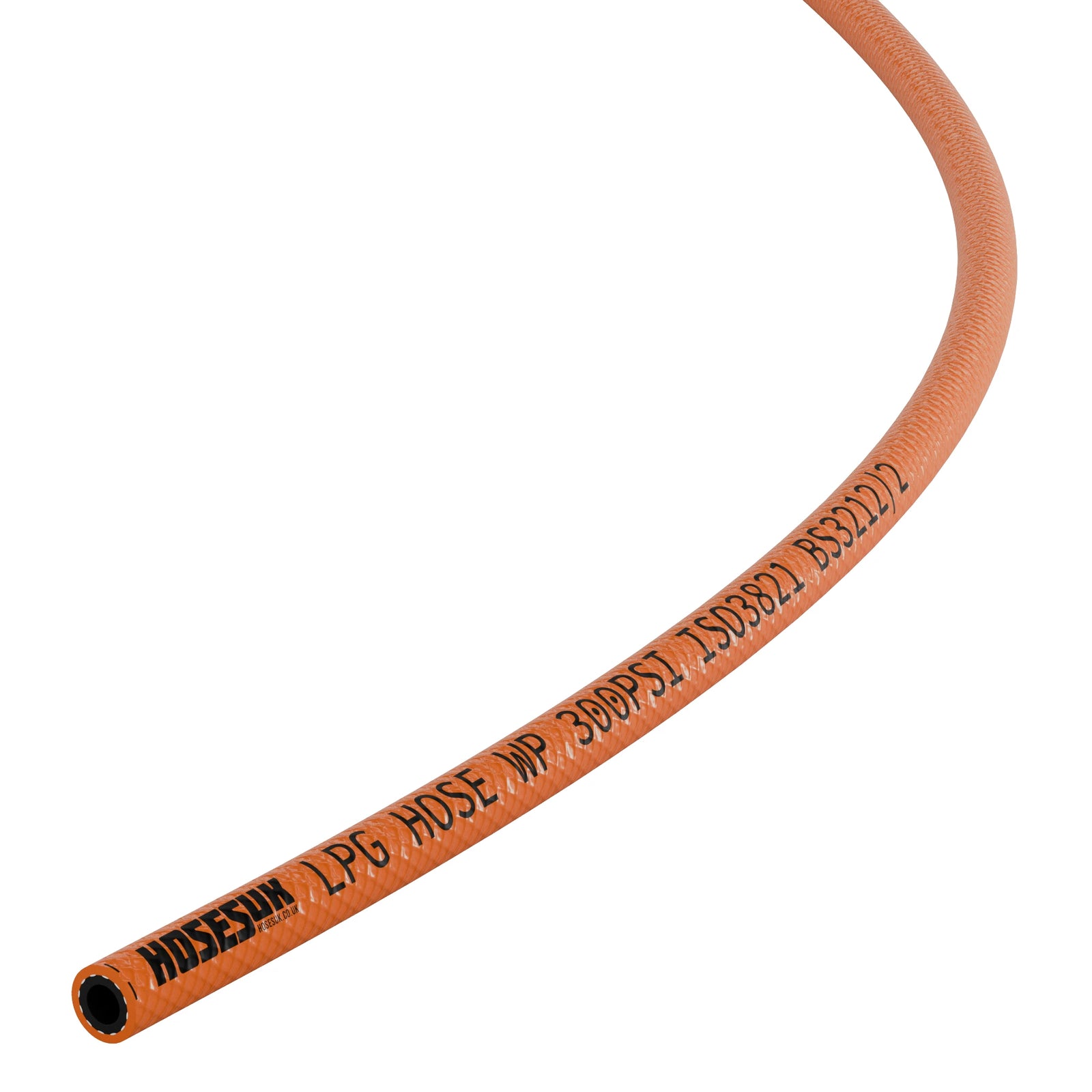

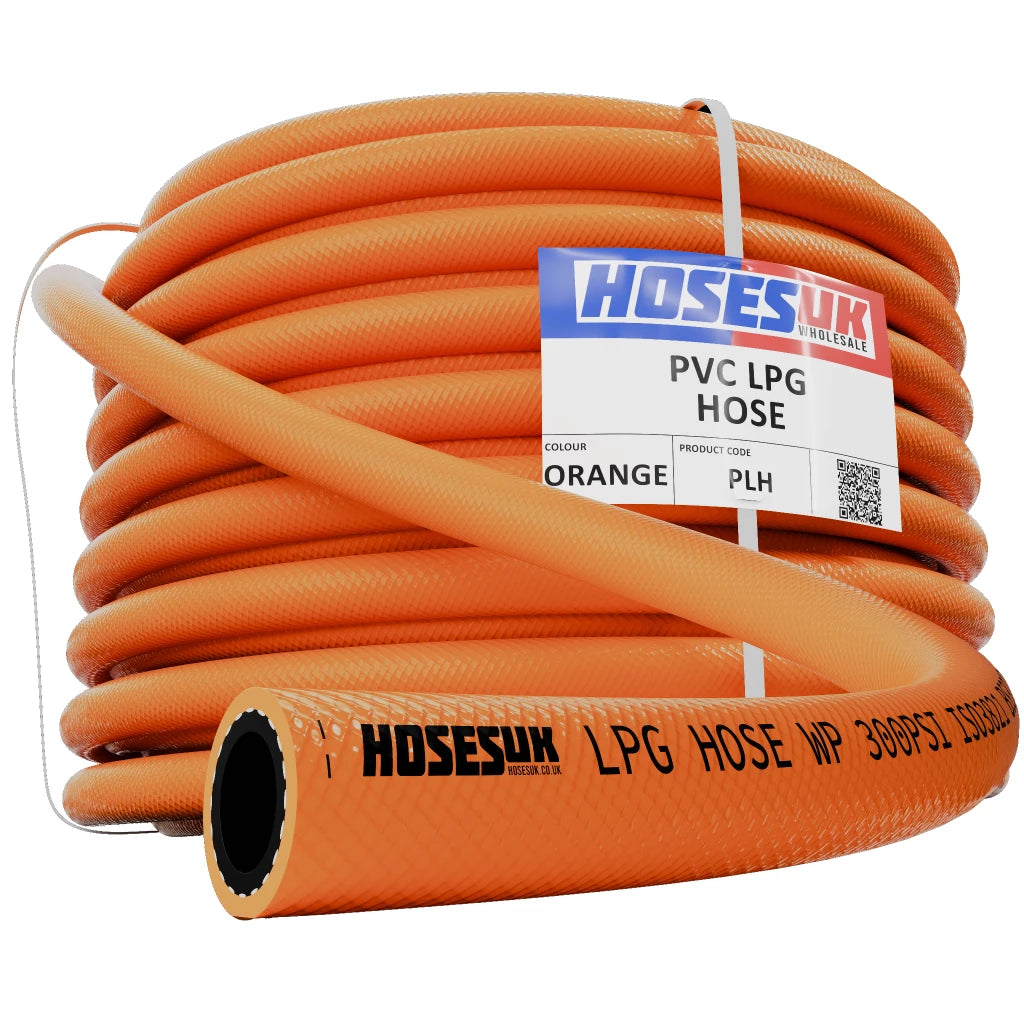

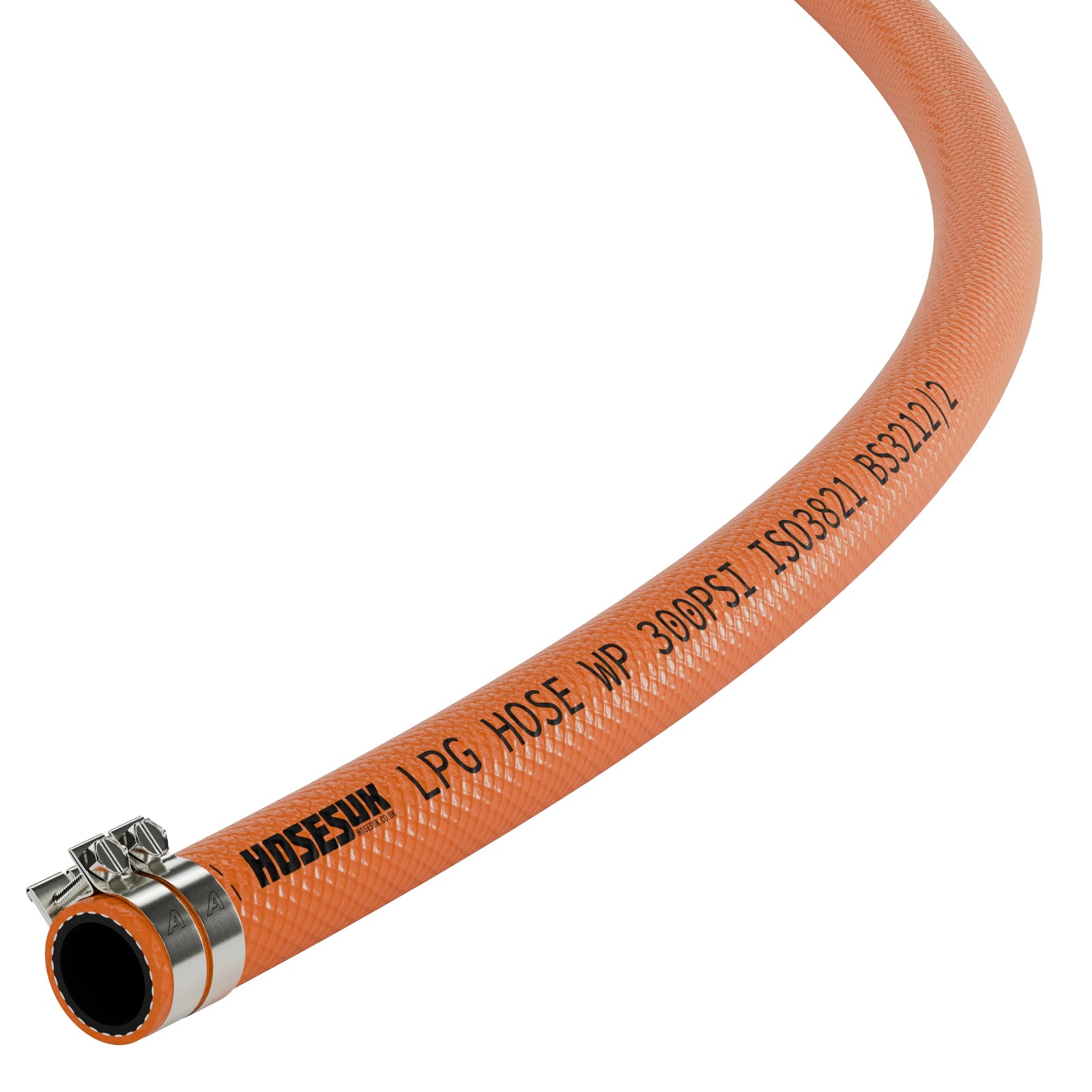

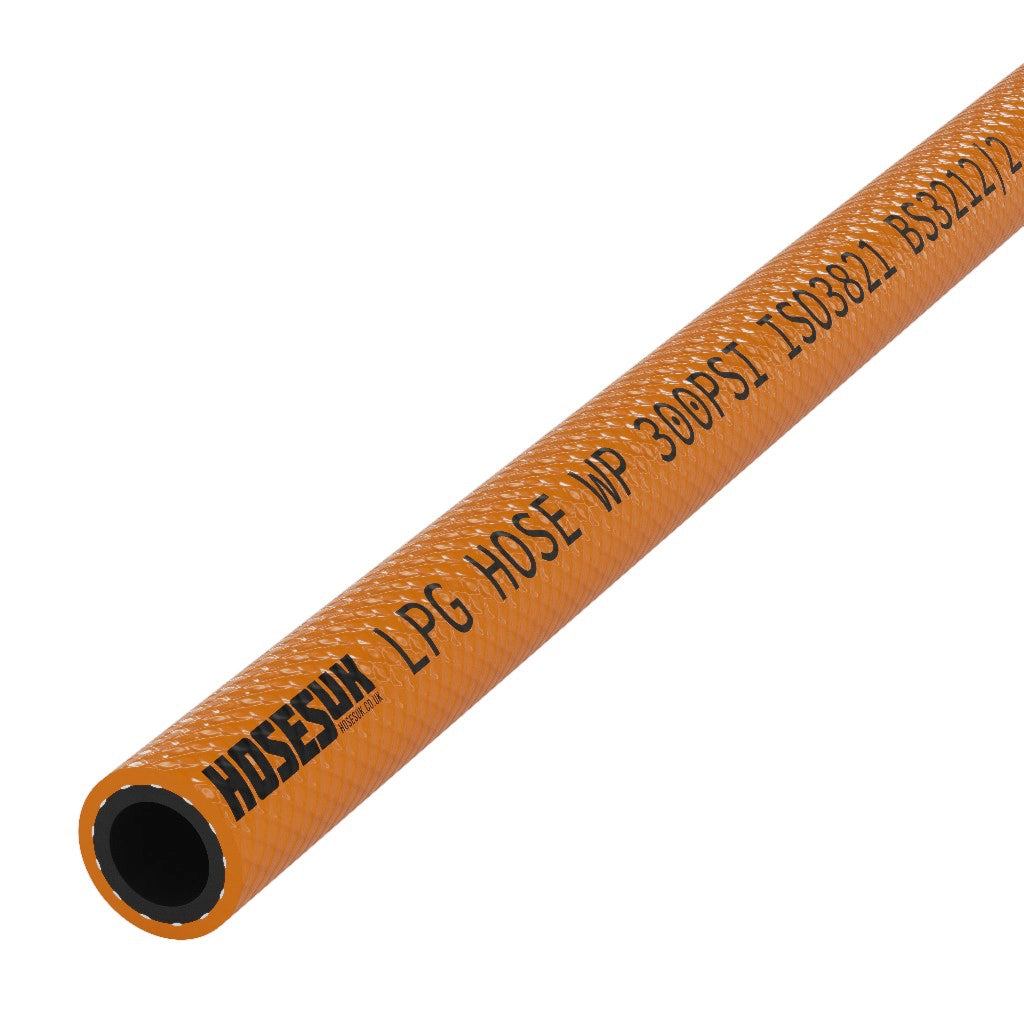

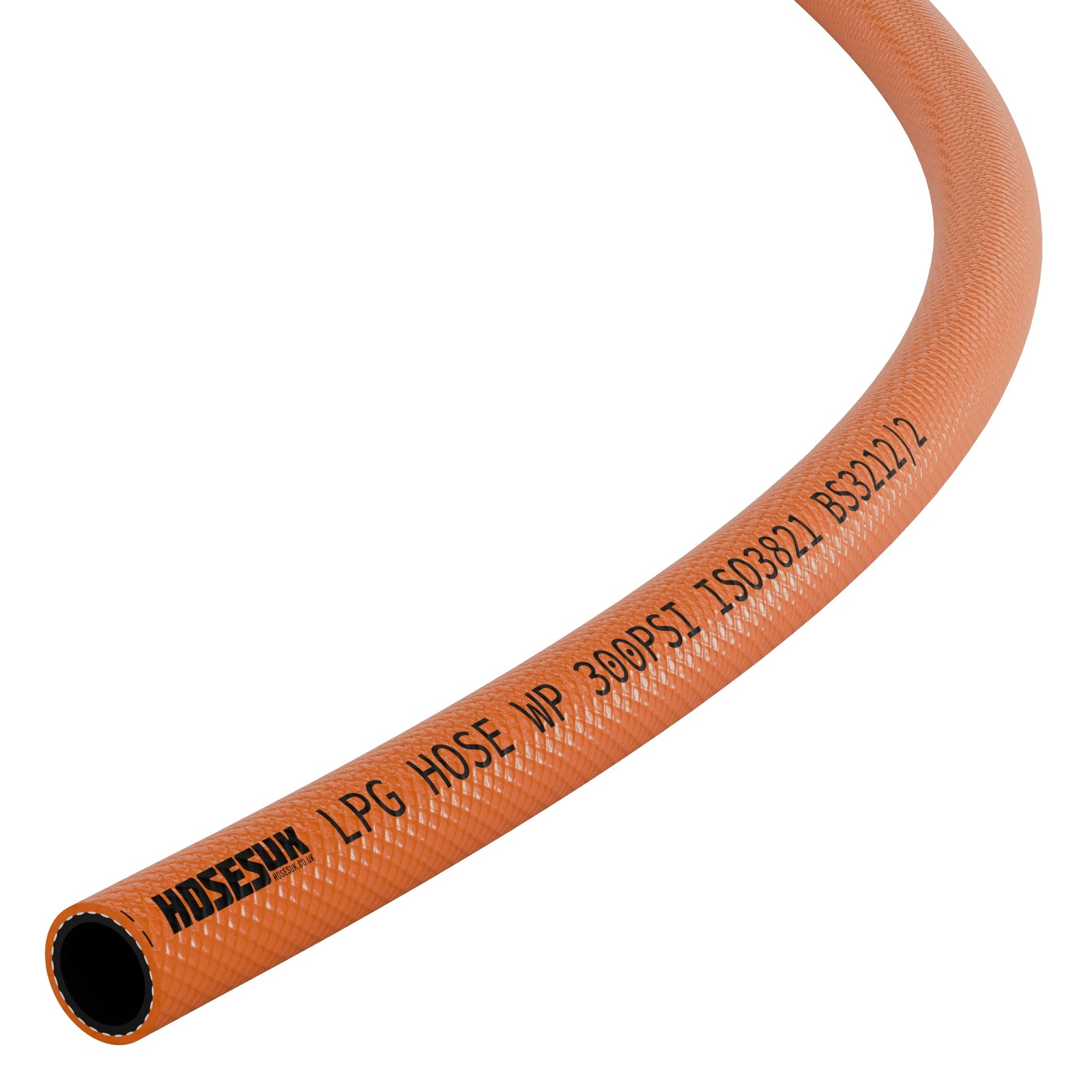

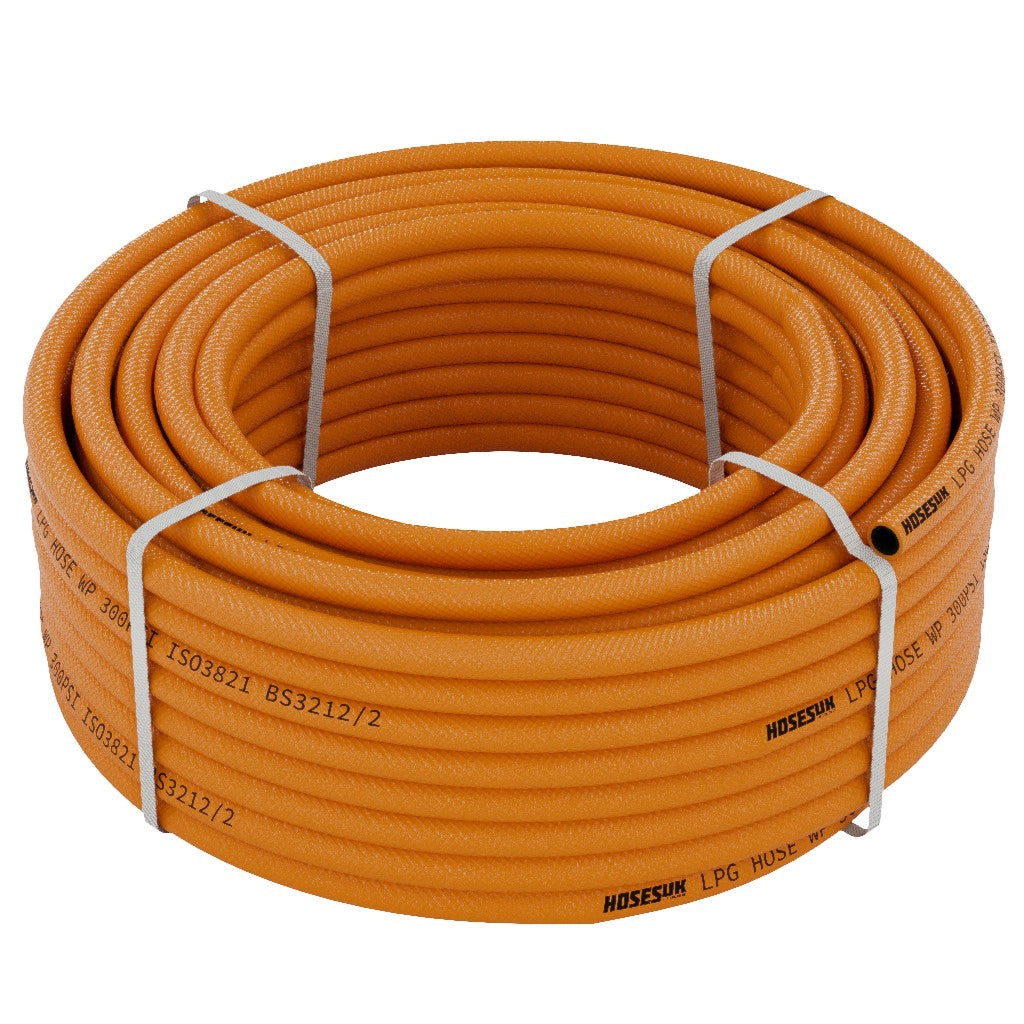

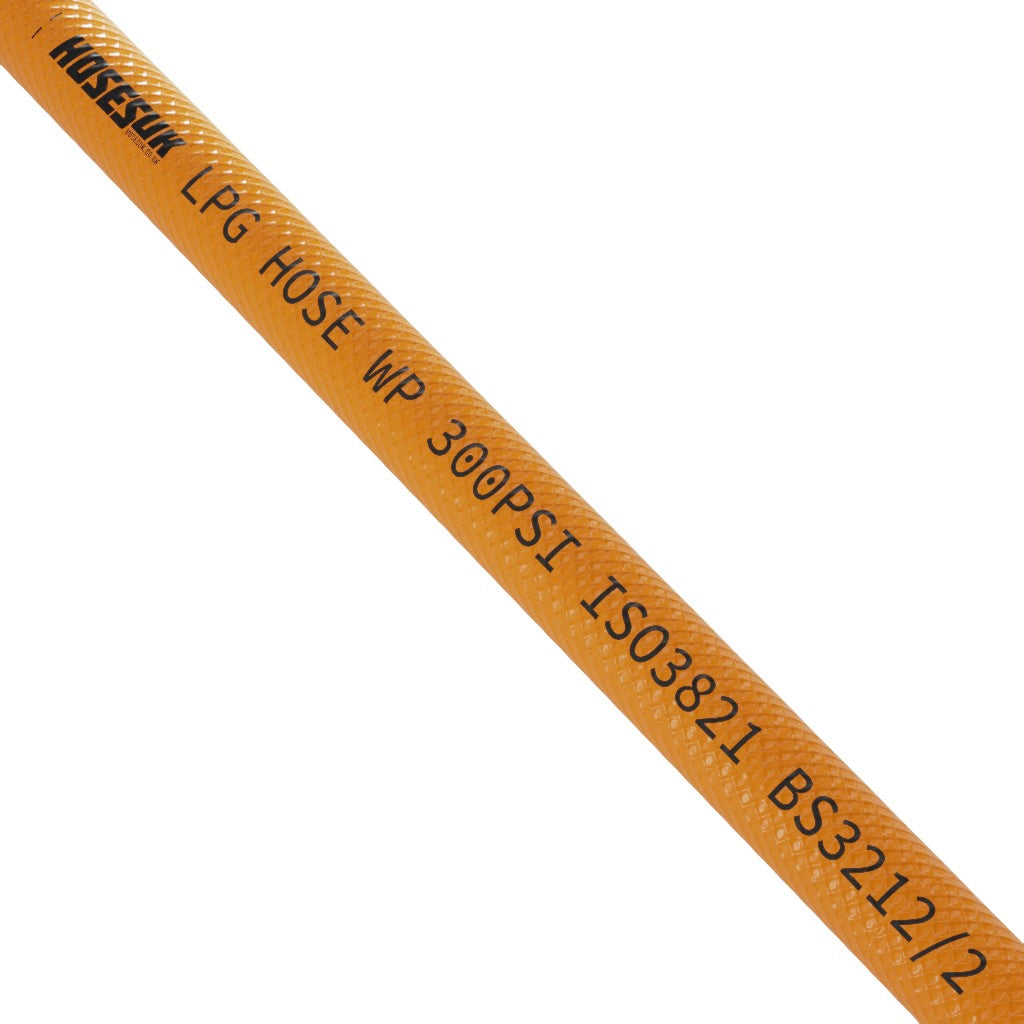

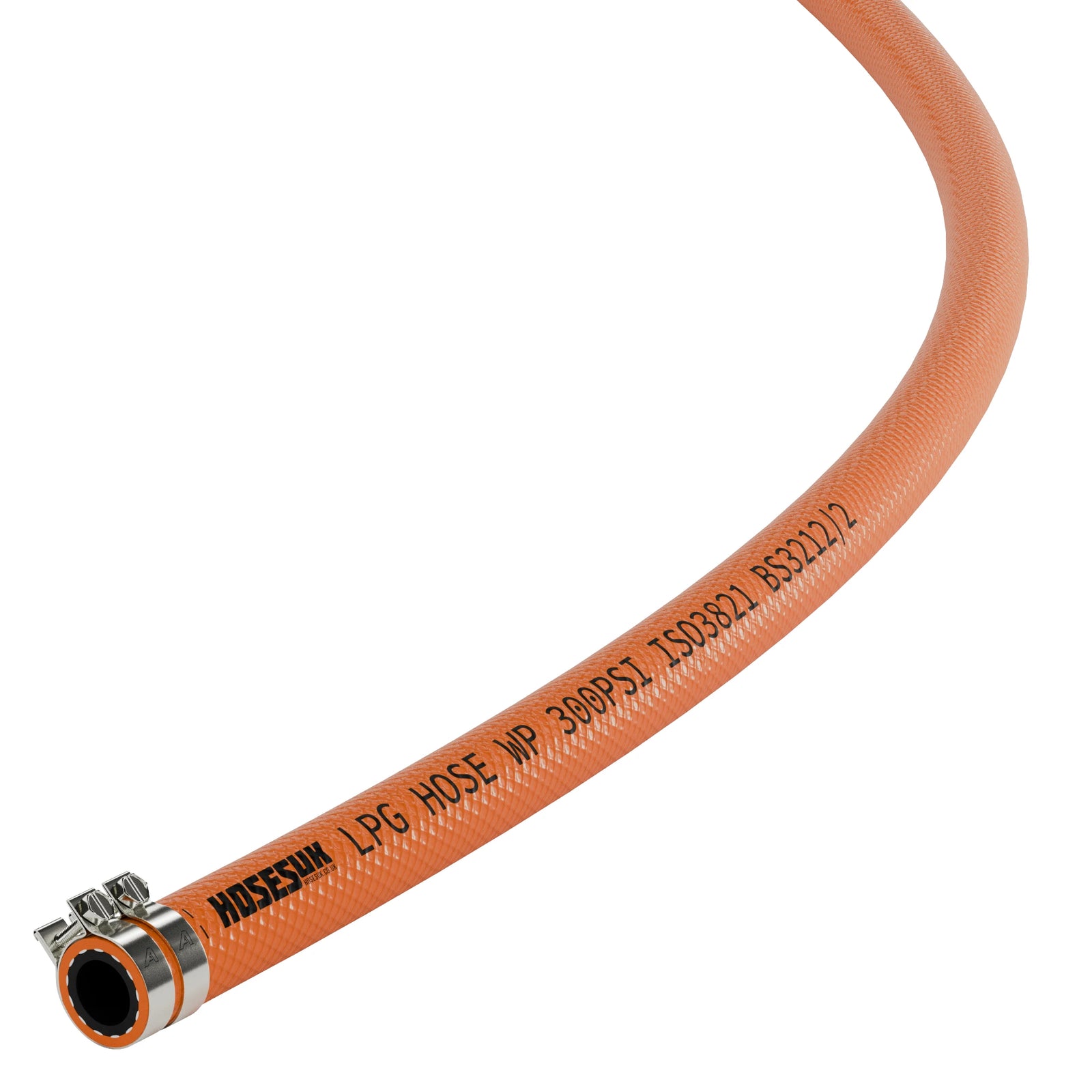

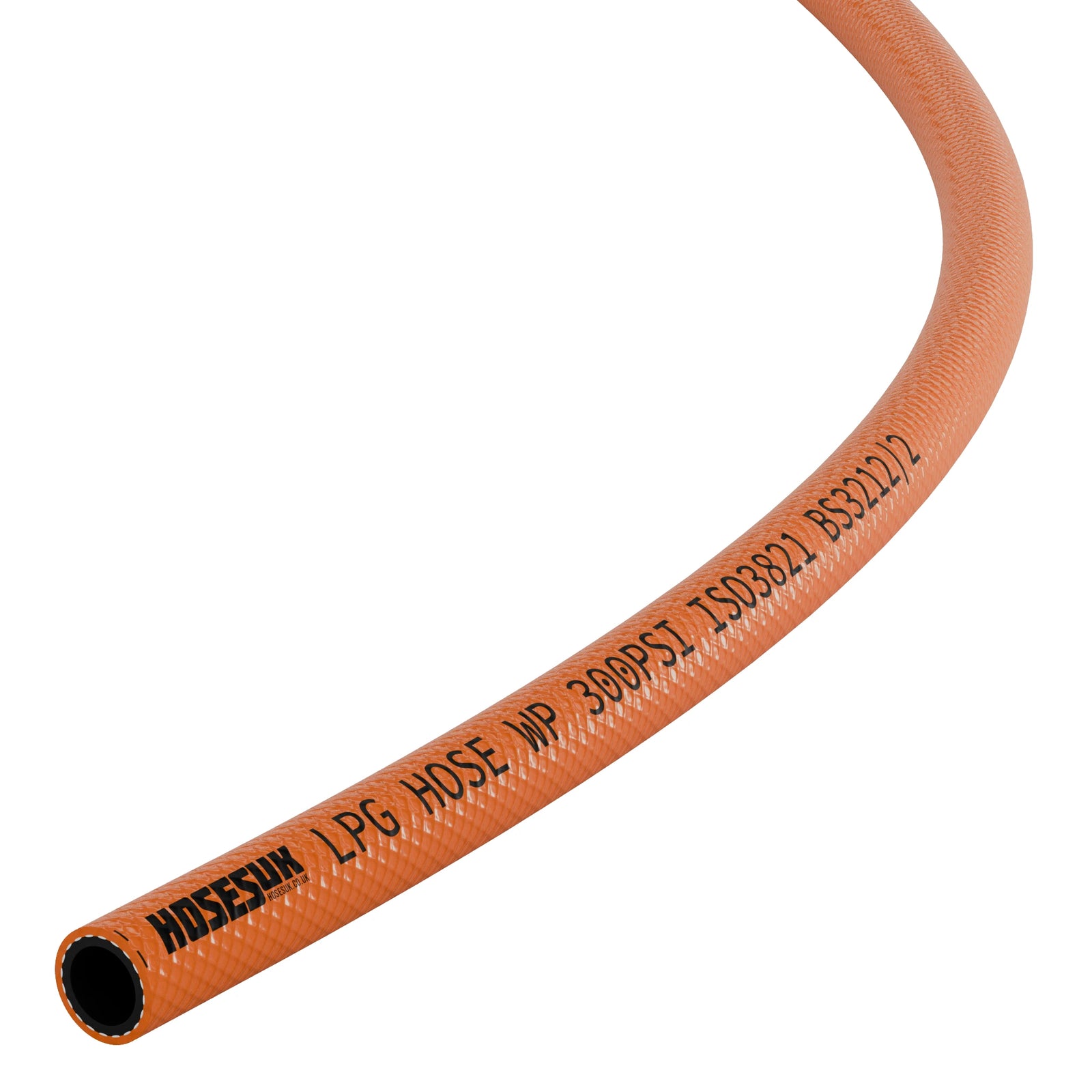

PVC LPG Hose

PVC LPG Propane Hose delivers reliable, medium-pressure performance for industrial fluid handling and gas transfer where flexibility, durability, and visibility are essential. Engineered with a black PVC inner tube and a tough PVC outer cover, the construction is reinforced with triple polyester yarn to provide consistent pressure stability and long service life. As a PVC reinforced hose designed for LPG/propane duties, this polyester braided PVC tubing supports fluid transfer tasks in manufacturing, maintenance, and site operations that demand lightweight handling and kink resistance. With an operating temperature range from -10°C to +65°C (peak +70°C) and compliance to ISO 5774:2016 Type C, this PVC reinforced hose balances safety, strength, and manoeuvrability for day-to-day use. Size options cover common service lines, with transparent specification data enabling straightforward selection for pneumatic support lines, industrial applications, and general gas service where controlled pressure and dependable reinforcement are required.

Key Features:

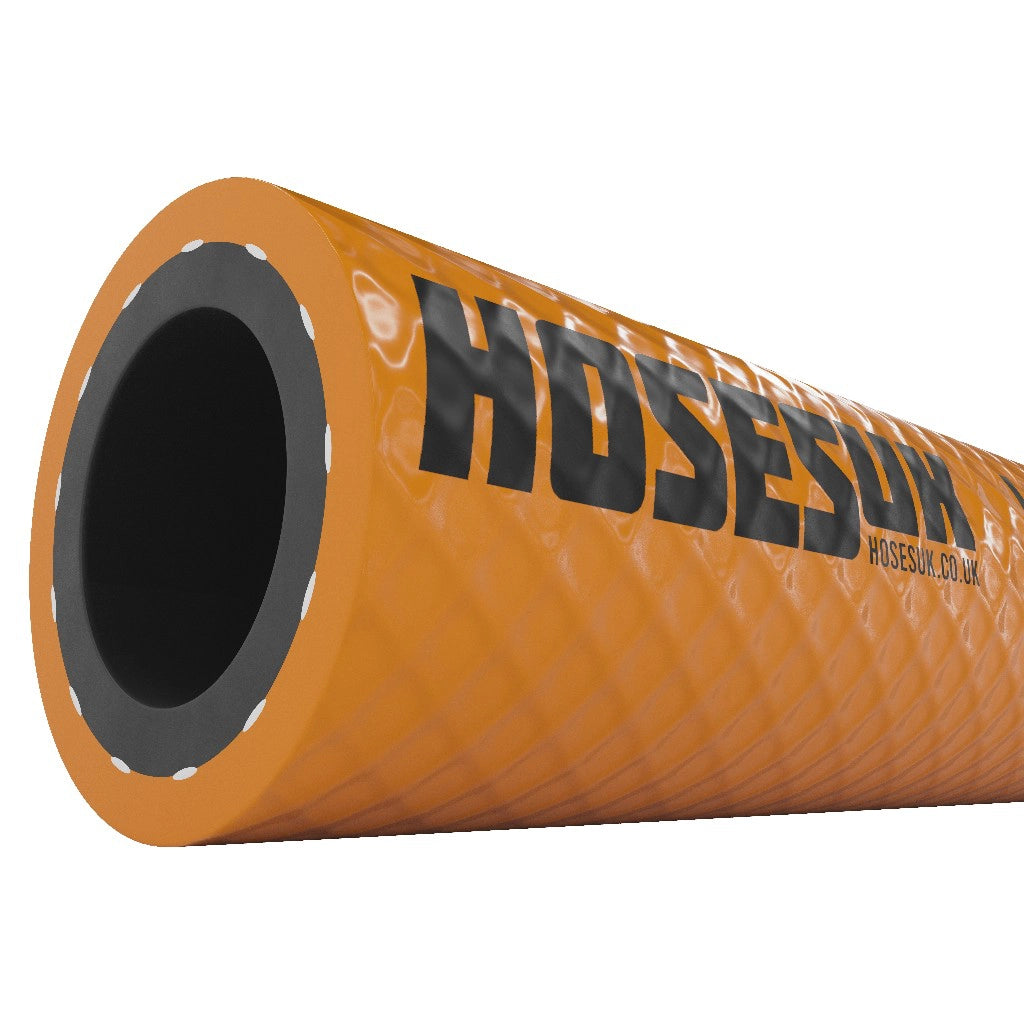

• Material, Inner/Outer: Black PVC inner layer with PVC outer cover.

• Reinforcement: Triple polyester yarn for pressure stability and kink resistance.

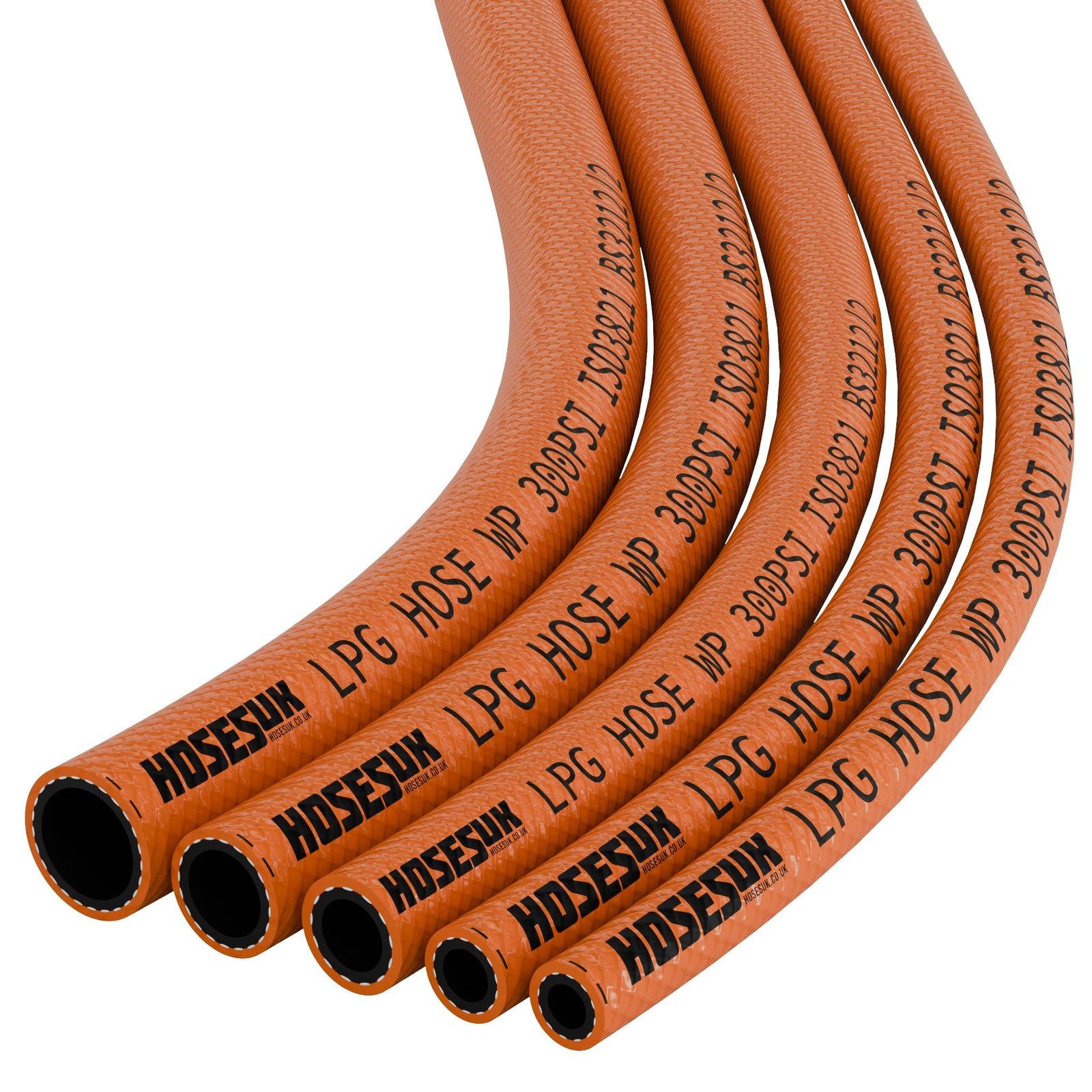

• Internal Diameter Range: 5 mm, 6 mm, 8 mm, 10 mm, 13 mm.

• Outside Diameter: 11 mm, 12 mm, 15 mm, 17 mm, 21 mm (respectively).

• Wall Thickness: 3.0 mm (5–6 mm ID), 3.5 mm (8–10 mm ID), 4.0 mm (13 mm ID).

• Working Pressure: 20 bar (varies by size).

• Burst Pressure: 60 bar minimum.

• Bending Radius: 55 mm (5 mm ID) to 105 mm (13 mm ID).

• Temperature Range: -10°C to +65°C; peak +70°C.

• Standard: ISO 5774:2016 Type C.

Built for demanding service, PVC LPG Propane Hose combines a resilient PVC tube and cover with a triple polyester braid to manage sustained service at 20 bar working pressure with a 3:1 safety factor to 60 bar burst. The multi-filament reinforcement mitigates elongation under load and keeps the hose round for stable flow in medium-pressure gas and auxiliary fluid transfer. PVC chemistry provides a smooth internal surface that helps reduce pressure drop, while the balanced wall gauge across sizes supports abrasion resistance without compromising flexibility. The construction handles frequent routing around equipment thanks to tight bending radii from 55 mm to 105 mm, assisting tidy installs in confined spaces. Operating from -10°C to +65°C (with +70°C peak), the design maintains pliability in cooler conditions and resists softening at typical plant temperatures, supporting durability, predictable handling, and consistent performance across industrial applications.

Typical uses include LPG/propane supply lines for industrial heaters, torches, catering and facility maintenance equipment, along with site utilities and plant services that benefit from a medium-pressure hose with reinforced construction. Polyester reinforced PVC tubing is also suited to support roles in manufacturing environments, agricultural outbuildings, and workshop setups where flexible routing and reliable pressure handling are priorities. Combining triple-yarn reinforcement with a rugged PVC cover, the assembly fits industrial fluid handling tasks and pneumatic support lines associated with gas-powered tools and process equipment, delivering reliable performance and straightforward installation within regulated operating limits.
