Aluminium 180 Degree Pipe
Description
Description

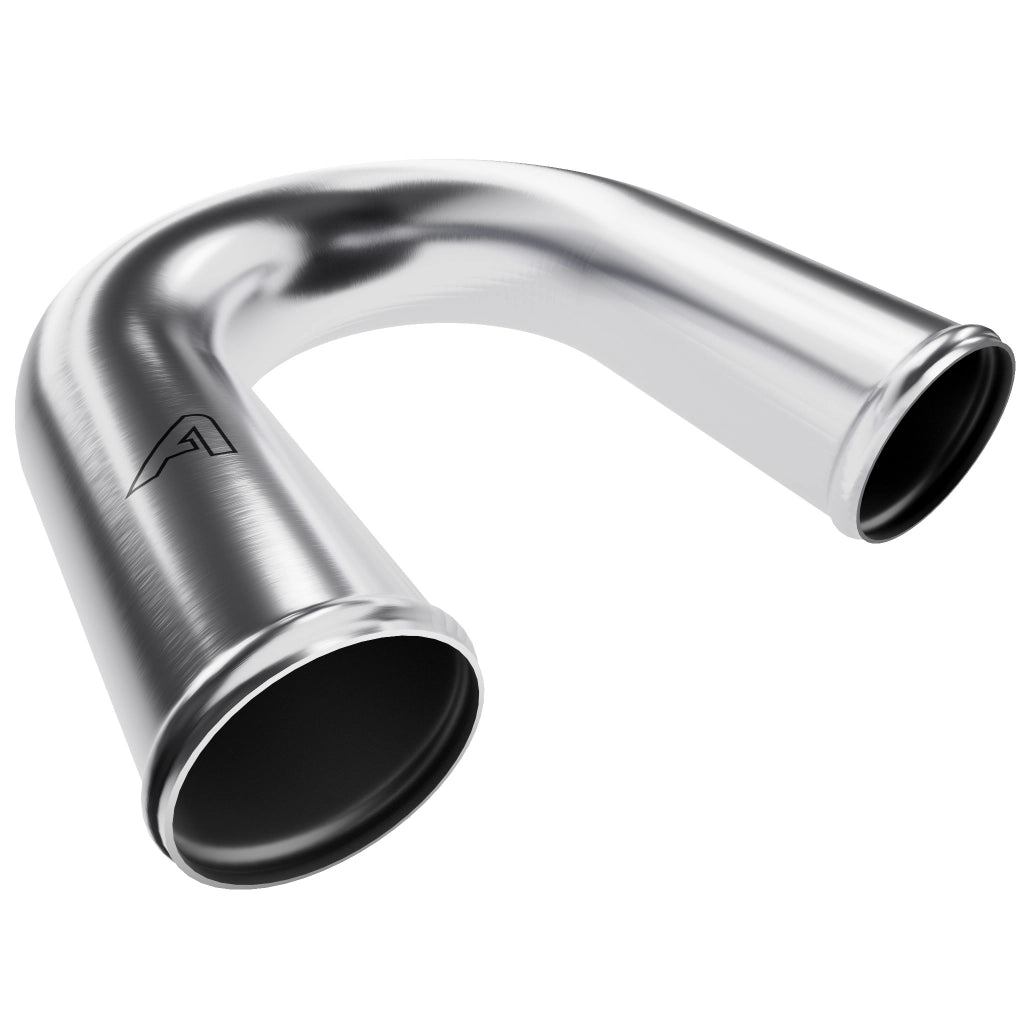

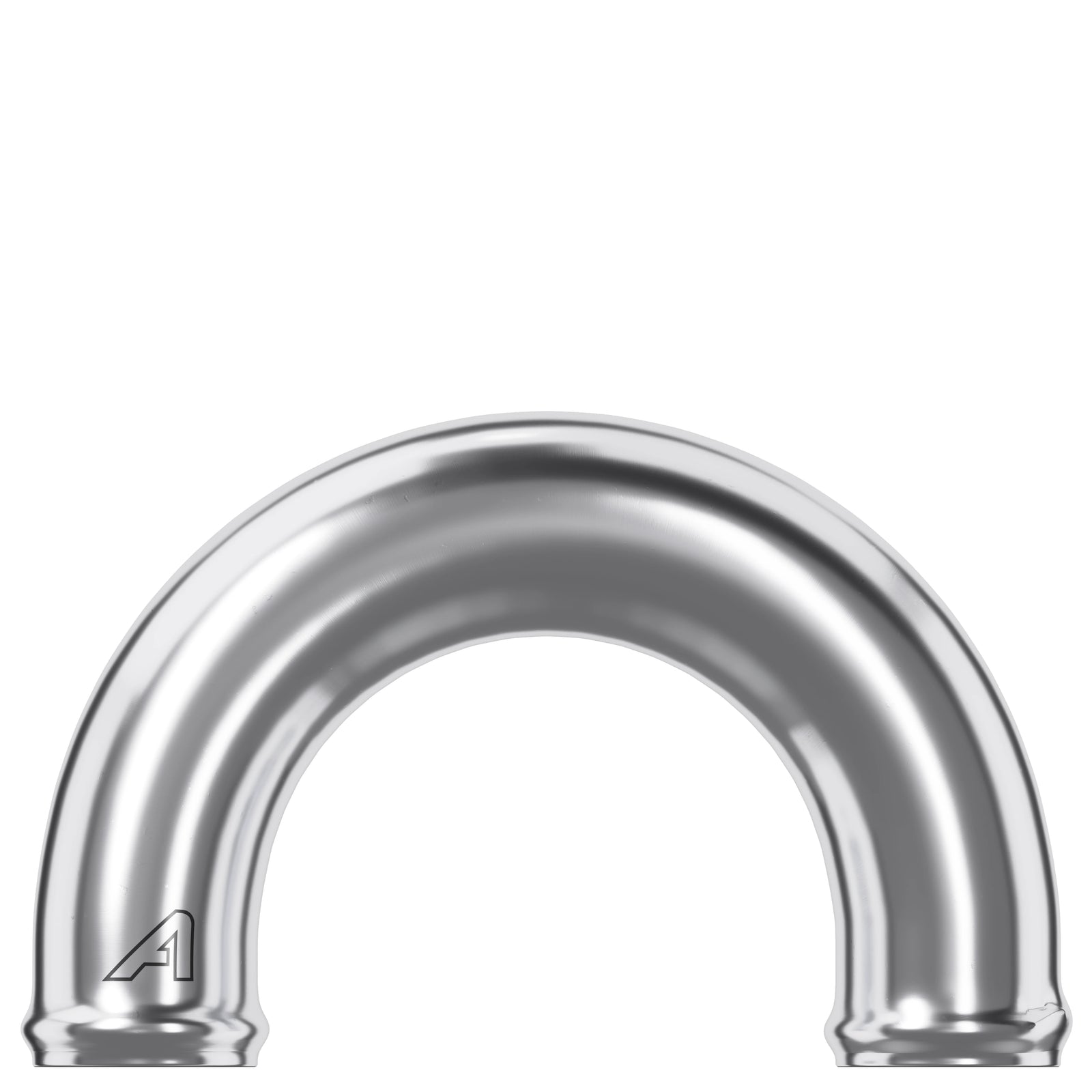

Aluminium 180° Elbow from AutoSiliconeHoses is built for performance applications requiring a precise U-shaped connection. Made from T6063 aluminium with a consistent 1.6 mm wall thickness, it combines strength and lightweight construction with excellent thermal resistance. The mandrel-bent design provides a smooth internal bore for optimal flow efficiency.
Key Features:
Material: T6063 aluminium.
Wall Thickness: 1.6 mm.
Outside Diameter Range: 16 mm to 102 mm.
Leg Length: 100 mm each side.
Operating Temperature: -40°C to +220°C, peak +240°C.
Construction: Mandrel-bent U-bend with smooth bore.
The aluminium 180° elbow enables compact U-shaped connections where space is limited or direct return flow is required. Its smooth bore reduces turbulence while supporting reliable fluid or air movement. With high strength and resistance to extreme heat, it is trusted across motorsport and industrial sectors.
Typical applications include intercooler return piping, intake rerouting, coolant redirection, and custom exhaust fabrication. AutoSiliconeHoses supplies a wide diameter range for compatibility with varied installations.
Specifications
Specifications
-
Temperature Rating
-
Peak Temperature
-
Inner Layer Material
-
Reinforcement
-
Outer Layer Material
-
Standard
-
Safety Factor
-
Colour-
