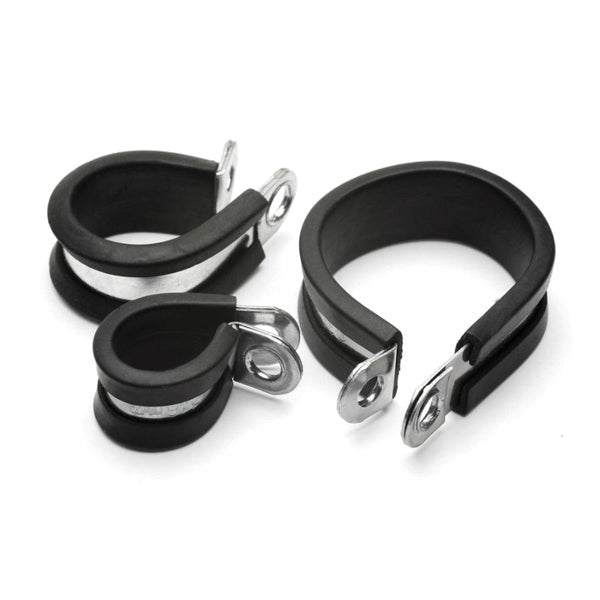

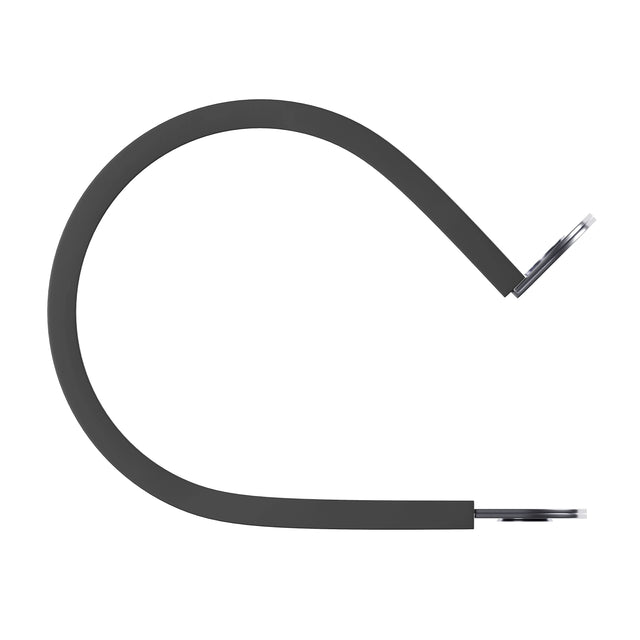

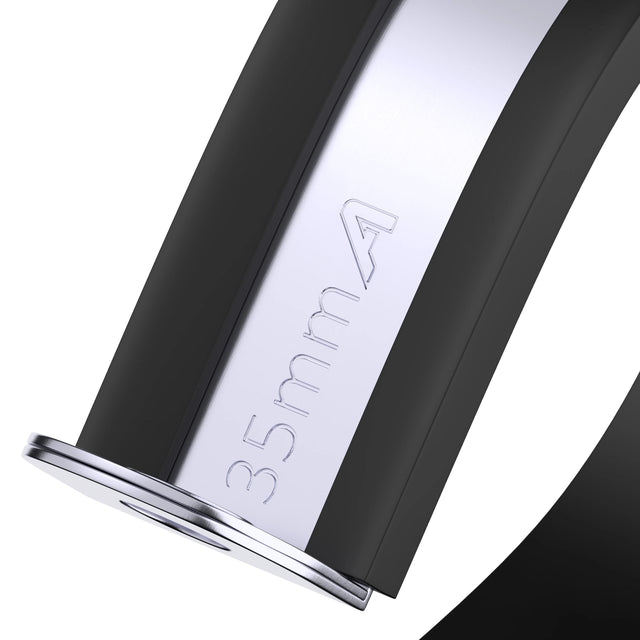

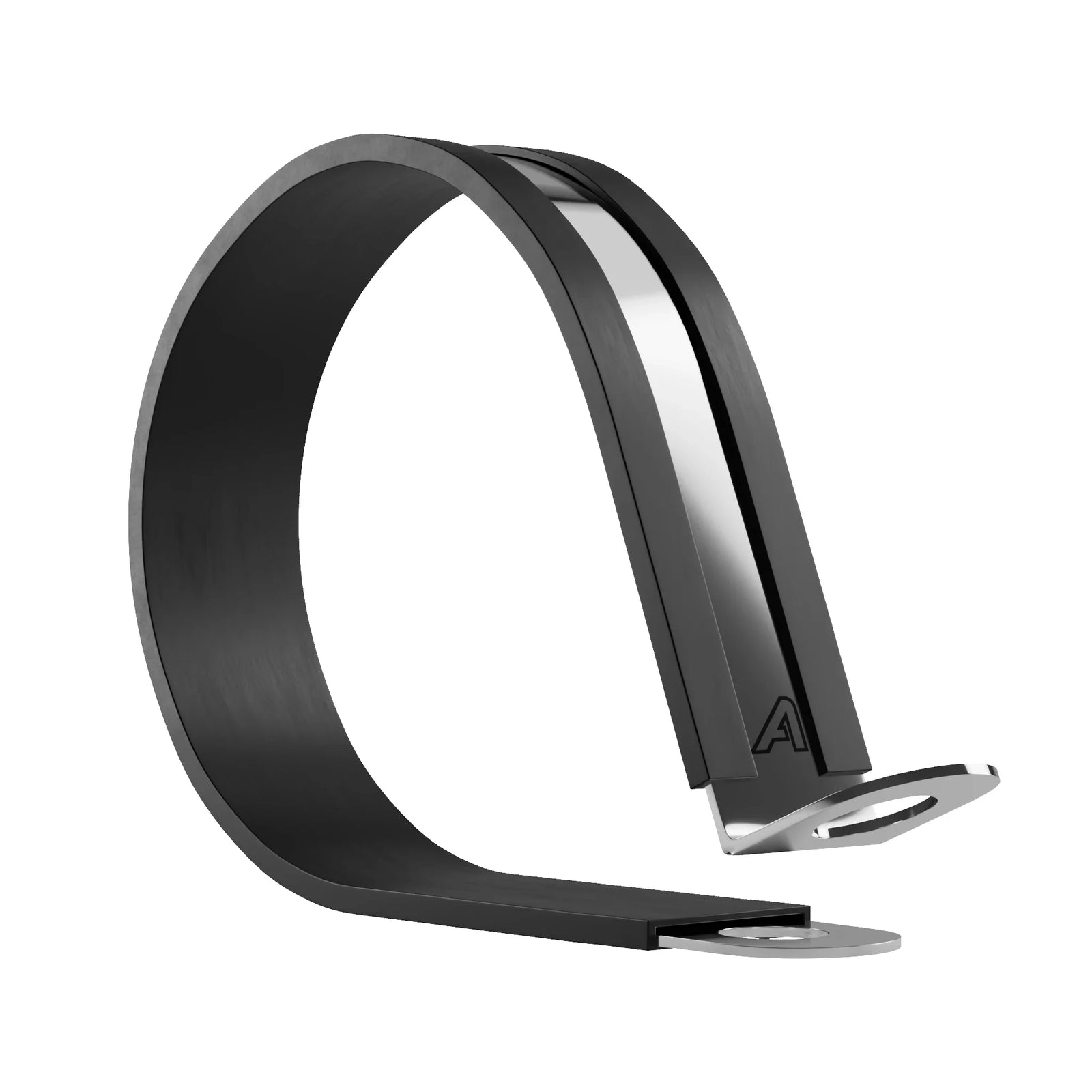

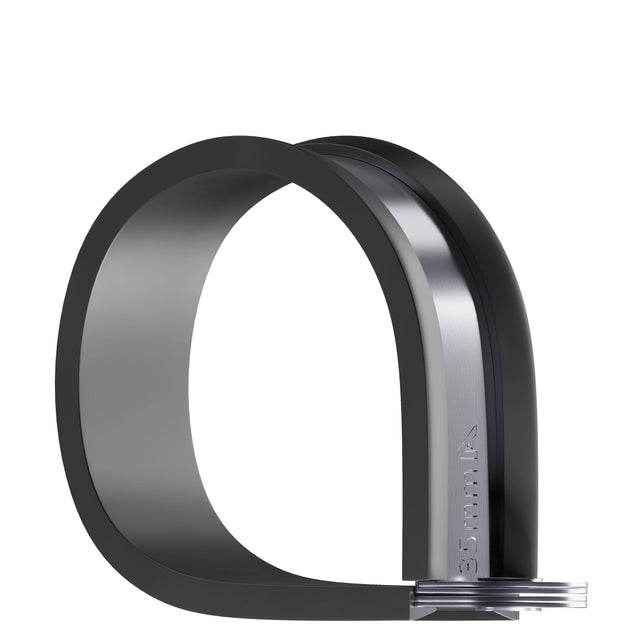

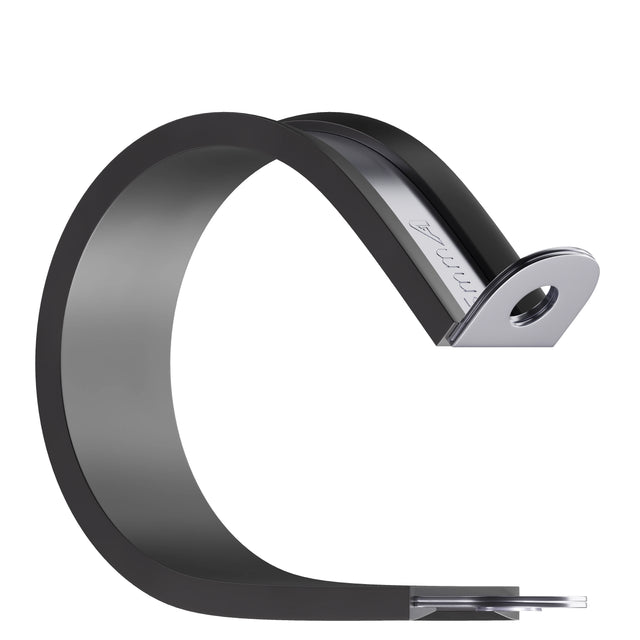

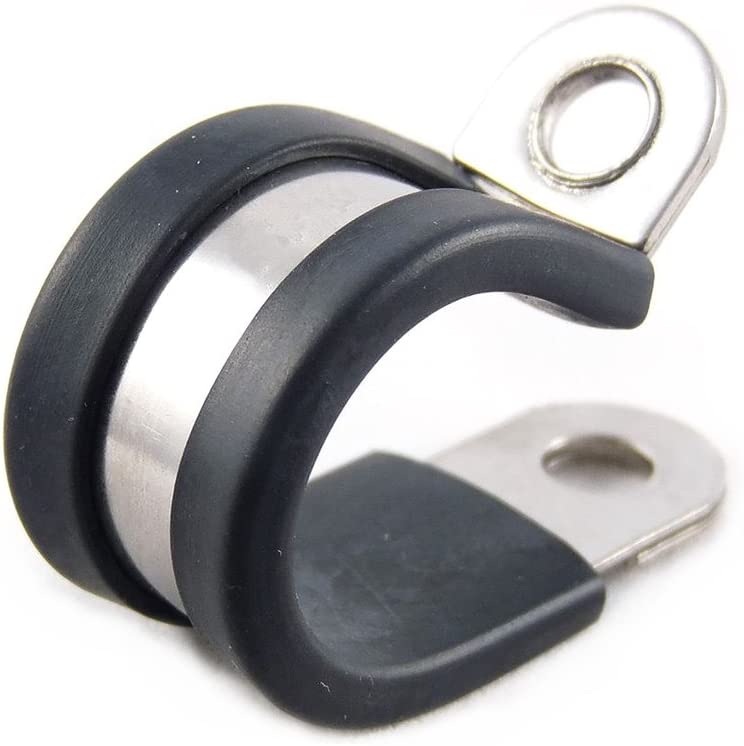

Rubber Lined P-Clip

Rubber Lined P Clips are strong and versatile clamps designed for securely fastening hoses, pipes, and cables to panels, bulkheads, and chassis in automotive, marine, and industrial applications. Manufactured from zinc-plated steel with a protective rubber lining, these clips combine mechanical strength with vibration damping and surface protection. The steel band provides a rigid hold, while the rubber lining cushions the hose or pipe, reducing wear, noise, and the risk of abrasion. Built with a 12 mm wide band and 0.6 mm thickness, P clips offer reliable fastening performance in a compact, easy-to-install design. Operating from -50°C to +150°C (with peaks up to +160°C), they provide long-term durability in harsh service environments.

Key Features:

• Material: Zinc-plated steel band with rubber lining.

• Clip Range: 5 mm to 38 mm diameter options.

• Band Width: 12 mm.

• Band Thickness: 0.6 mm.

• Operating Temperature: -50°C to +150°C continuous, +160°C peak.

• Design: Steel P-clip with vibration-damping rubber lining.

Rubber Lined P Clips provide a secure and professional method of mounting hoses and pipes. The rubber insert prevents chafing, dampens vibration, and absorbs noise, making these clips ideal for sensitive or high-vibration environments. The zinc-plated finish resists corrosion, extending service life in automotive bays, marine installations, and industrial equipment. Their simple bolted fixing system allows quick and secure attachment to bulkheads, panels, or mounting rails, ensuring hoses and pipes remain stable even under dynamic conditions. With size options from 5 mm to 38 mm, they accommodate a wide range of hose and pipe diameters.

Applications include securing coolant hoses, fuel and oil lines, pneumatic tubing, electrical cables, and hydraulic return lines in automotive, marine, agricultural, and industrial systems. Rubber Lined P Clips provide a durable and cost-effective fastening solution where protection, vibration damping, and secure mounting are essential.
