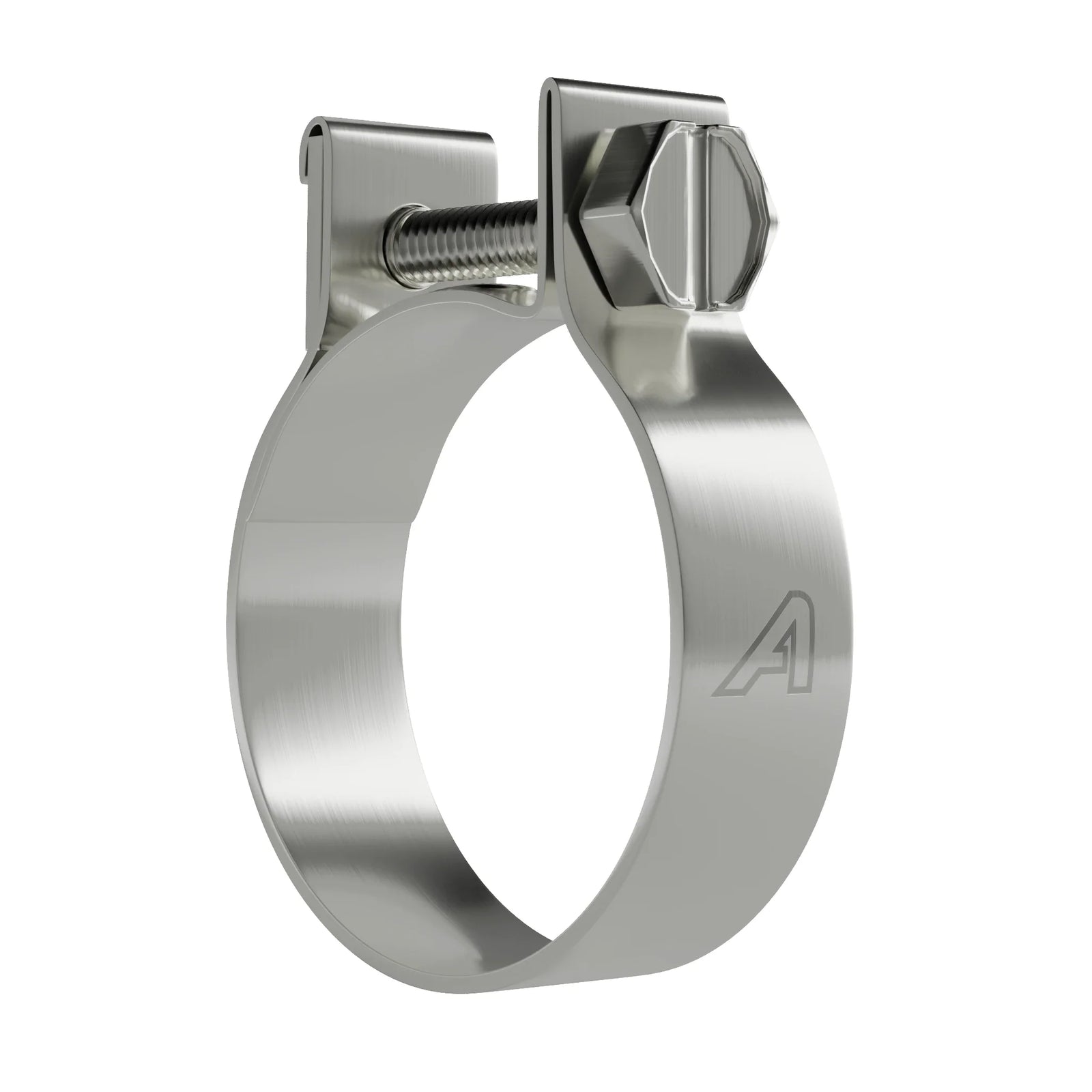

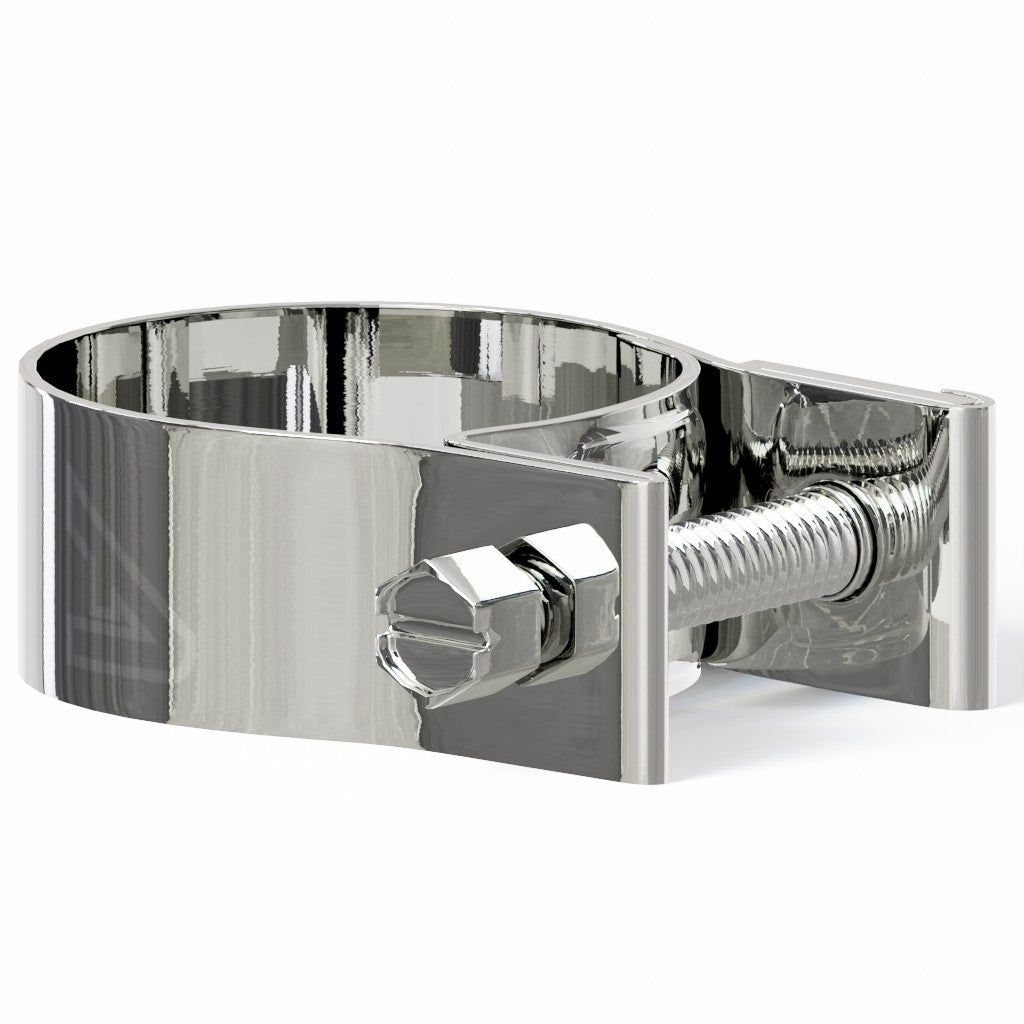

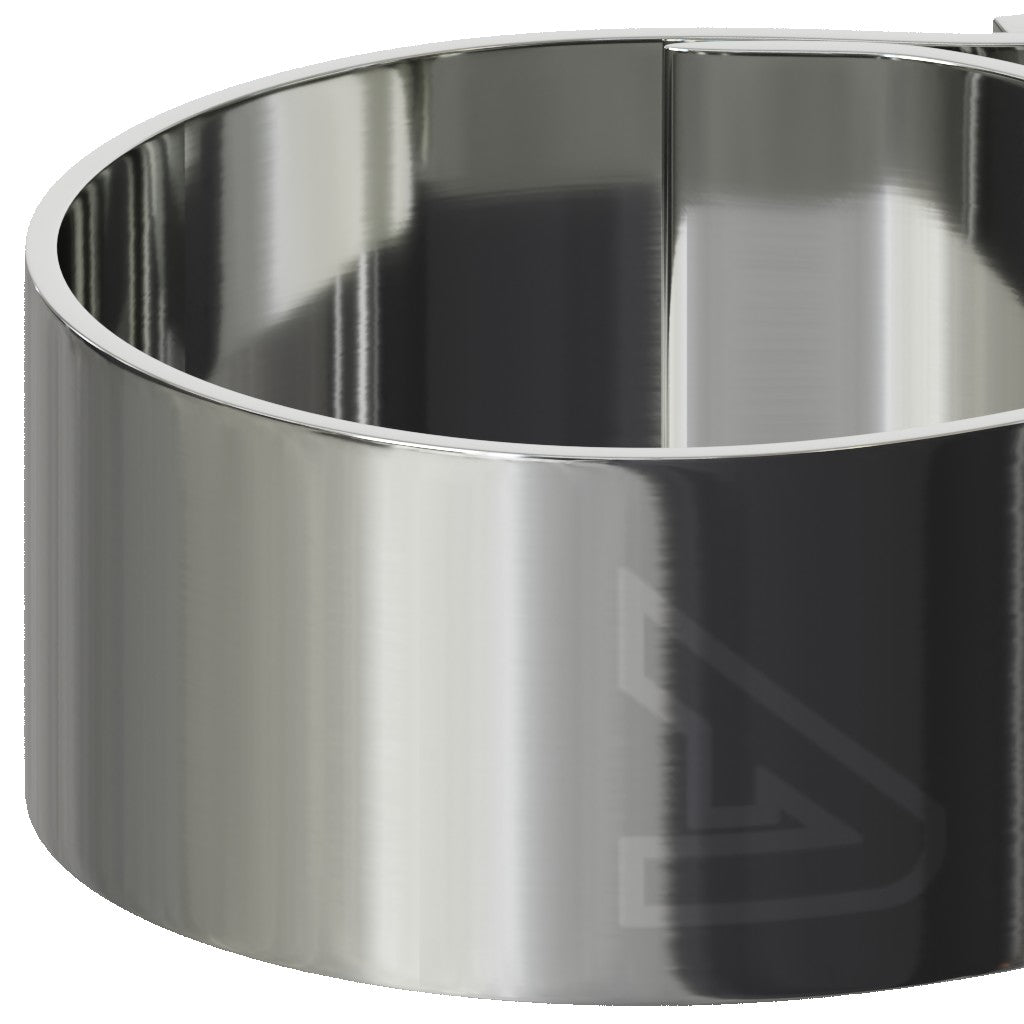

Mini Hose Clip

Mini Hose Clips are compact, high-strength clamps designed for secure fastening of small-diameter hoses in automotive, industrial, and domestic applications. Manufactured with a 9 mm wide band and 0.6 mm band thickness, these clips deliver reliable sealing performance while being easy to install and adjust. Available in zinc-plated steel for cost-effective durability or stainless steel for maximum corrosion resistance, mini hose clips provide long-term reliability even in challenging environments. With an operating temperature range from -60°C to +180°C (peaks up to +190°C), they are suitable for use across a wide variety of hose types and systems.

Key Features:

• Material: Zinc-plated steel (W1) or stainless steel (W4).

• Clip Range: 7 mm to 18 mm diameter.

• Band Width: 9 mm.

• Band Thickness: 0.6 mm.

• Operating Temperature: -60°C to +180°C.

• Peak Temperature: +190°C.

• Design: Compact, lightweight, and reusable design for small hoses.

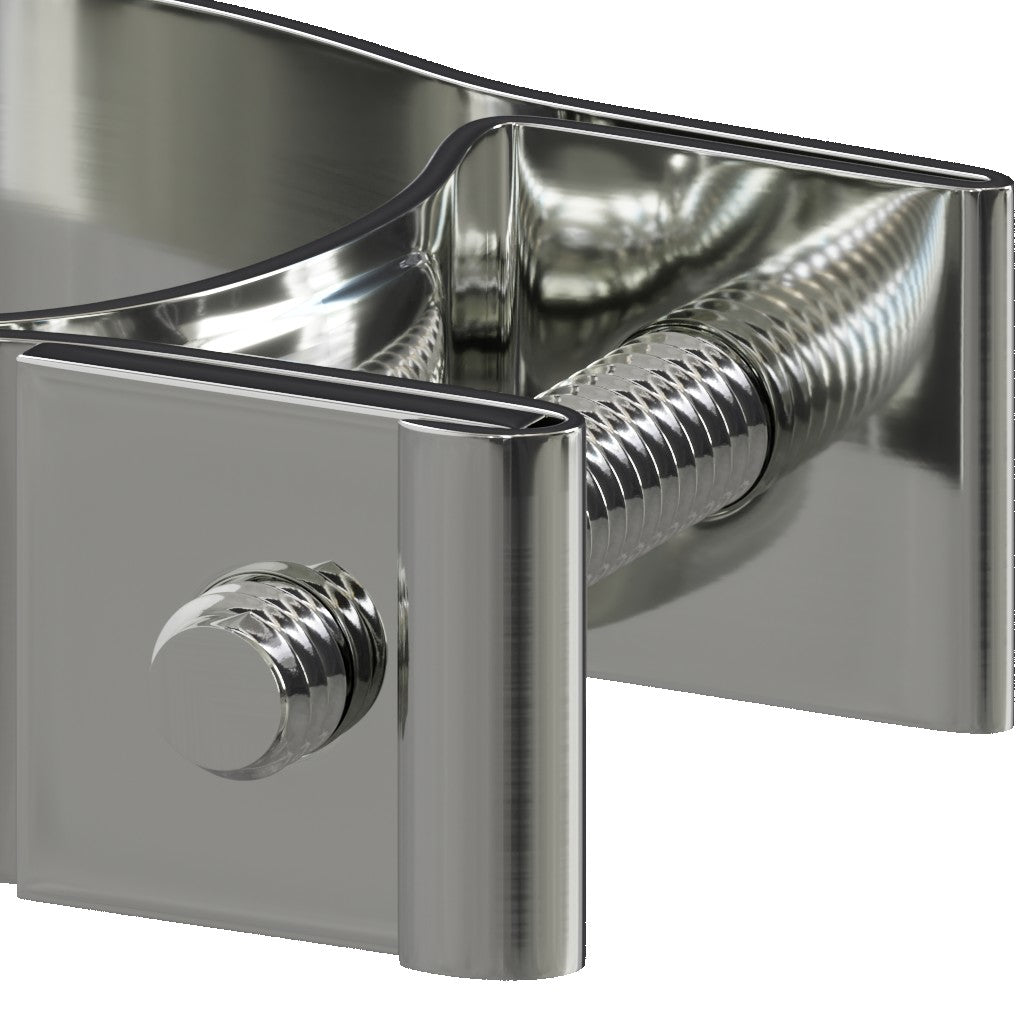

Mini hose clips are specifically engineered for smaller hose diameters where space is limited but a strong and consistent seal is required. Their simple screw-tightened mechanism allows for easy adjustment and reusability, while the smooth inner band minimises risk of hose damage during tightening. Zinc-plated options offer cost-effective corrosion protection, while stainless steel versions are ideal for marine, food-grade, or high-moisture environments. With a wide clamping range from 7 mm to 18 mm, they are suitable for securing fuel hoses, washer tubing, vacuum lines, and other low-to-medium pressure connections.

Applications include small-bore fuel lines, vacuum hoses, washer jets, breather systems, and general-purpose pipework in automotive, marine, agricultural, and domestic settings. Mini Hose Clips provide a dependable and cost-effective fastening solution wherever compact size, corrosion resistance, and reliable clamping performance are required.
