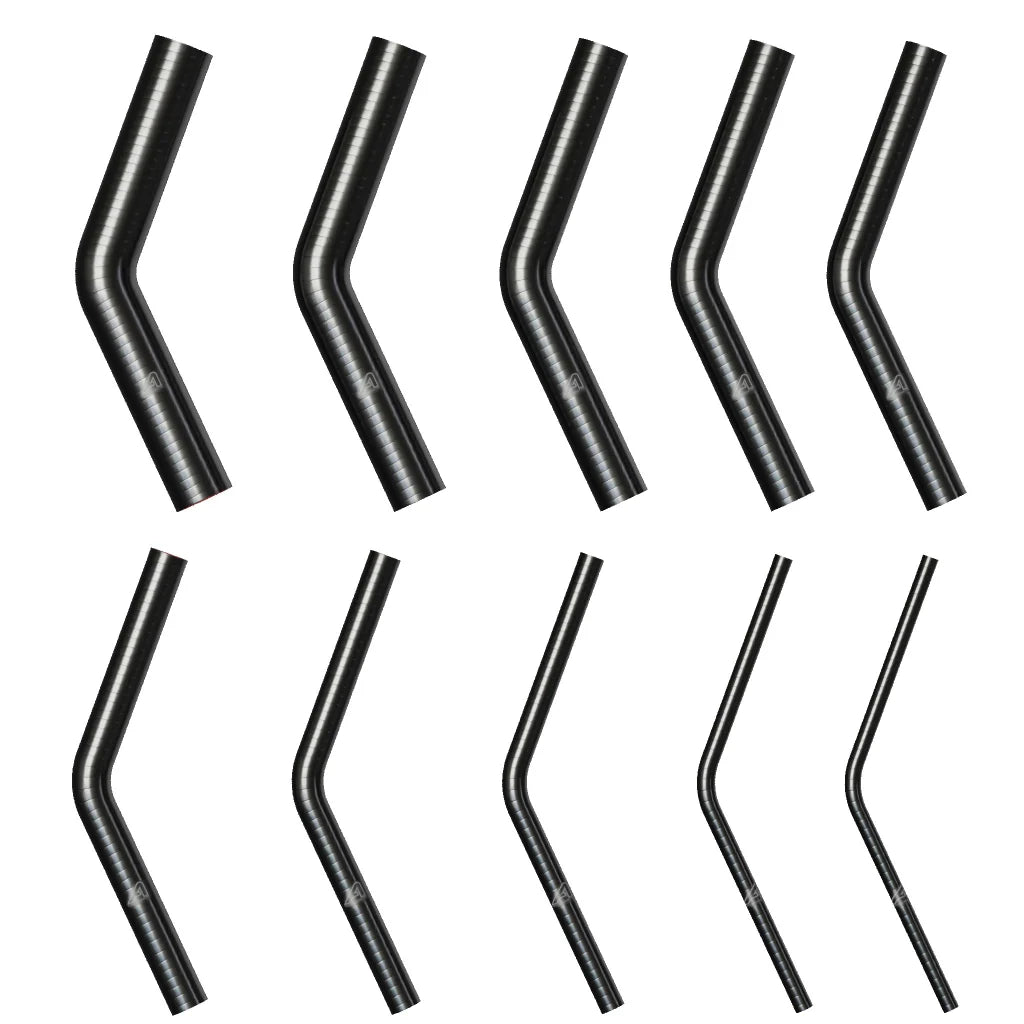

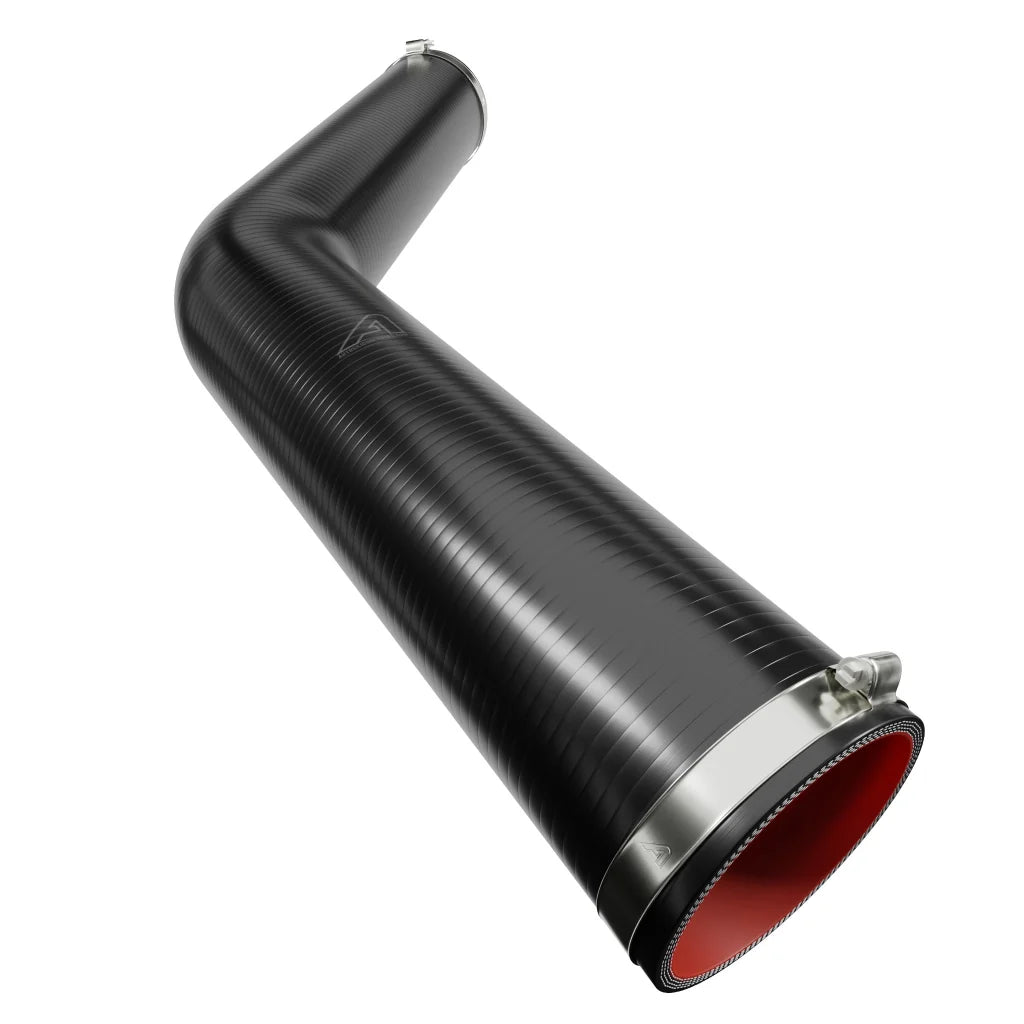

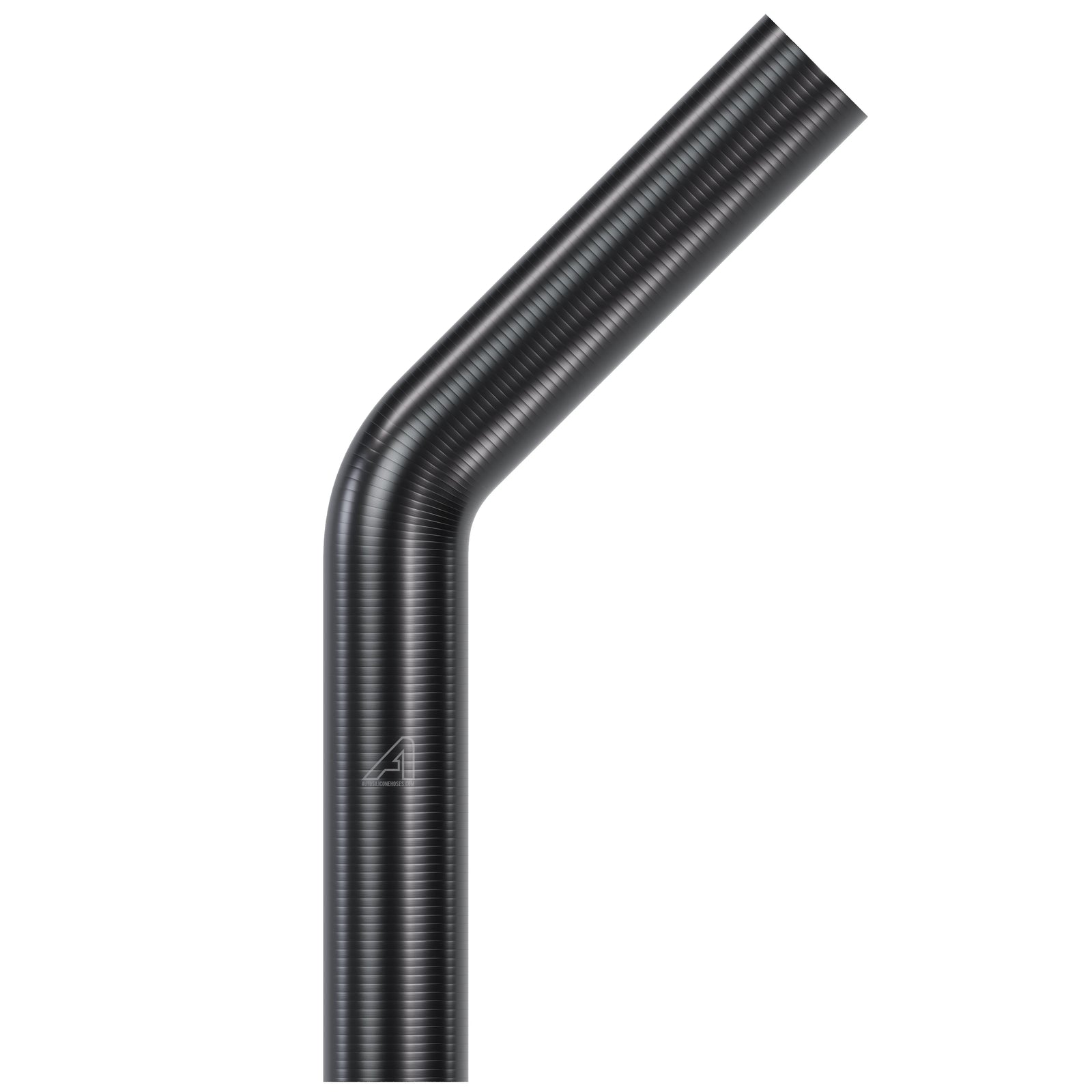

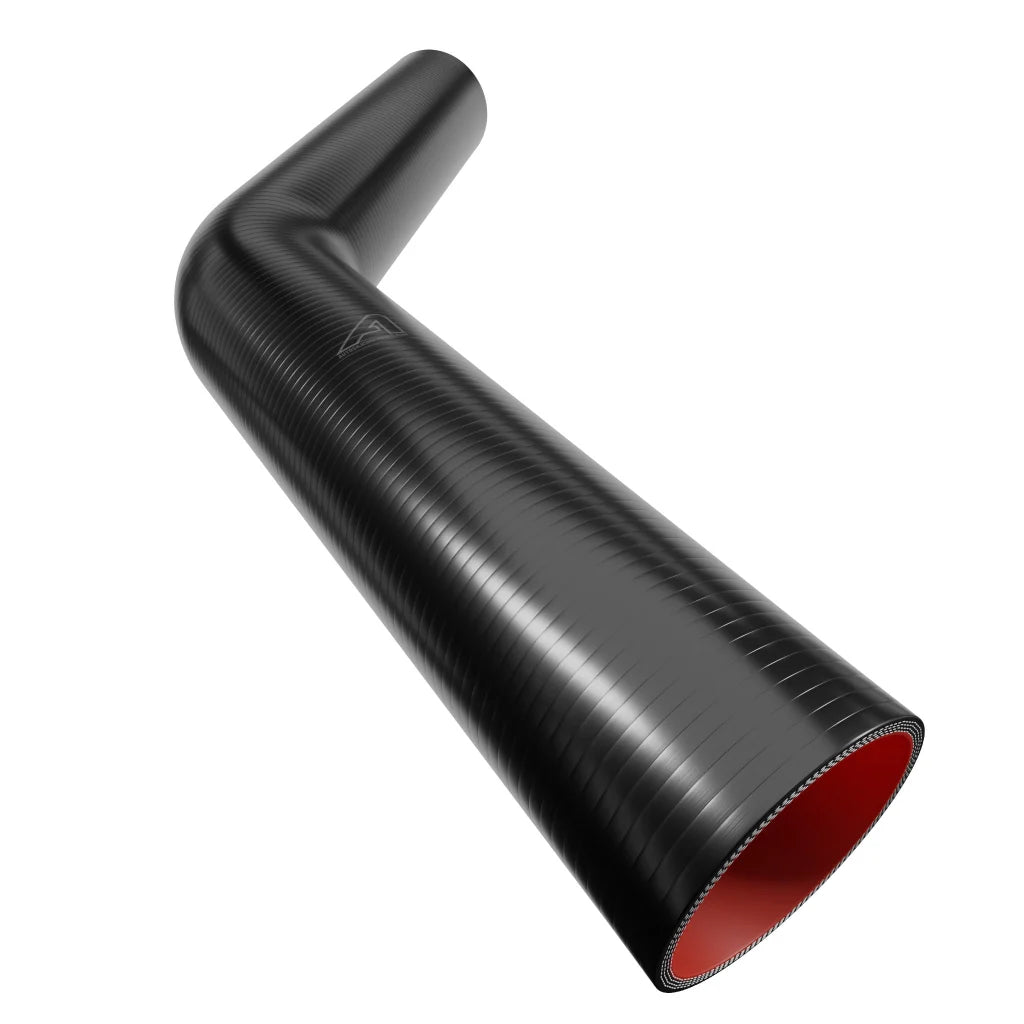

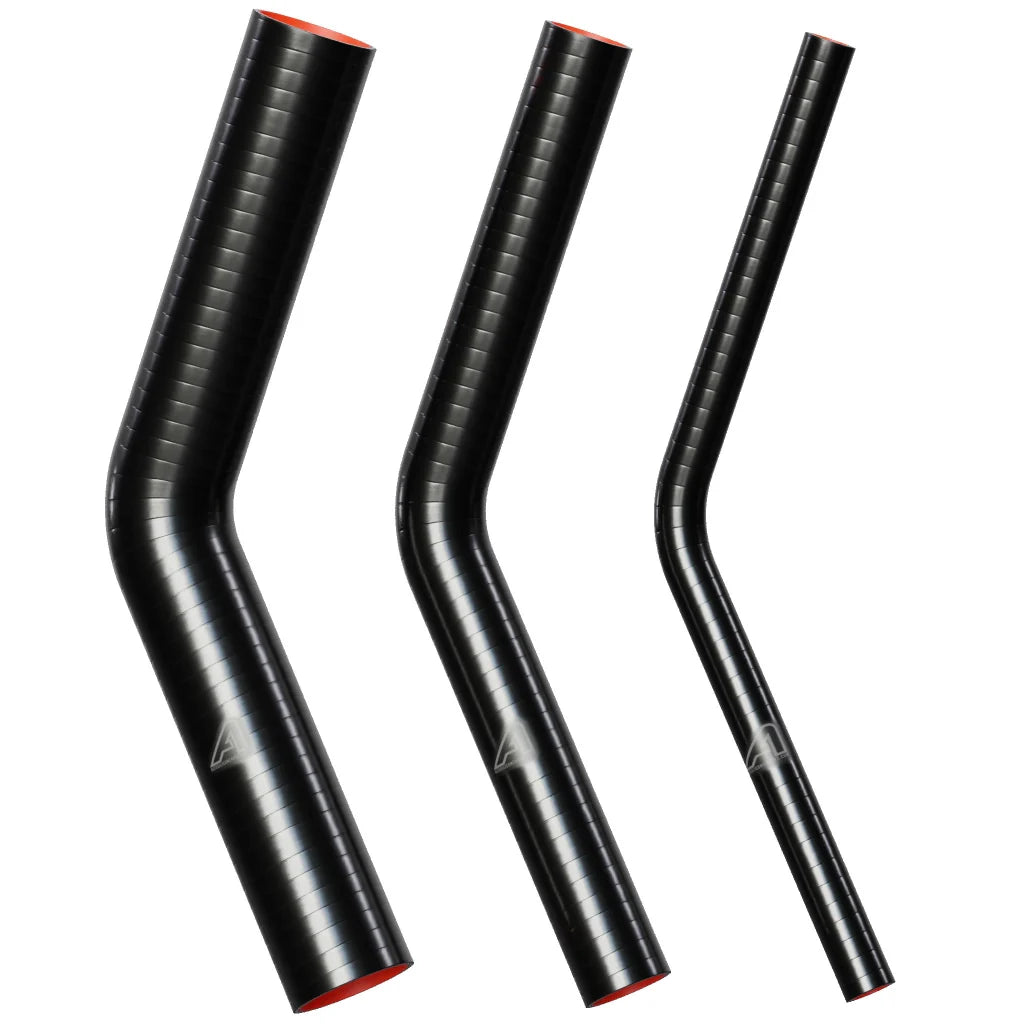

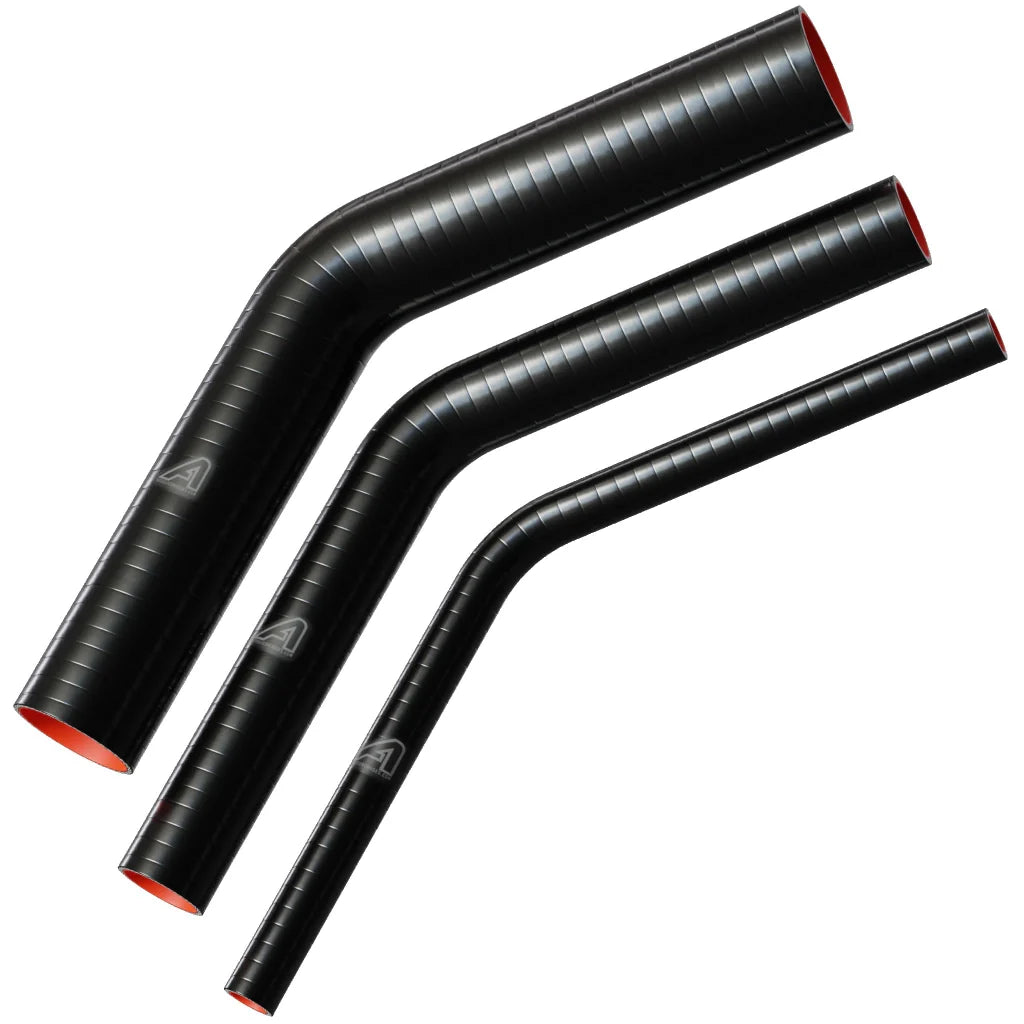

Silicone Fluoro 45 Degree 300mm Leg Hose

Silicone 45 Degree Fuel & Oil Long Elbow is a reinforced hose designed for fluid transfer applications where fuel, oil, and petroleum-based products are present. Manufactured by AutoSiliconeHoses, this elbow combines a fluorosilicone inner liner for chemical resistance, polyester braid reinforcement for pressure stability, and a durable silicone outer layer for heat and abrasion resistance. The 45-degree design with extended 300 mm legs allows easier routing in confined spaces, reducing the need for additional connectors. Operating between -50°C and +250°C and built to SAEJ30R6 standards, this elbow ensures long-lasting reliability under harsh conditions.

Key Features:

• Material: Fluorosilicone inner liner, polyester braid reinforcement, silicone outer cover.

• Angle: 45° long-leg elbow with 300 mm leg length.

• Internal Diameter Range: 6.5 mm to 102 mm.

• Wall Thickness: 4.5 mm to 5.5 mm depending on size.

• Working Pressure: 2.8 bar to 12.33 bar (varies by size).

• Burst Pressure: 8.5 bar to 37 bar minimum.

• Temperature Range: -50°C to +250°C continuous.

• Standard: SAEJ30R6 compliant.

• Brand: AutoSiliconeHoses performance silicone.

The Silicone 45 Degree Fuel & Oil Long Elbow provides flexibility and chemical resistance in high-demand fluid systems. Its fluorosilicone lining ensures compatibility with fuels and oils, while the polyester reinforcement delivers strength under boost and vacuum conditions. The long-leg 300 mm design makes installation easier by reducing the number of joins required in complex routing. Resistant to heat, ozone, and pressure cycling, the hose ensures durability in automotive, motorsport, and industrial applications. The smooth internal bore maintains efficient flow, ensuring consistent performance even under high-stress conditions.

Applications include fuel and oil line routing, breather and catch can systems, motorsport upgrades, and industrial petroleum handling. Distributed under the AutoSiliconeHoses brand, the Silicone 45 Degree Fuel & Oil Long Elbow is a professional-grade solution for engineers and performance enthusiasts requiring heat-resistant, chemically compatible, and flexible silicone hose components.
