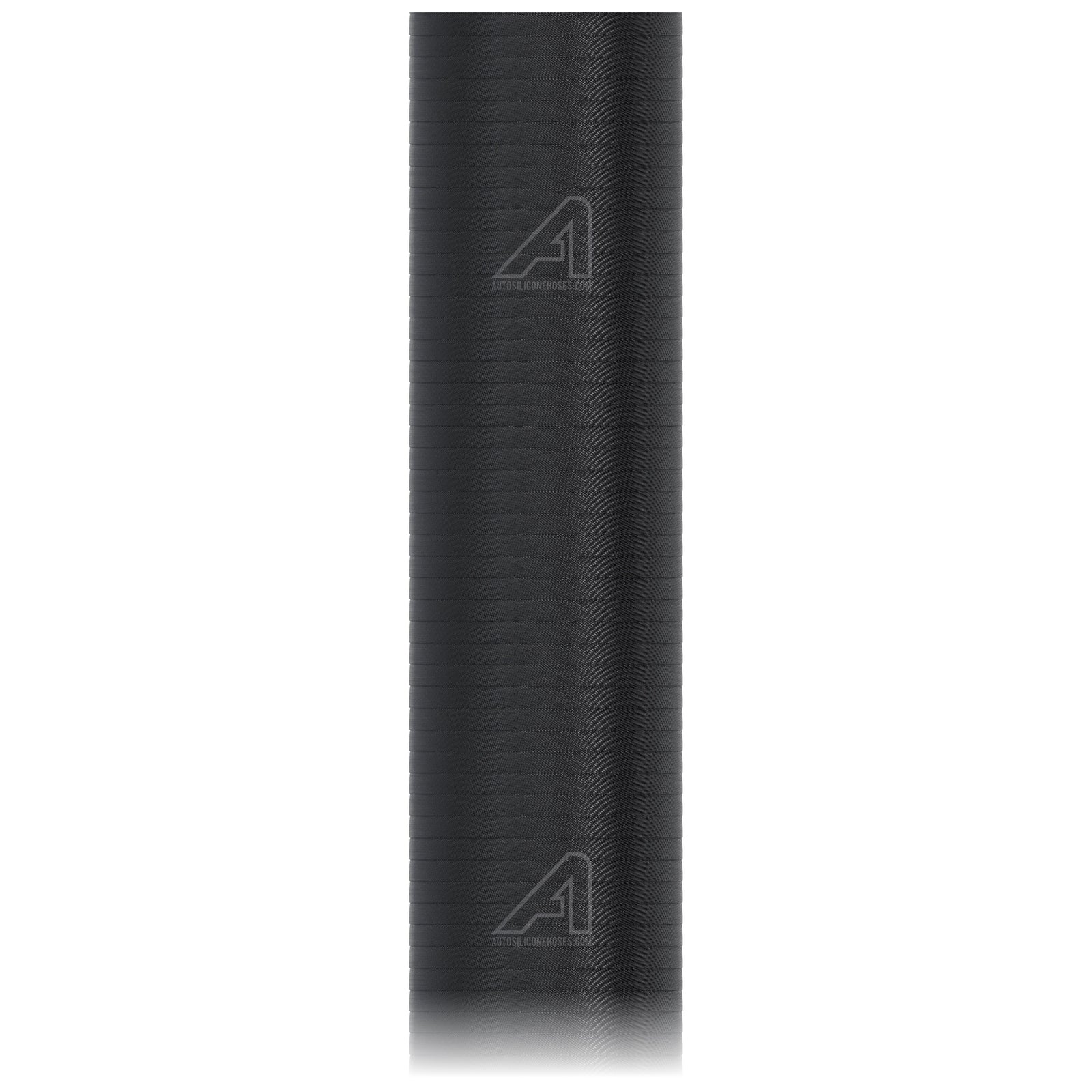

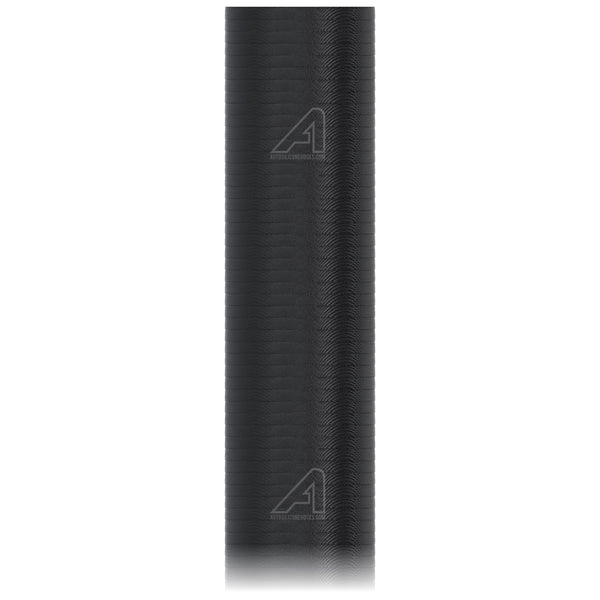

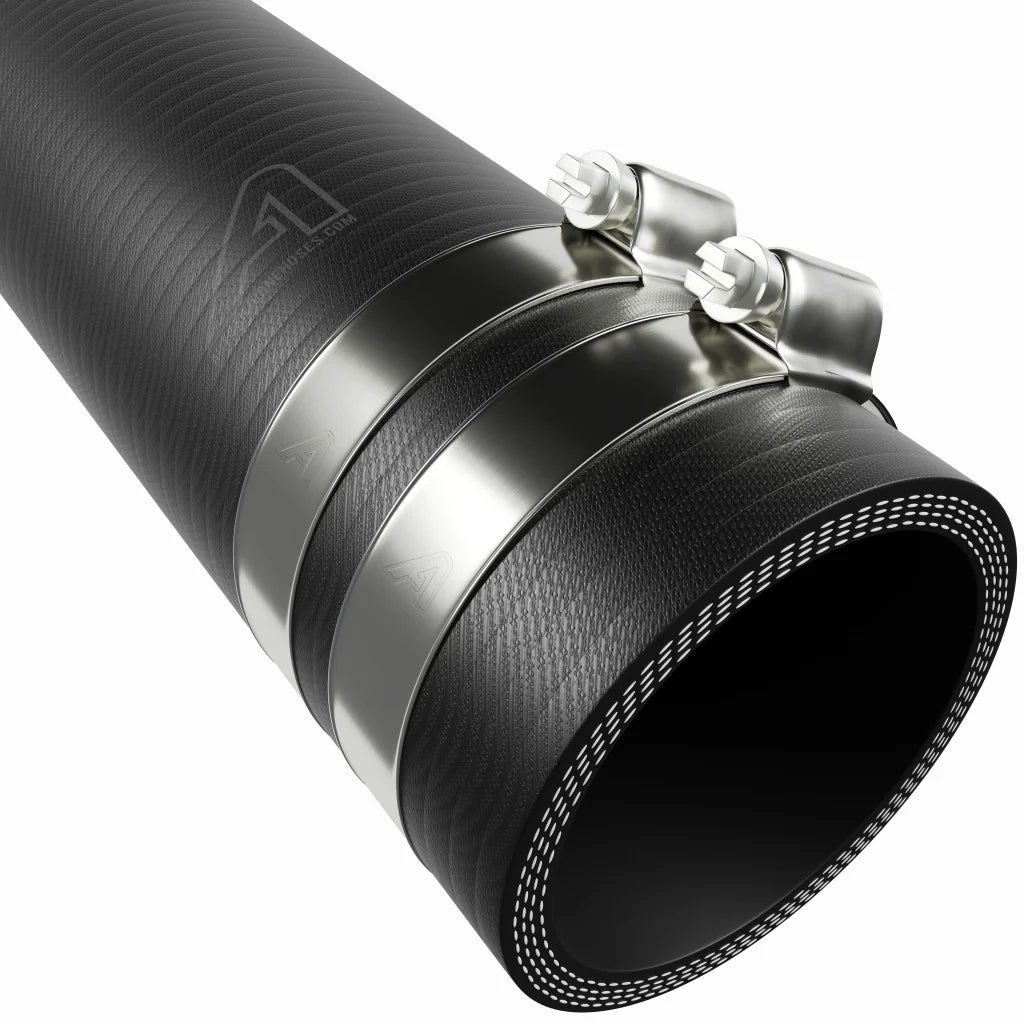

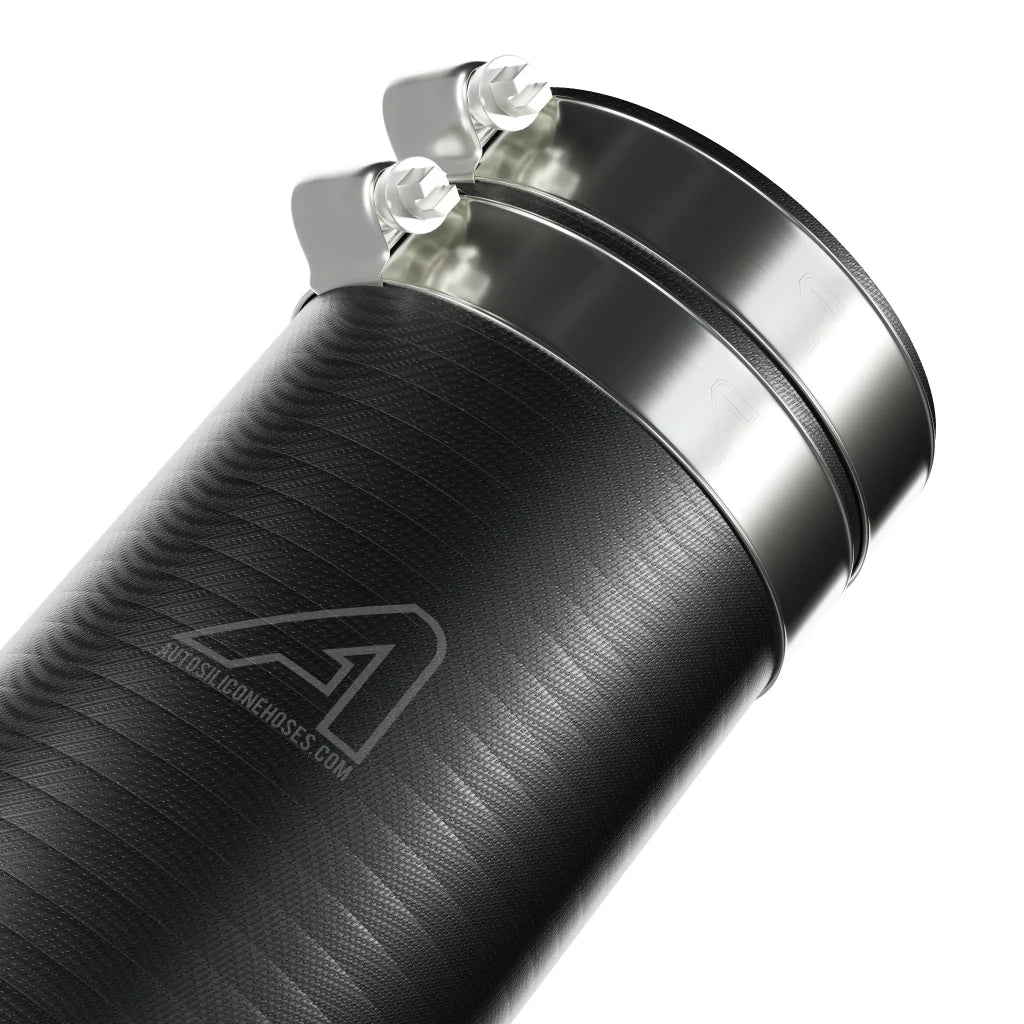

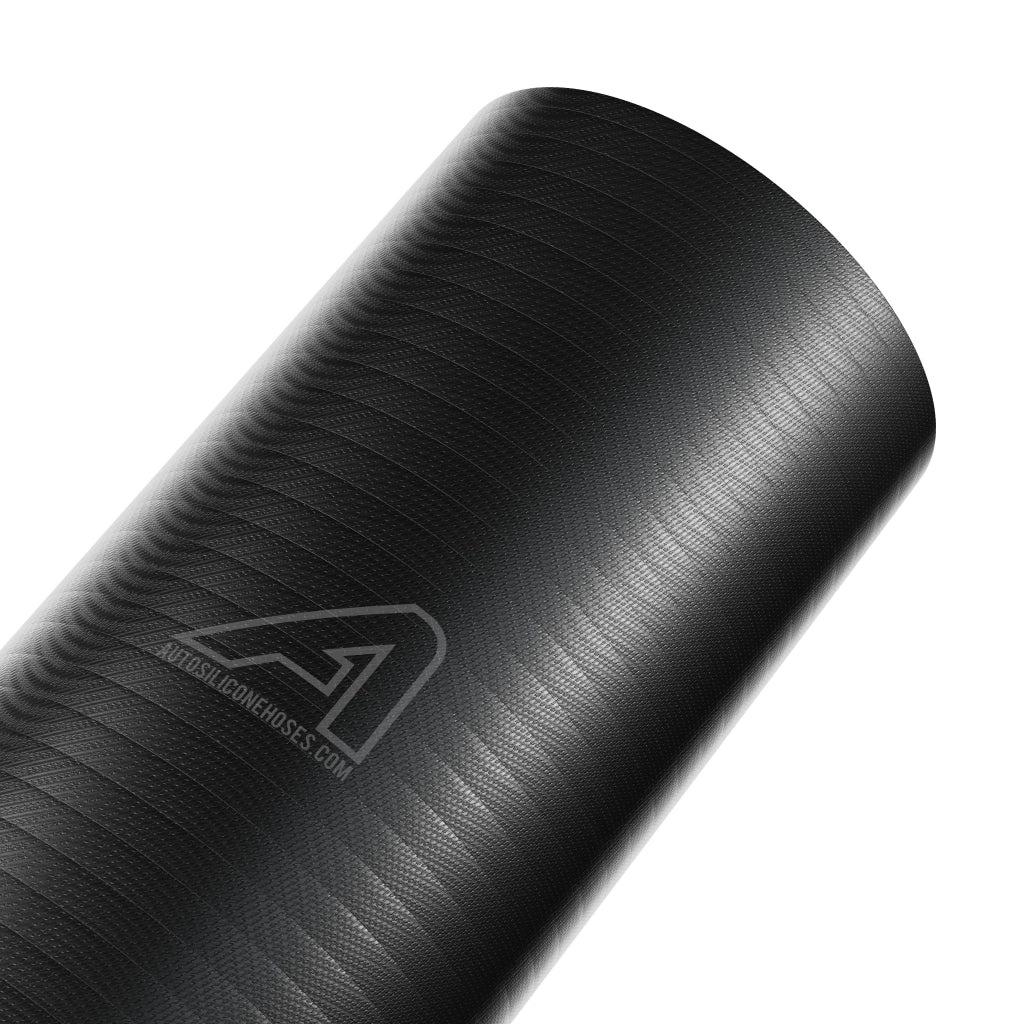

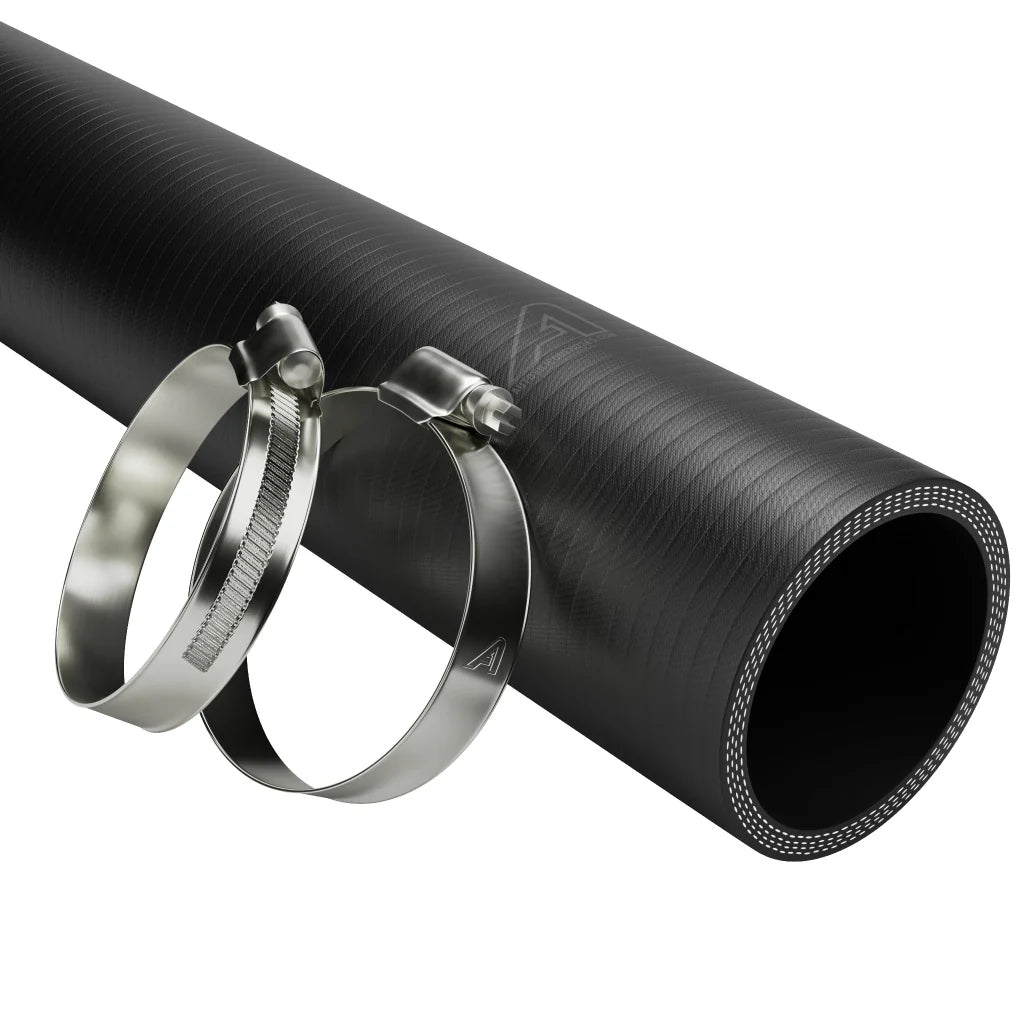

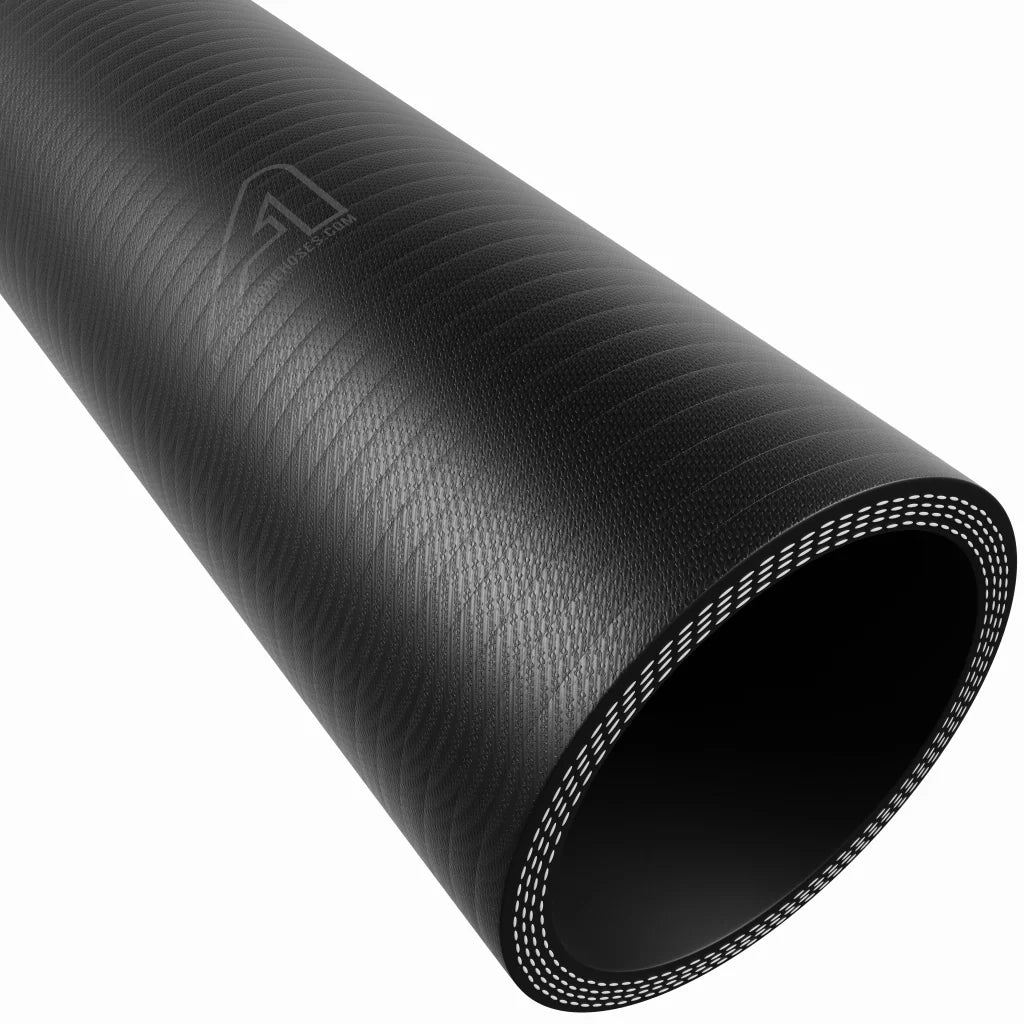

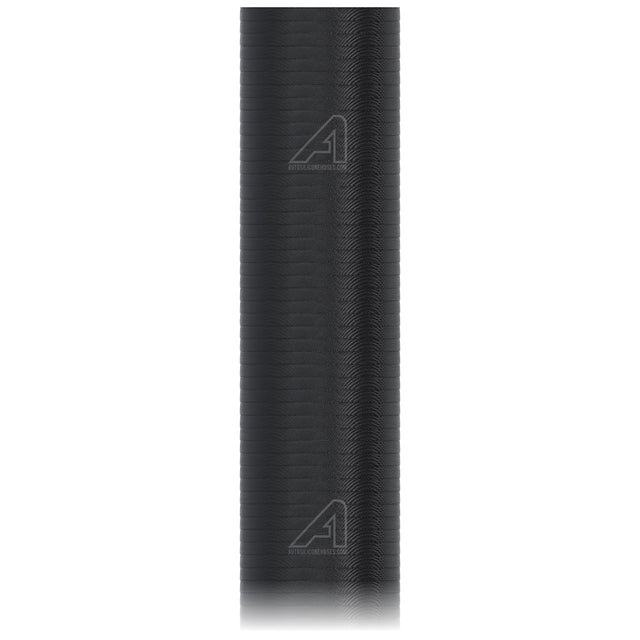

Silicone Fluoro Straight Wrapped Hose

Silicone Wrapped Fuel & Oil Hose is a high-performance hose engineered for use with fuel, oil, and petroleum-based products in motorsport, automotive, and industrial applications. Manufactured by AutoSiliconeHoses, this hose features a flourosilicone inner liner, polyester braid reinforcement, and a silicone cloth-wrapped outer layer for enhanced durability, flexibility, and heat resistance. With operating temperatures from -50°C to +250°C and tested to SAEJ20R6 standards, it provides a reliable and long-lasting solution for demanding fluid transfer systems.

Key Features:

• Material: Fluorosilicone inner liner, polyester braid reinforcement, and silicone cloth outer wrap.

• Internal Diameter Range: 13 mm to 51 mm.

• Wall Thickness: 4.5 mm to 5.5 mm depending on size.

• Working Pressure: 4.5 bar to 8.3 bar (varies by size).

• Burst Pressure: 13.5 bar to 27 bar minimum.

• Temperature Range: -50°C to +250°C continuous operation.

• Standard: SAEJ20R6 compliant.

• Brand: AutoSiliconeHoses performance silicone.

The Silicone Wrapped Fuel & Oil Hose combines multiple reinforcements to deliver strength, flexibility, and chemical resistance in critical applications. Its fluorosilicone inner bore ensures compatibility with fuel and oil products, while the polyester braiding provides stability and pressure resistance. The outer silicone cloth wrap enhances abrasion resistance, protects against external heat, and gives the hose a distinctive finish suitable for both performance and classic automotive projects. The hose maintains a 3:1 safety factor from working to burst pressure, ensuring reliable service under demanding conditions.

Applications include use in motorsport fuel systems, oil cooler lines, breather hoses, and industrial petroleum transfer tasks where reliability under heat and chemical exposure is essential. Distributed under the AutoSiliconeHoses brand, this wrapped fuel and oil hose delivers professional-grade performance, long-term durability, and a finish that suits both modern and classic installations.
