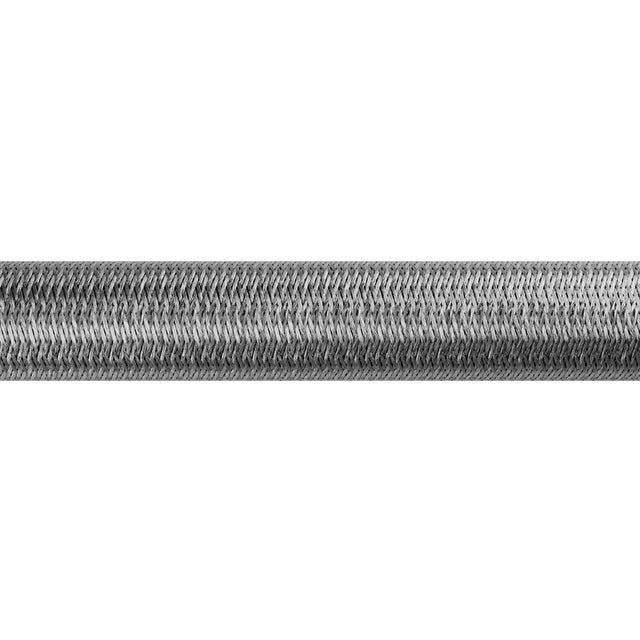

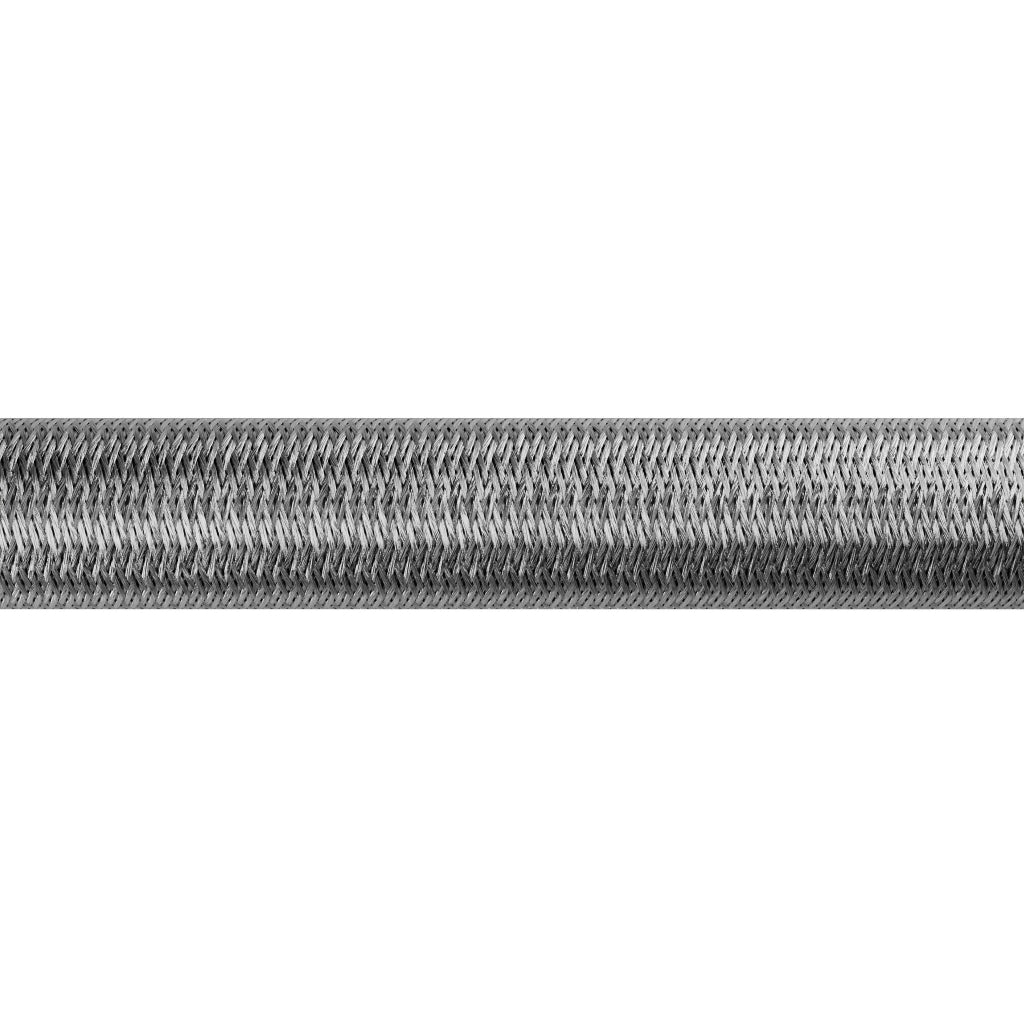

Rubber Stainless Steel Braid Fuel Hose

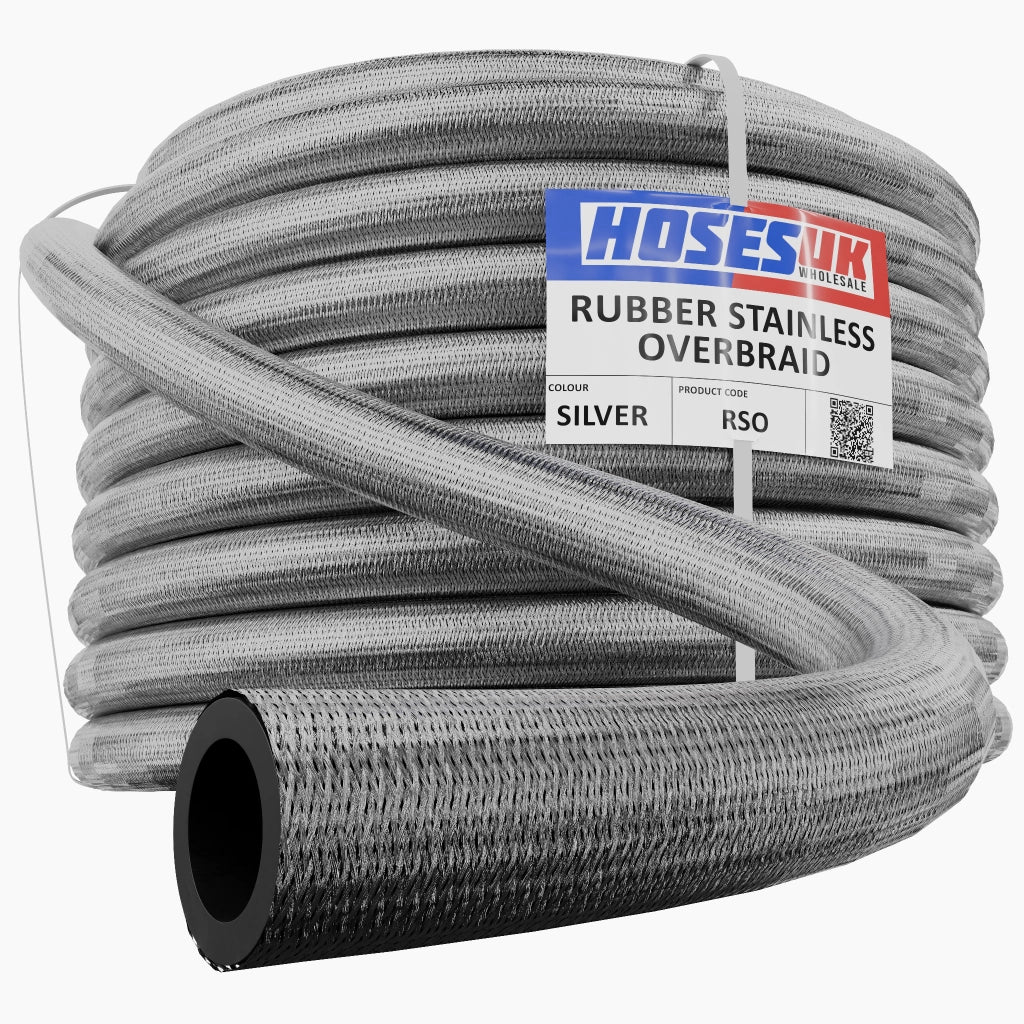

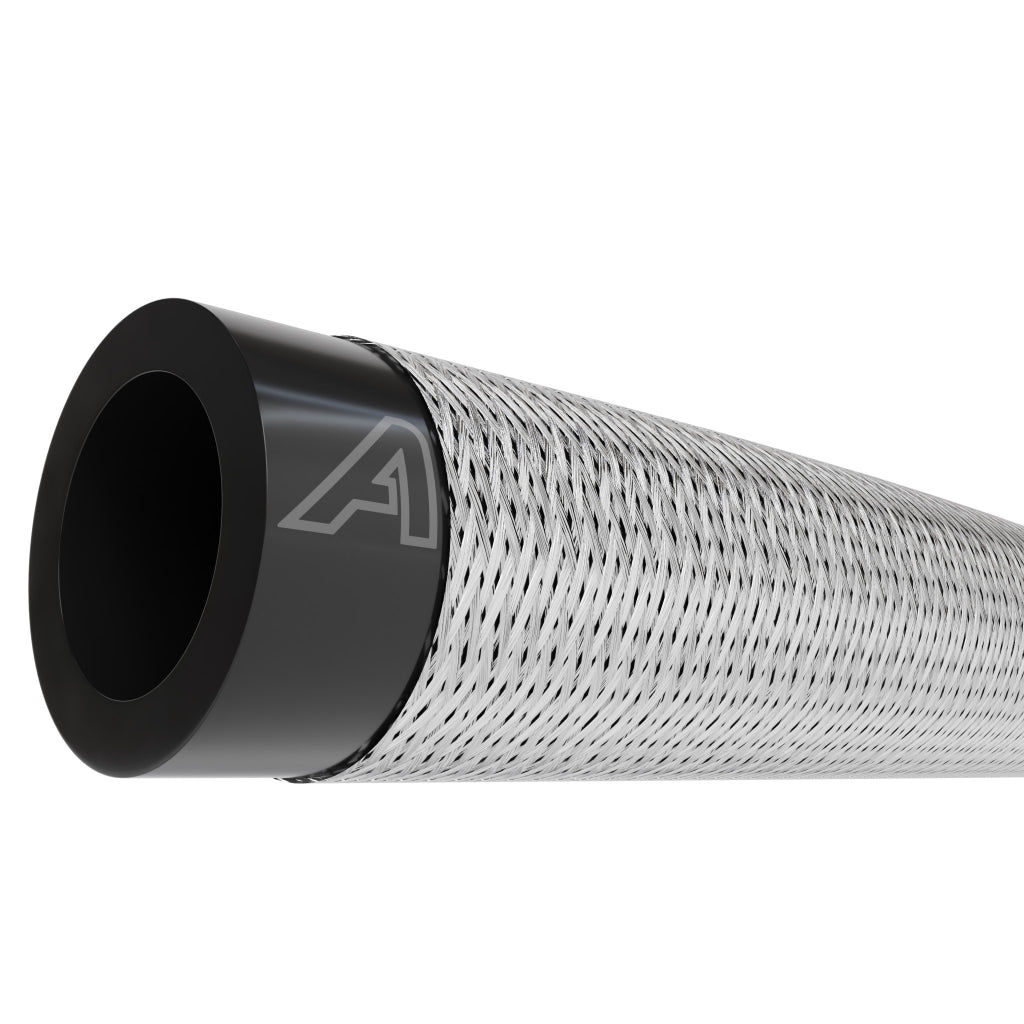

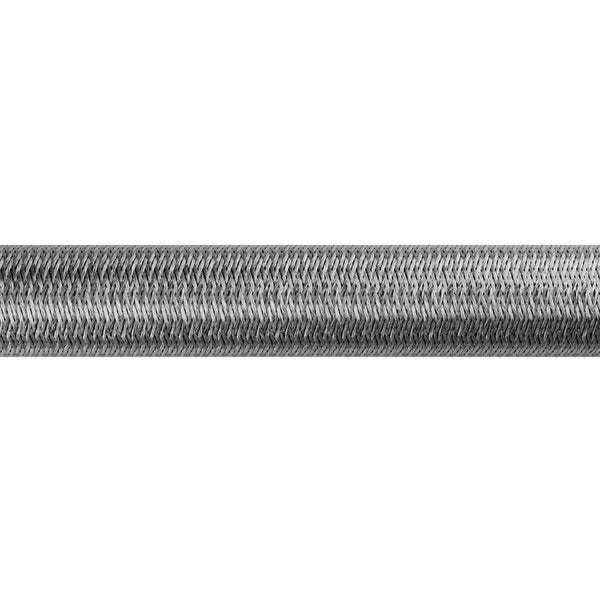

Rubber Stainless Steel Overbraid Hose is a heavy-duty, reinforced hose designed for fuel, oil, air, and hydraulic applications where strength, flexibility, and abrasion resistance are essential. Manufactured by HosesUK, this hose features a smooth black synthetic rubber inner tube, reinforced with high-tensile braided fibre, and protected by a stainless steel wire overbraid. The combination of reinforcement and outer steel braid ensures excellent pressure stability, crush resistance, and long service life in demanding environments. Built to SAE J1402 and BSAU110 standards, the hose operates between -40 °C and +93 °C (peaks to +100 °C) and delivers a reliable, professional-grade solution for industrial, automotive, and marine fluid handling systems.

Key Features:

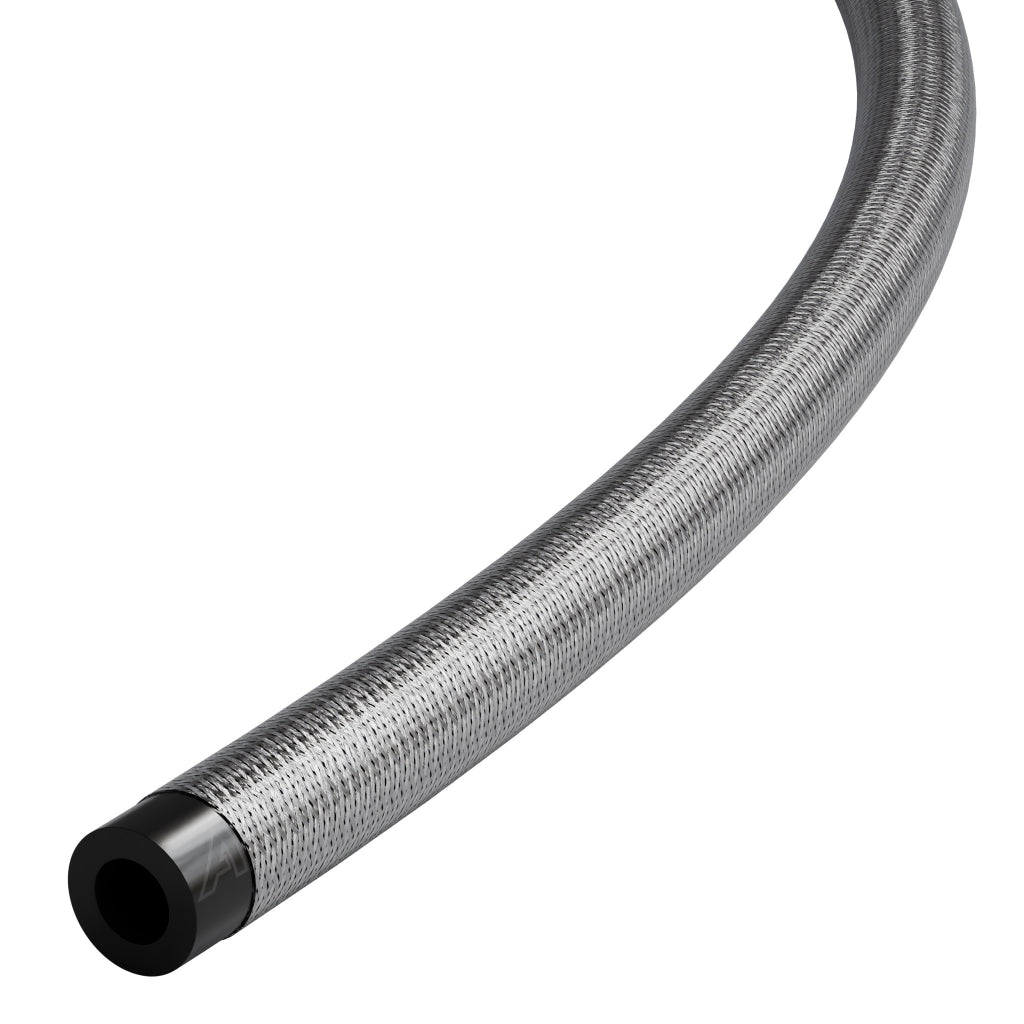

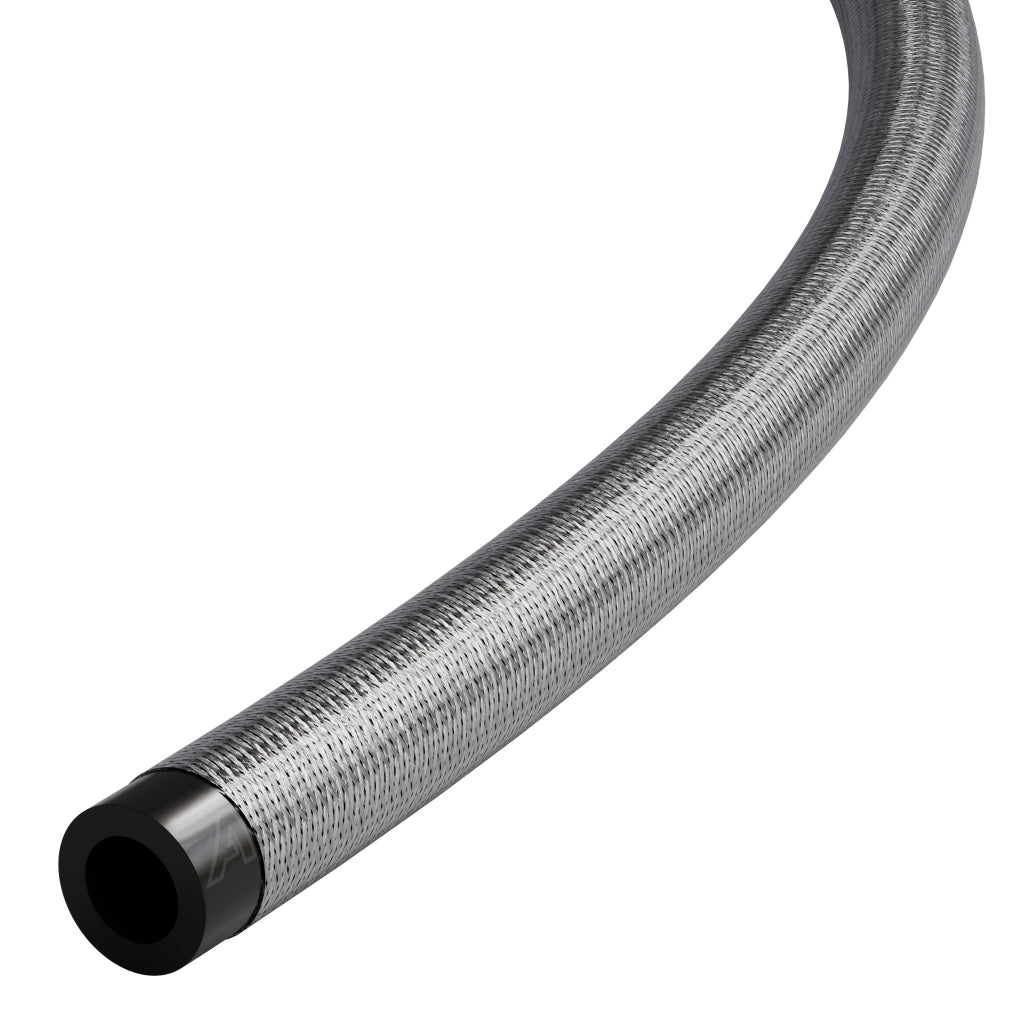

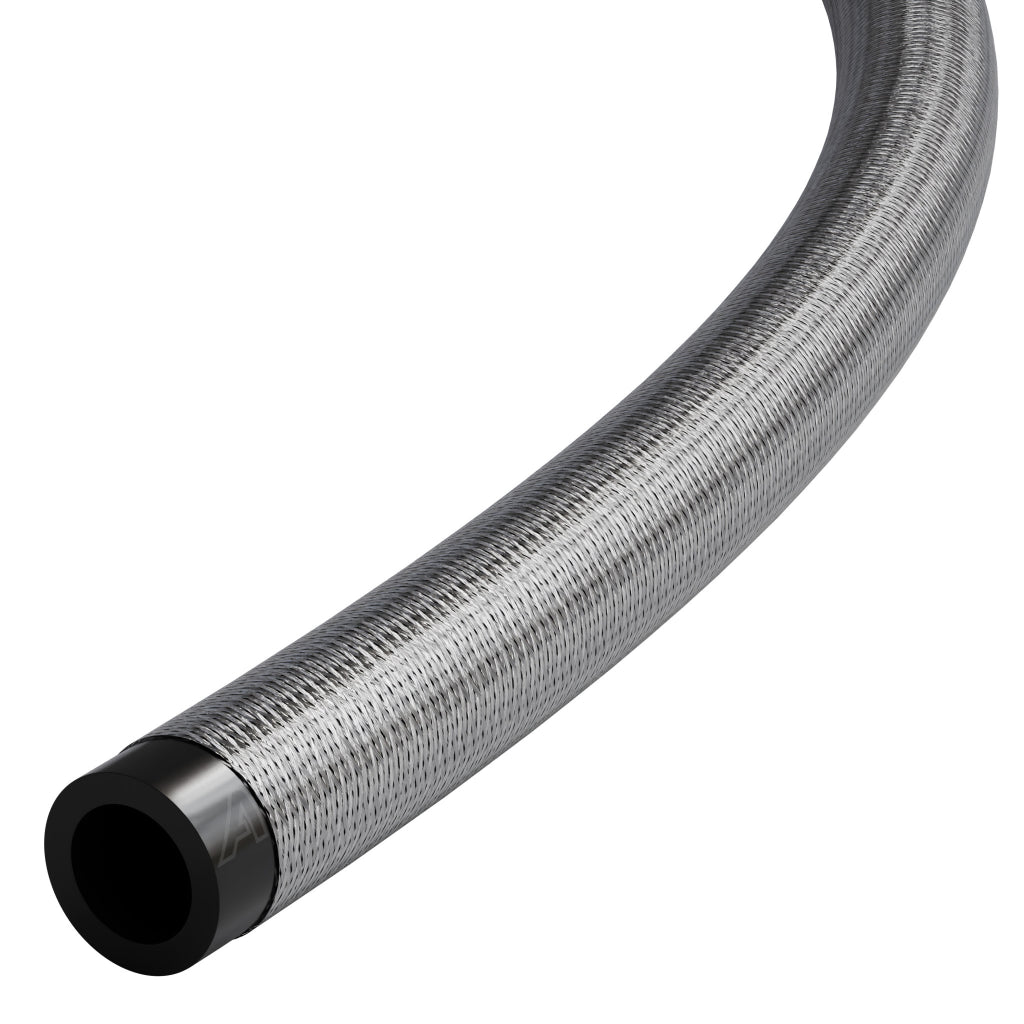

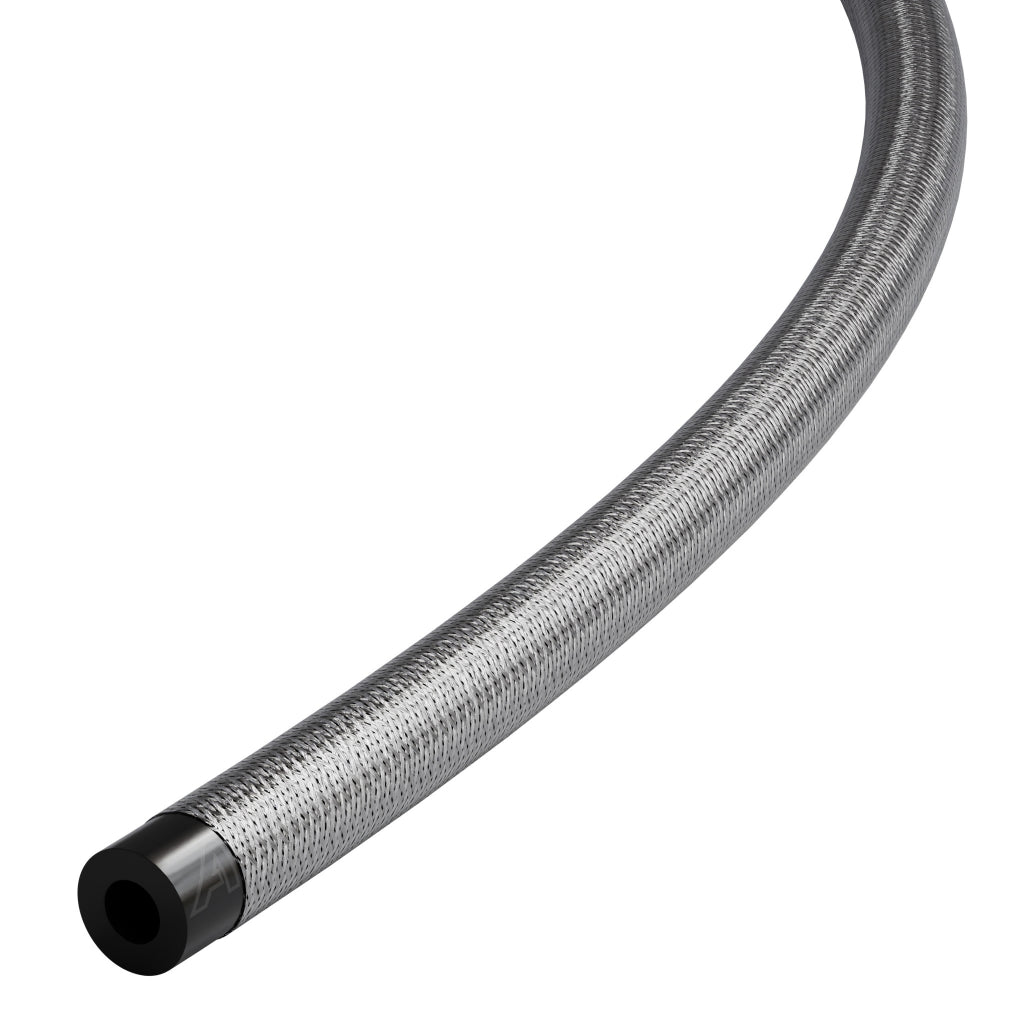

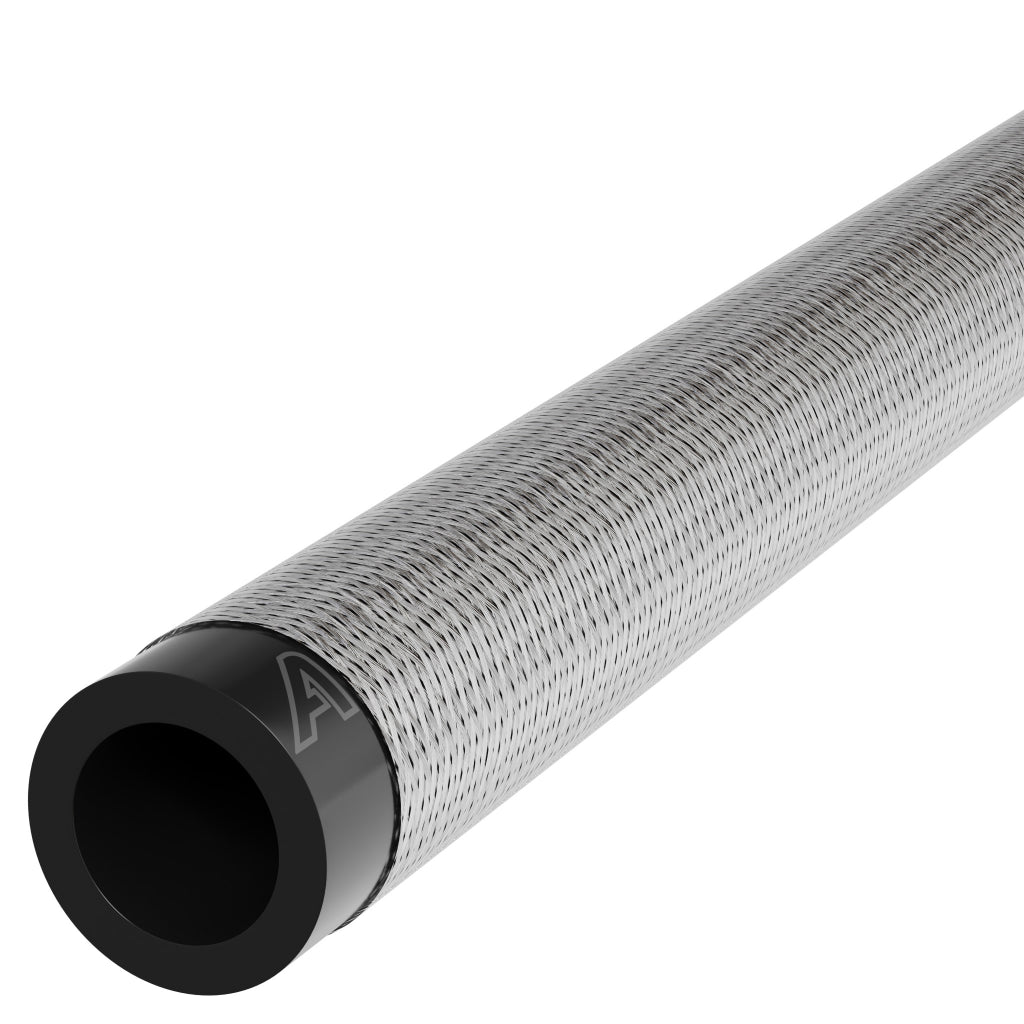

• Material: Smooth synthetic rubber inner tube with stainless steel overbraid.

• Reinforcement: High-tensile braided fibre with external stainless steel braid.

• Internal Diameter Range: 6 mm to 13 mm.

• Wall Thickness: 3.3 mm to 4 mm depending on size.

• Working Pressure: 15 bar across all sizes.

• Burst Pressure: 45 bar minimum.

• Bending Radius: 40 mm (6 mm ID) to 120 mm (13 mm ID).

• Operating Temperature: -40 °C to +93 °C continuous, +100 °C peak.

• Standard: SAE J1402 / BSAU110 compliant.

• Outer Protection: Stainless steel braid for abrasion and crush resistance.

The Rubber Stainless Steel Overbraid Hose combines a strong inner synthetic rubber lining with fibre reinforcement and a stainless steel braid to deliver superior strength and protection. The smooth bore ensures efficient fluid transfer, while the overbraid prevents damage from abrasion, impact, or external mechanical wear. With a consistent working pressure of 15 bar and a burst rating of 45 bar, the hose provides safe and reliable performance in medium-to-high pressure applications. Its flexible construction allows easy routing in confined spaces, while the stainless braid enhances durability and extends service life.

Applications include hydraulic return lines, fuel and oil transfer, compressed air delivery, and general industrial fluid handling where resistance to abrasion and crush damage is critical. Distributed under the HosesUK brand, the Rubber Stainless Steel Overbraid Hose is a robust and professional-grade choice for technicians, engineers, and mechanics requiring a strong, pressure-rated, and long-lasting hose solution that meets SAE J1402 and BSAU110 standards.
