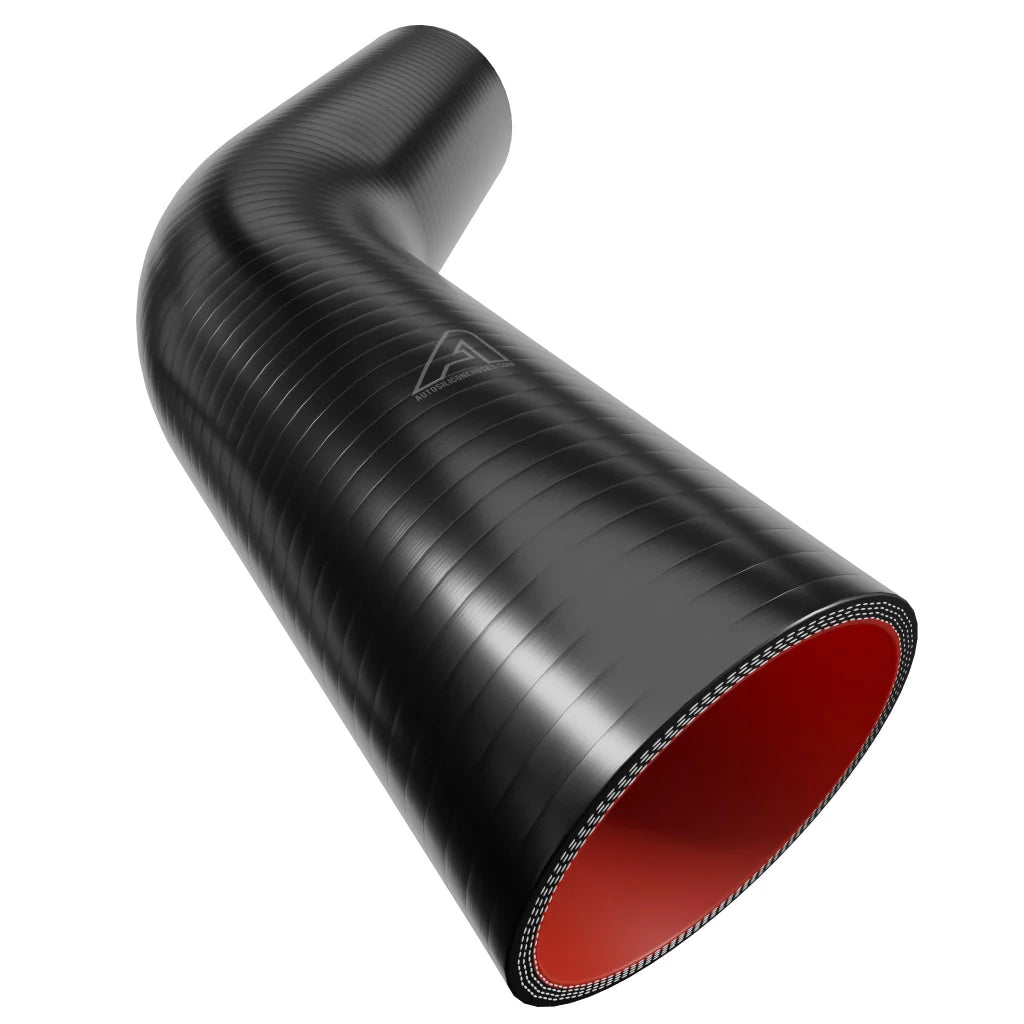

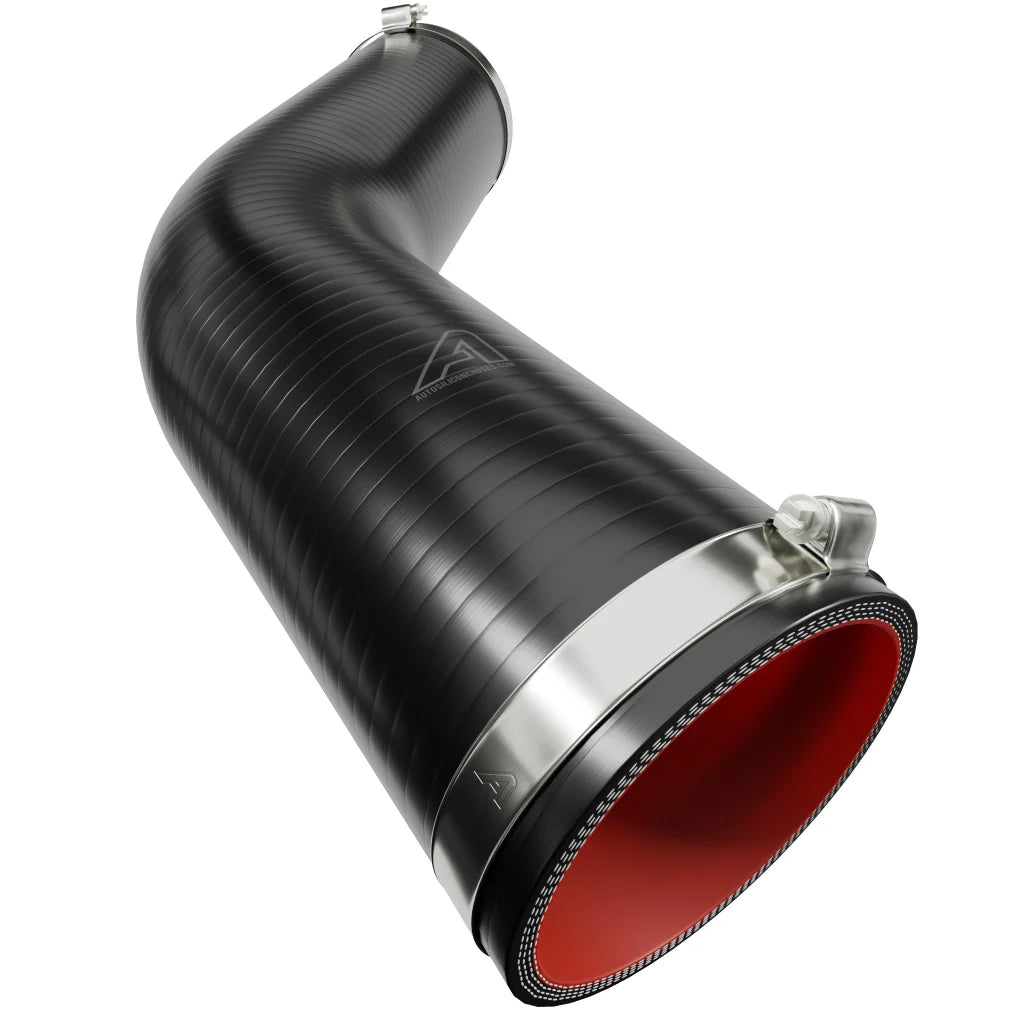

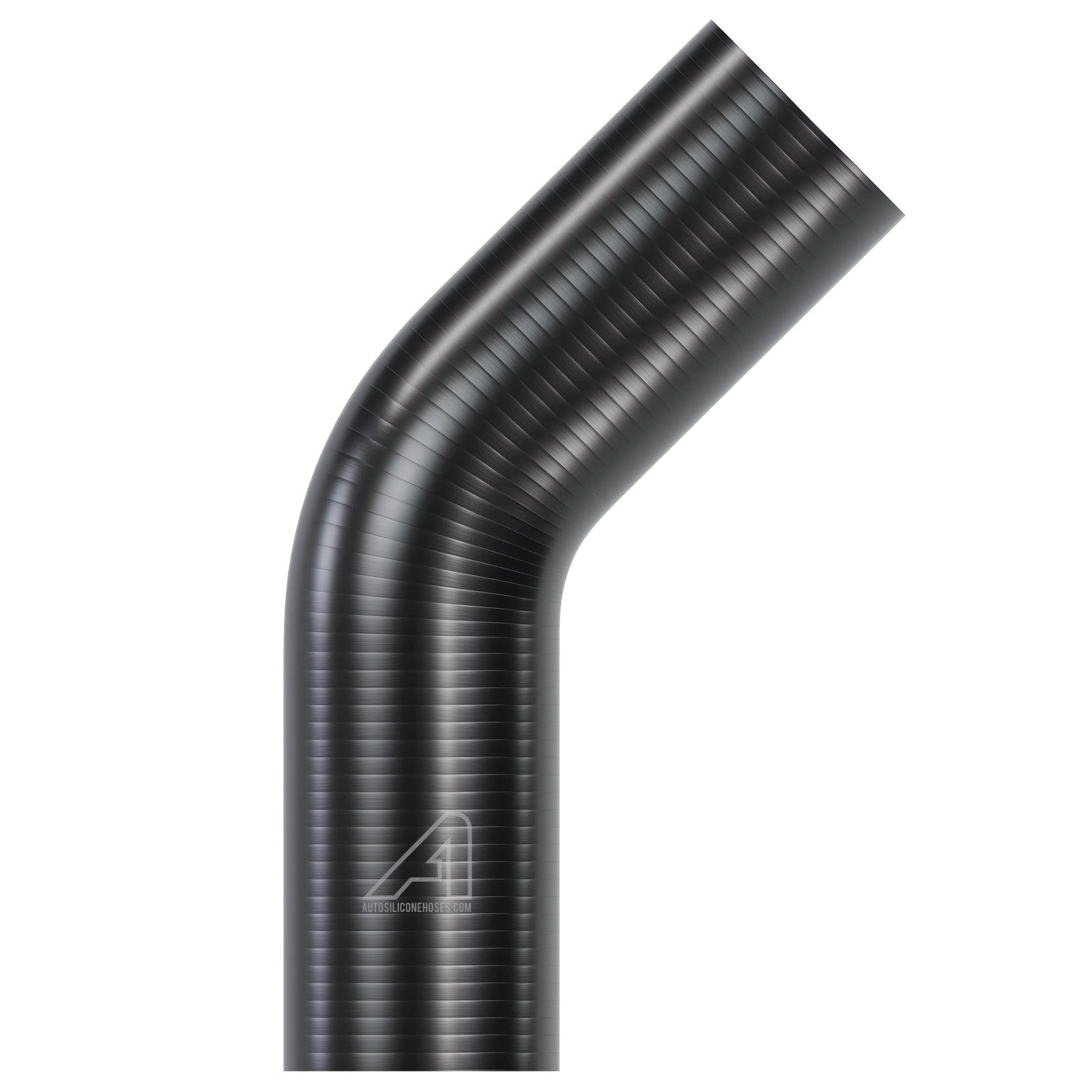

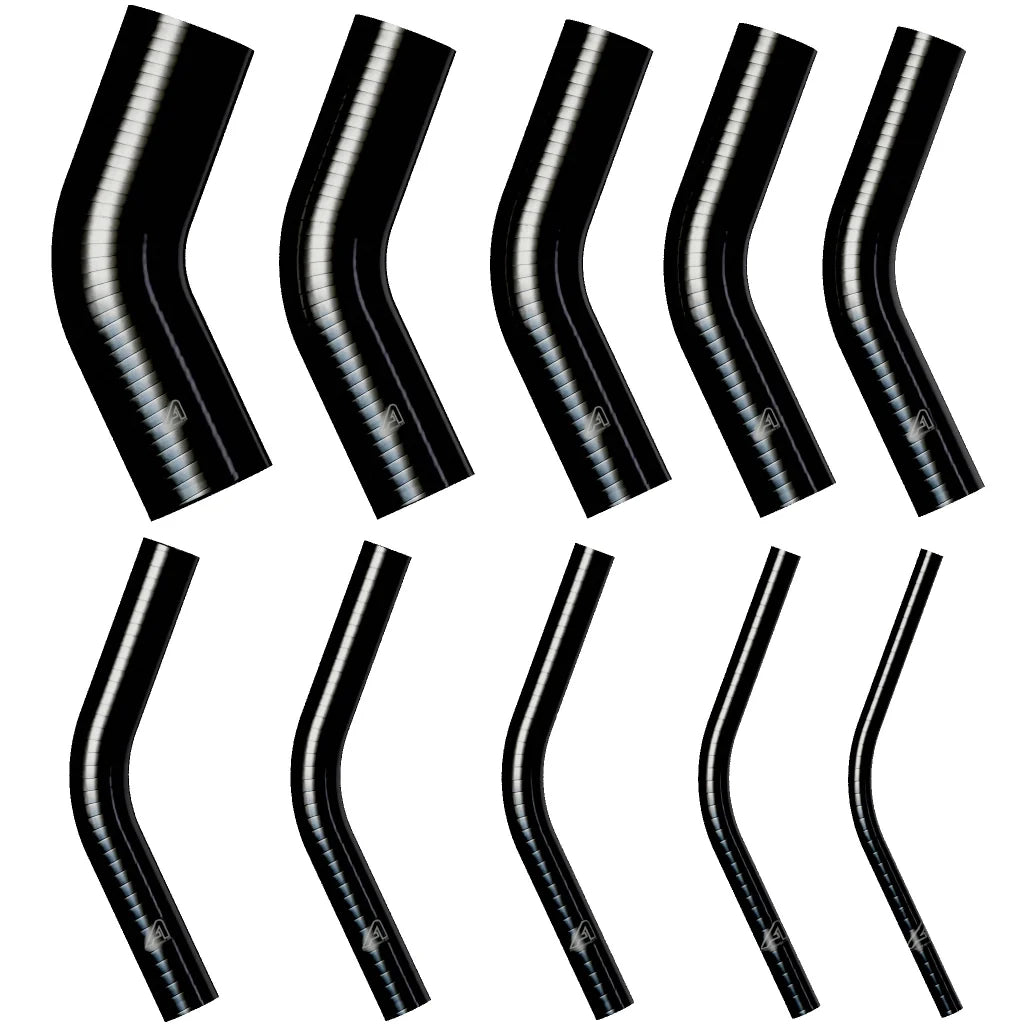

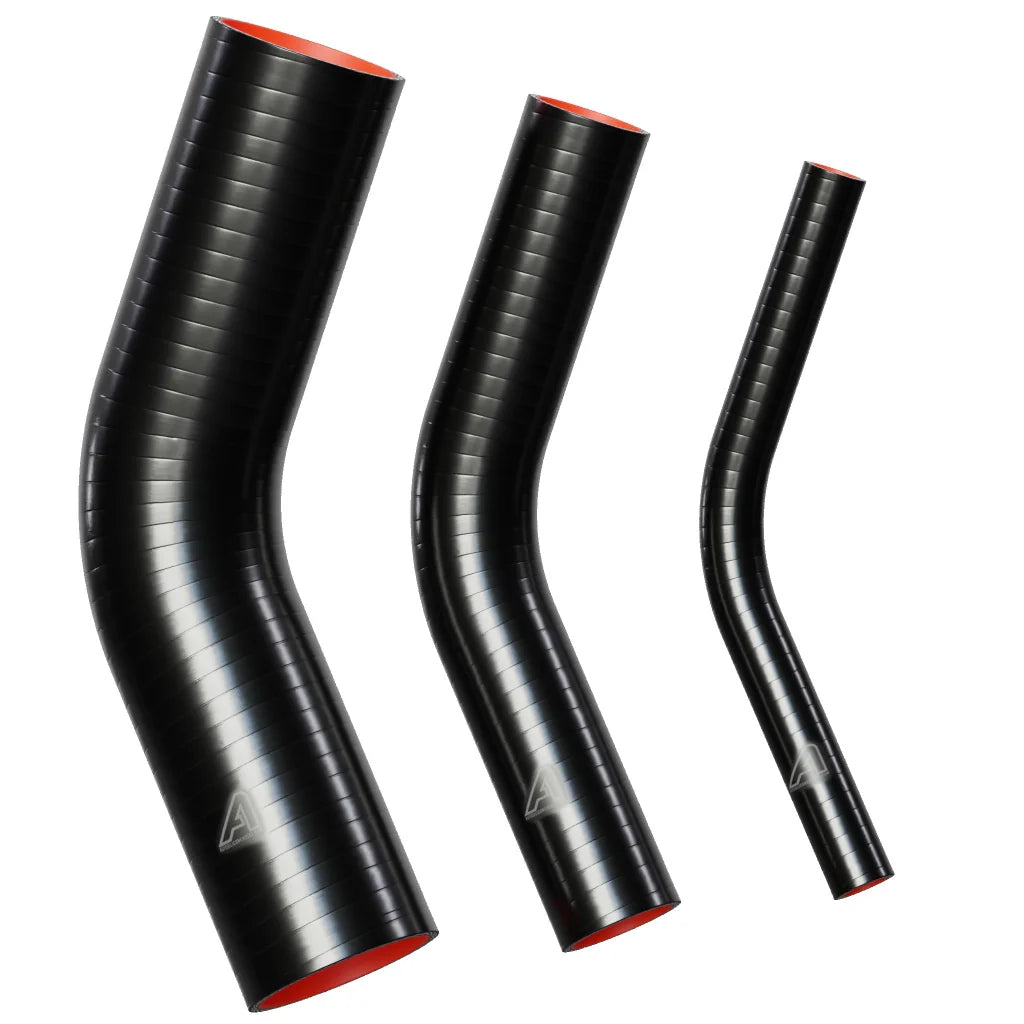

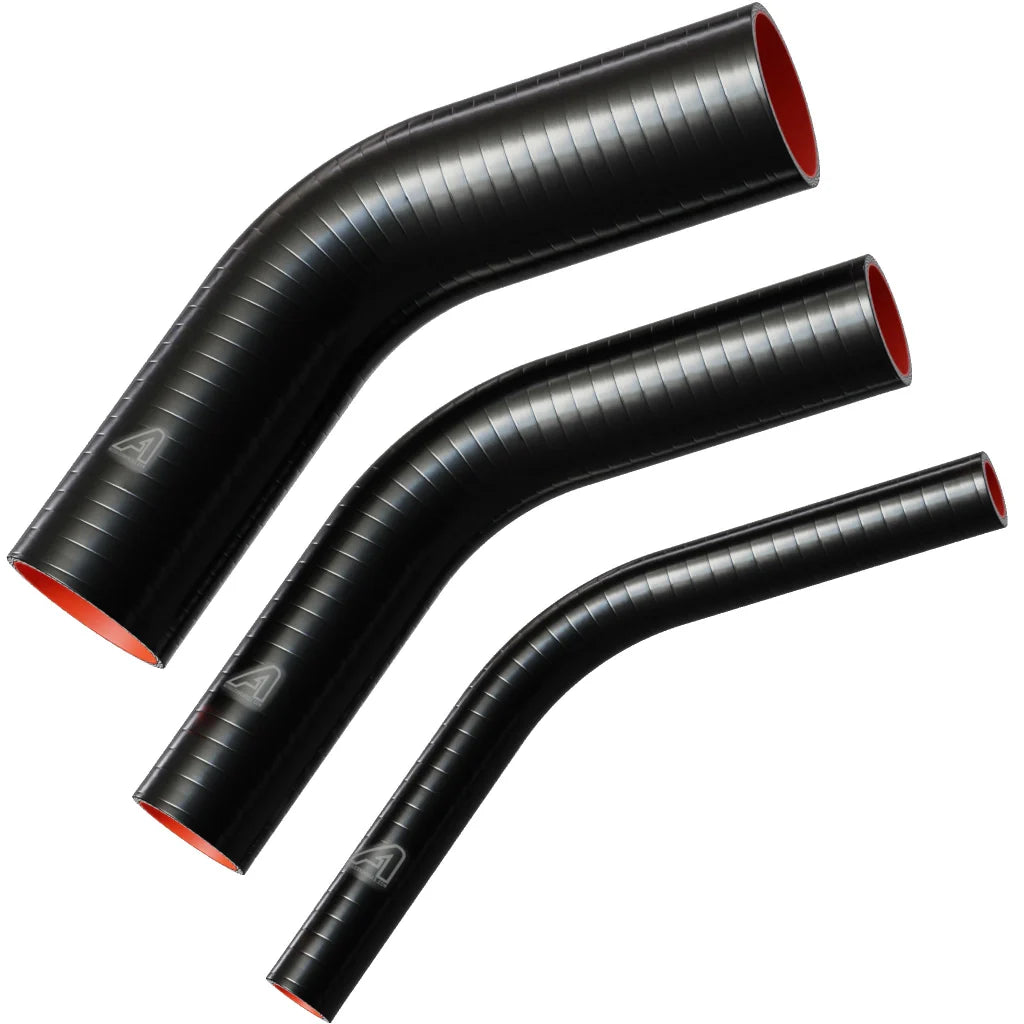

Silicone Fluoro 45 Degree Hose

Silicone 45 Degree Fuel & Oil Elbow is a high-performance connector hose designed for use with fuel, oil, and petroleum-based fluids in automotive, motorsport, and industrial systems. Manufactured by AutoSiliconeHoses, the elbow is built with a fluorosilicone inner liner for chemical resistance, reinforced with multiple layers of polyester braid for pressure stability, and finished with a durable silicone outer layer for heat and abrasion protection. With a 45° angle and 150 mm leg length, it allows smooth directional changes in tight spaces while maintaining strength and flexibility. Operating between -50°C and +250°C and tested to SAEJ30R6 standards, this hose delivers long-lasting reliability in extreme environments.

Key Features:

• Material: Fluorosilicone inner liner, polyester braid reinforcement, silicone outer cover.

• Angle: 45° elbow with 150 mm leg length.

• Internal Diameter Range: 6.5 mm to 102 mm.

• Wall Thickness: 4.5 mm to 5.5 mm depending on size.

• Working Pressure: 2.8 bar to 12.33 bar (varies by size).

• Burst Pressure: 8.5 bar to 37 bar minimum.

• Bending Radius: 16 mm (6.5 mm ID) to 70 mm (102 mm ID).

• Temperature Range: -50°C to +250°C continuous.

• Standard: SAEJ30R6 compliant.

• Brand: AutoSiliconeHoses performance silicone.

The Silicone 45 Degree Fuel & Oil Elbow provides strength, flexibility, and chemical resistance for demanding fuel and oil system routing. Its fluorosilicone lining prevents degradation from hydrocarbons, while the reinforced construction ensures reliability under boost or vacuum conditions. The angled design allows efficient hose routing in confined engine bays or industrial layouts, reducing stress on pipework and minimising turbulence. With a 3:1 safety factor from working to burst pressure, the hose is built for secure and dependable service.

Applications include fuel and oil line connections, breather and catch can systems, motorsport performance upgrades, and industrial fluid handling. Distributed under the AutoSiliconeHoses brand, the Silicone 45 Degree Fuel & Oil Elbow is a professional-grade solution for engineers, tuners, and technicians requiring a durable, heat-resistant, and chemically compatible silicone hose component.
