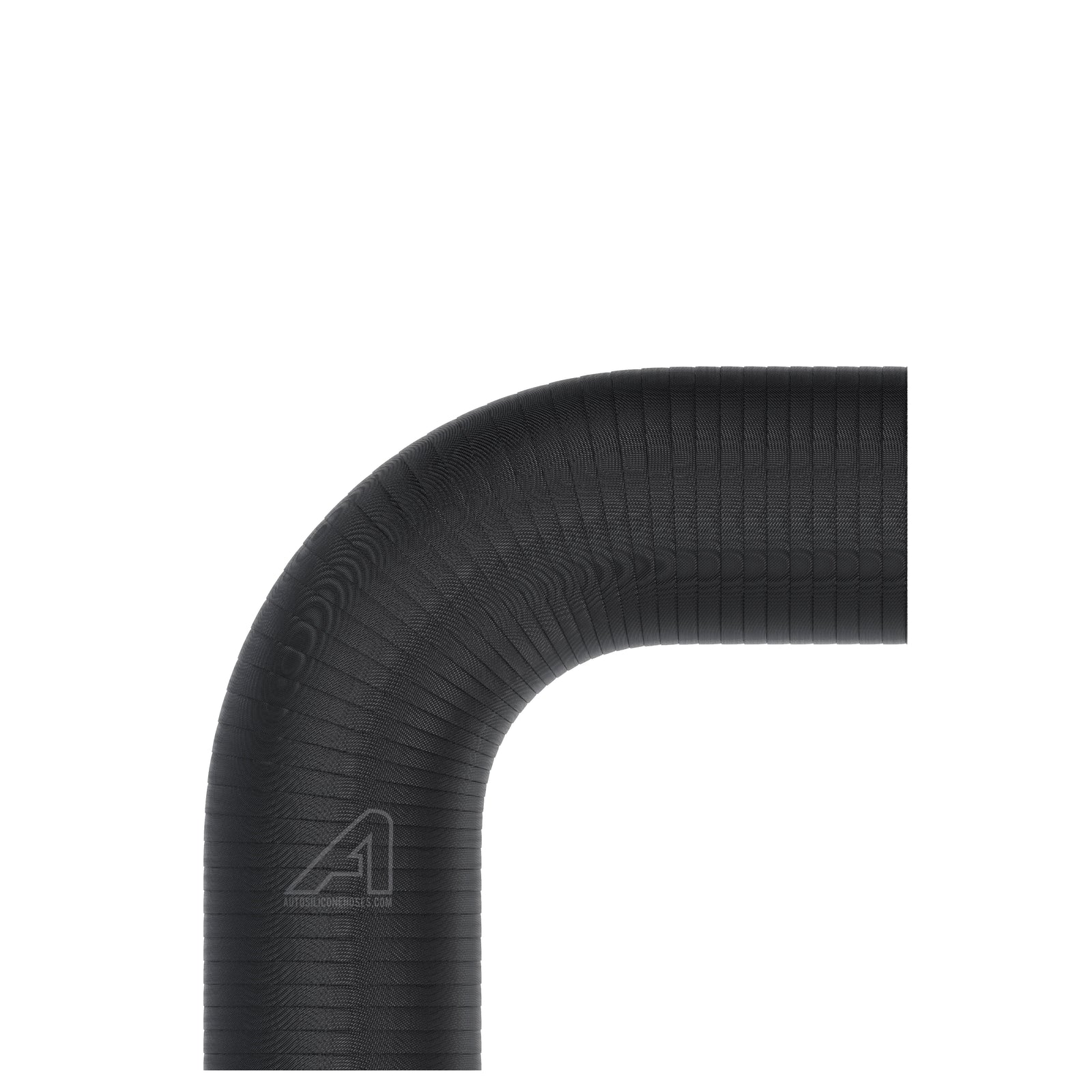

Silicone Fluoro 90 Degree Wrapped Hose

Silicone Wrapped 90 Degree Elbow is a reinforced connector hose designed for use with fuel, oil, and petroleum-based fluids in automotive, motorsport, and industrial applications. Manufactured by AutoSiliconeHoses, this elbow features a fluorosilicone inner liner for fuel and oil resistance, fine mesh polyester yarn reinforcement for pressure stability, and a wrapped VMQ silicone outer layer for enhanced abrasion resistance and a classic finish. The 90° bend with 150 mm leg length ensures secure installation in confined spaces where tight directional changes are required. Built to SAEJ20R6 standards, it operates between -60°C and +180°C (peak +200°C), delivering long-lasting reliability under harsh conditions.

Key Features:

• Material: Fluorosilicone inner liner, polyester braid reinforcement, wrapped VMQ silicone outer cover.

• Angle: 90° elbow with 150 mm leg length.

• Internal Diameter Range: 6.5 mm to 102 mm.

• Wall Thickness: 4.5 mm to 5.5 mm depending on size.

• Working Pressure: 2.8 bar to 12.33 bar (varies by size).

• Burst Pressure: 8.5 bar to 37 bar minimum.

• Bending Radius: 16 mm (6.5 mm ID) to 70 mm (102 mm ID).

• Temperature Range: -60°C to +180°C continuous; +200°C peak.

• Standard: SAEJ20R6 compliant.

• Brand: AutoSiliconeHoses performance silicone.

The Silicone Wrapped 90 Degree Elbow combines flexibility and durability for demanding fuel and oil transfer systems. The fluorosilicone lining protects against hydrocarbon degradation, while the polyester reinforcement maintains pressure stability under vacuum or boost conditions. The wrapped silicone cloth exterior offers extra abrasion resistance and a distinctive finish suited to both modern performance applications and classic vehicle restorations. Its 90° bend design allows tight routing in engine bays and confined spaces without compromising hose integrity or flow efficiency.

Applications include fuel and oil lines, breather connections, catch can systems, and performance upgrades in motorsport and industrial environments. Distributed under the AutoSiliconeHoses brand, the Silicone Wrapped 90 Degree Elbow delivers heat resistance, chemical compatibility, and long-term reliability for engineers, tuners, and enthusiasts seeking reinforced silicone hose components.
