Silicone Fluoro 90 Degree Hose

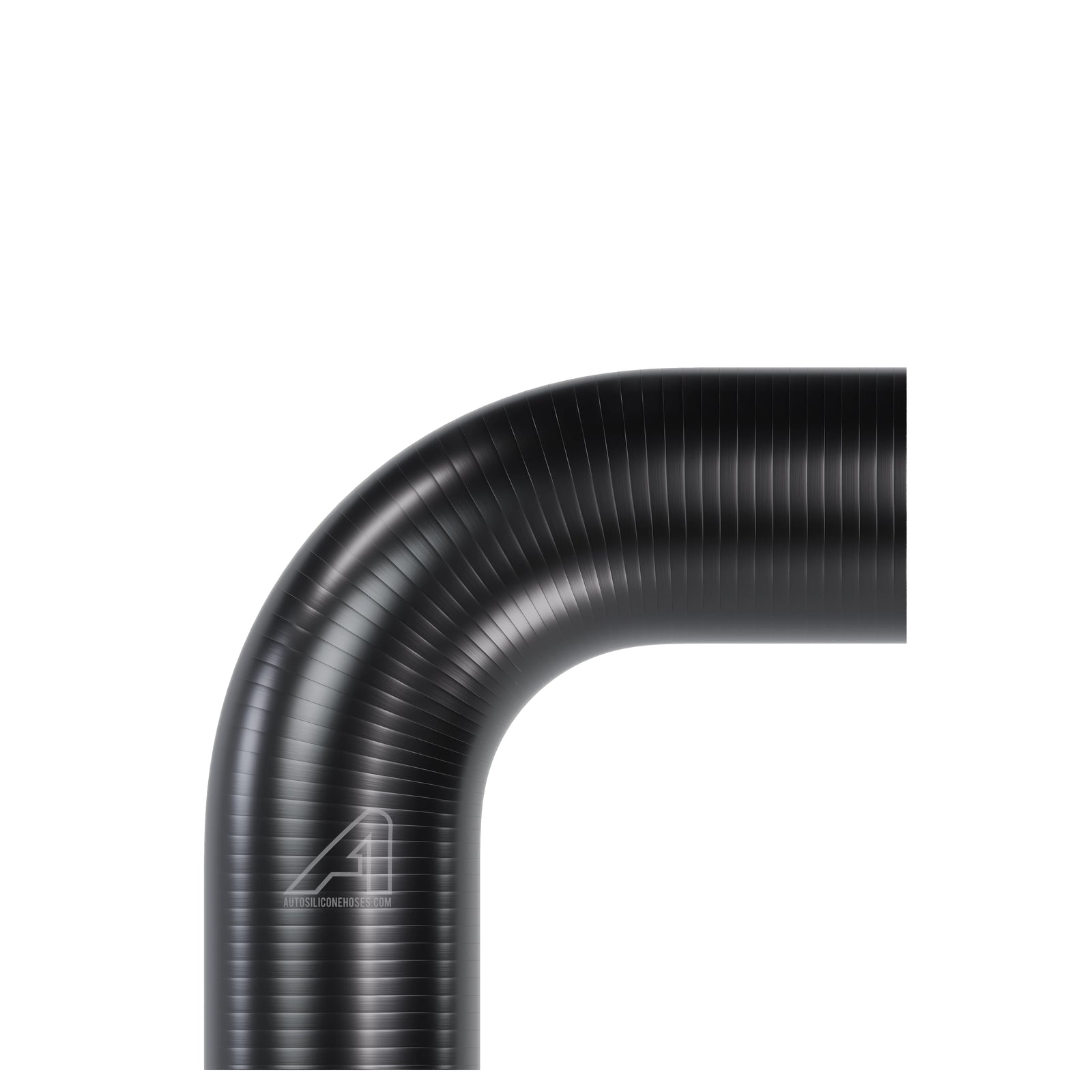

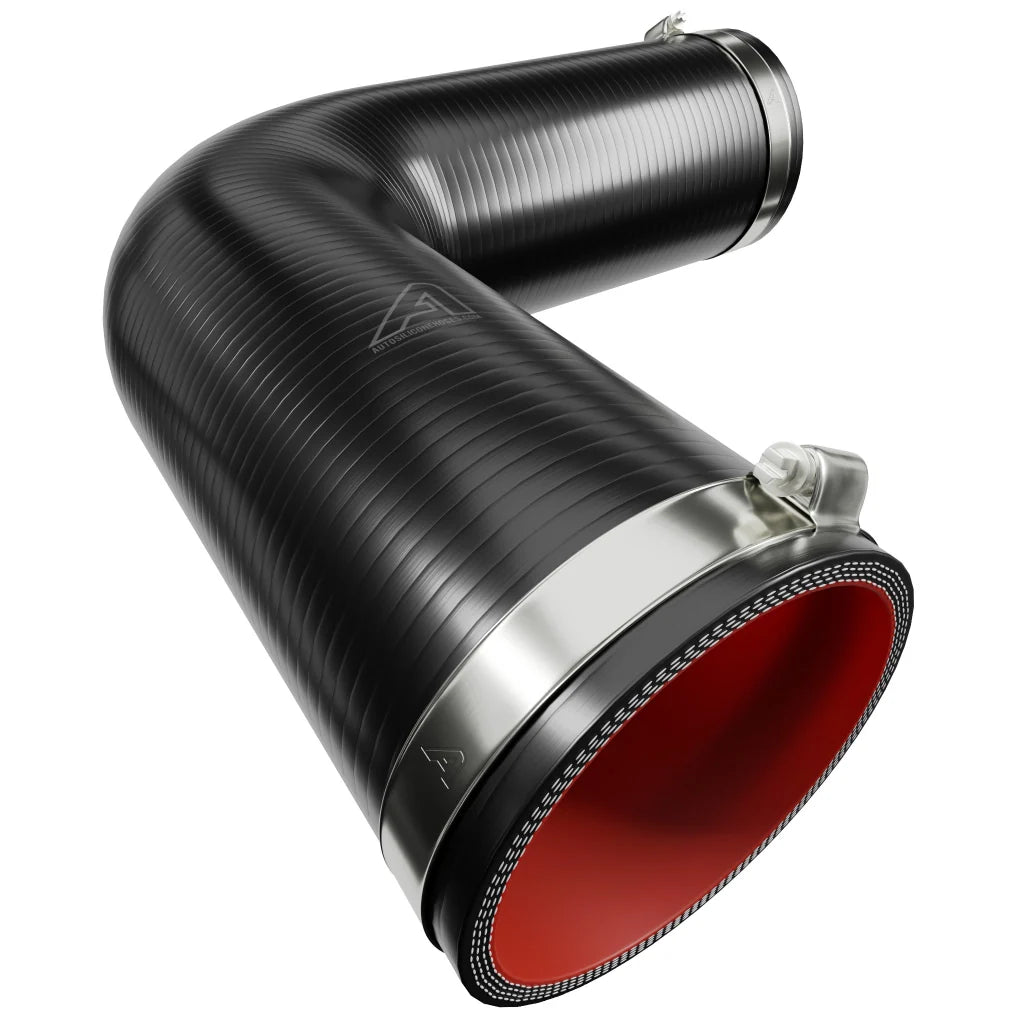

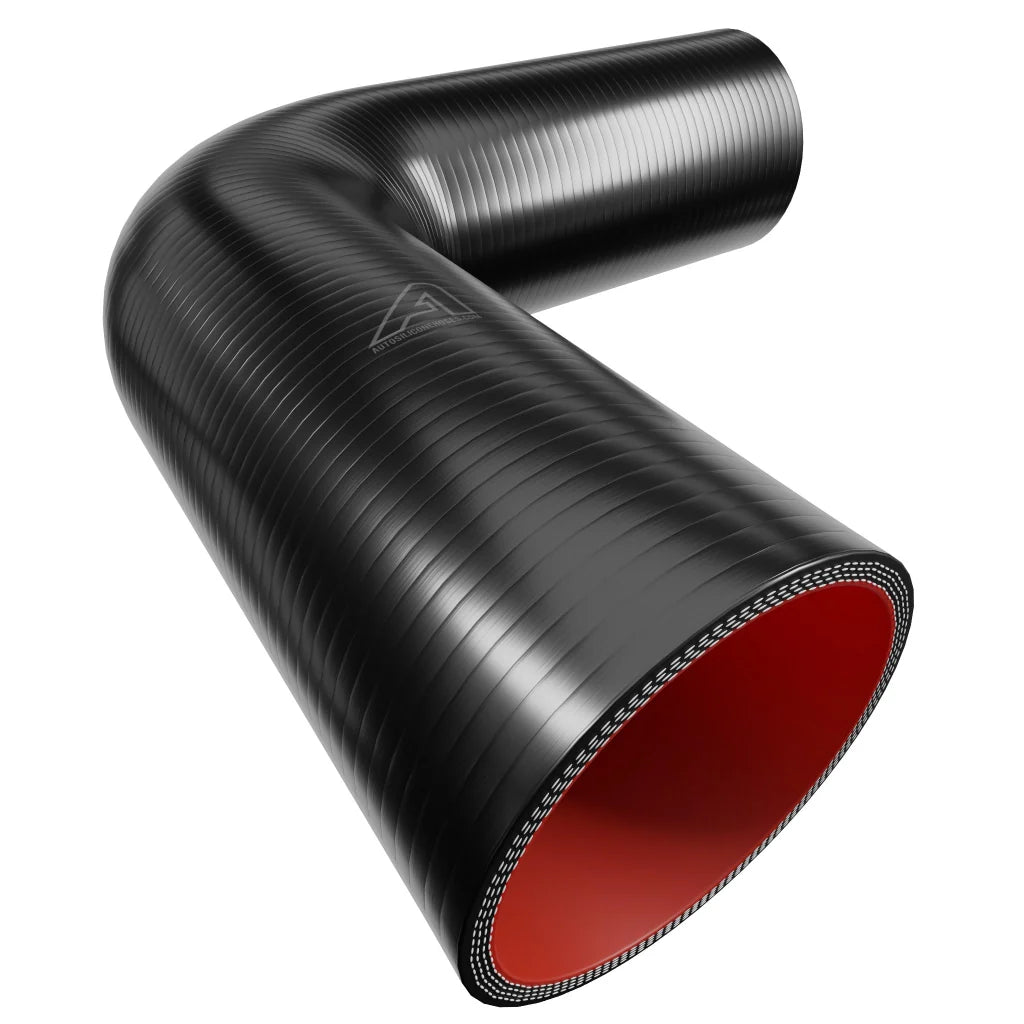

Silicone 90 Degree Fuel & Oil Elbow is a high-performance hose designed for handling fuel, oil, and petroleum-based fluids in automotive, motorsport, and industrial applications. Manufactured by AutoSiliconeHoses, this elbow features a fluorosilicone inner liner for excellent chemical resistance, reinforced with multiple layers of polyester braid for strength and pressure stability, and finished with a durable silicone outer cover for added heat and abrasion resistance. The 90° bend with 150 mm leg length provides efficient routing in confined spaces while maintaining flexibility and durability. Built to SAEJ30R6 standards, it operates between -50°C and +250°C, delivering reliability in the most demanding conditions.

Key Features:

• Material: Fluorosilicone inner liner, polyester braid reinforcement, silicone outer cover.

• Angle: 90° elbow with 150 mm leg length.

• Internal Diameter Range: 6.5 mm to 102 mm.

• Wall Thickness: 4.5 mm to 5.5 mm depending on size.

• Working Pressure: 2.8 bar to 12.33 bar (varies by size).

• Burst Pressure: 8.5 bar to 37 bar minimum.

• Bending Radius: 16 mm (6.5 mm ID) to 70 mm (102 mm ID).

• Temperature Range: -50°C to +250°C continuous.

• Standard: SAEJ30R6 compliant.

• Brand: AutoSiliconeHoses performance silicone.

The Silicone 90 Degree Fuel & Oil Elbow offers a reliable solution for routing fluid lines where a tight bend is required without compromising strength. The fluorosilicone lining protects against degradation from fuels and oils, while the reinforced polyester braids ensure stability under both suction and pressure. Its smooth internal bore supports efficient fluid flow with minimal turbulence, while the 90° design simplifies installation in compact spaces. With a safety factor of 3:1 from working to burst pressure, the hose is engineered for durability and dependable performance.

Applications include fuel and oil system connections, breather and catch can routing, motorsport upgrades, and industrial petroleum handling. Distributed under the AutoSiliconeHoses brand, the Silicone 90 Degree Fuel & Oil Elbow provides a durable, heat-resistant, and chemically compatible solution for engineers and performance specialists requiring premium-grade silicone components.
